Summary of Contents for LumiRing ICON-lite

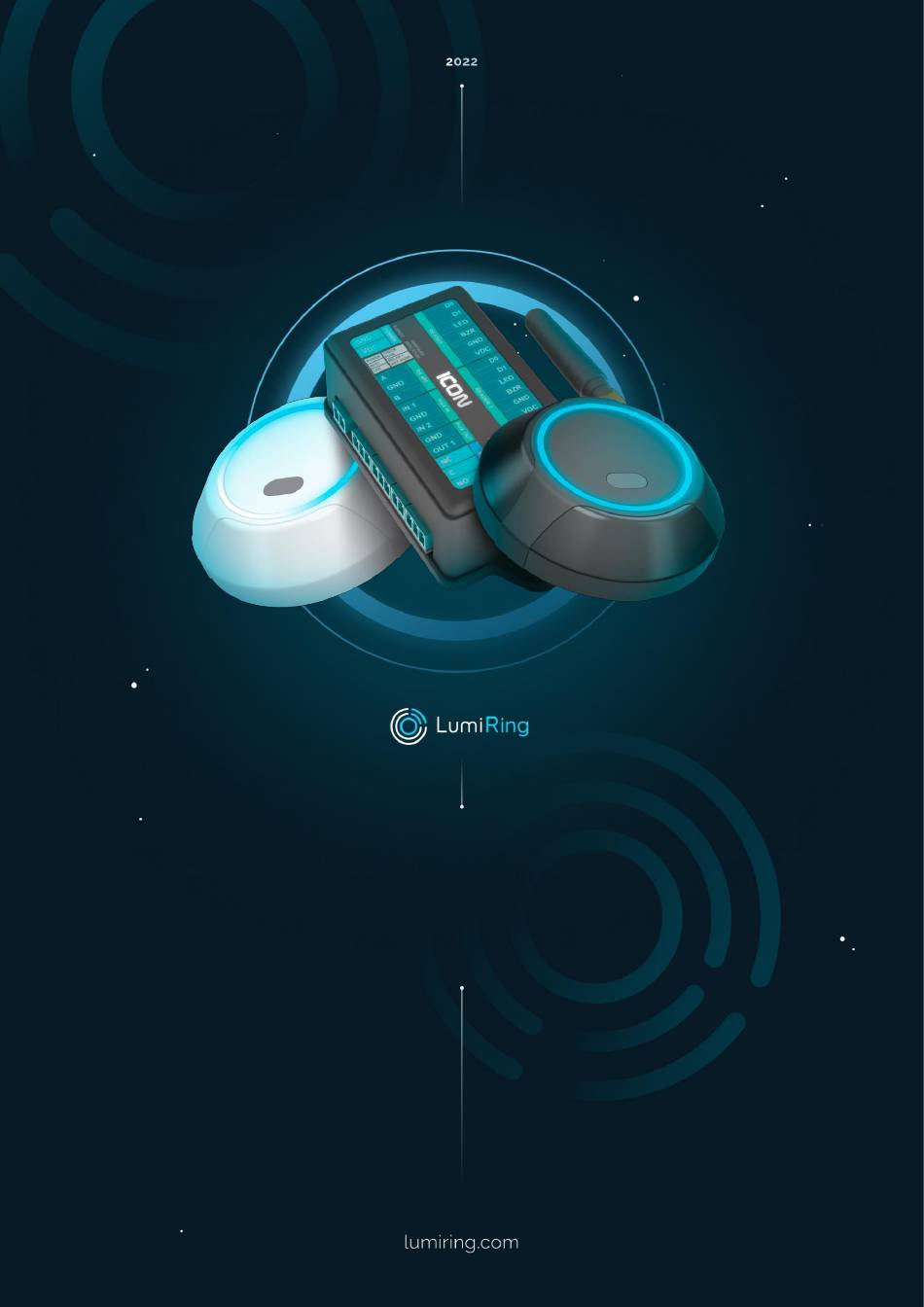

- Page 1 ICON-lite 2 Doors Network Access controller Wi-Fi supported Manual...
-
Page 2: Table Of Contents
One door. Two directions. Wet mode. ______________12 Two doors. One direction. Wet mode. ______________12 WEB-BASED INTERFACE ___________________________ 13 Main network settings __________________________ 13 Local Wi-Fi Access point settings ________________ 14 Cloud Connection settings ______________________ 14 Maintenance __________________________________ 15 Security ______________________________________ 15 ICON-Lite v.3.0... -
Page 3: Purpose And General Information
All inputs can work both for closing and opening, depending on the settings in the access control system The ICON-Lite controller is designed to work as part of the UNIMACS cloud access control system. There is a specialized version of the controller for integrators and developers; it has a limited set of commands (SimpleAPI) and can be very easily integrated into any ACS. -
Page 4: Specifications
* Maximum identification time, with the number of keys 10,000 - no more than 1.5 s. The controller can work with a large number of user keys, which will lead to an increase in the identification time. ICON-Lite v.3.0... -
Page 5: Indication Description
If your actuator needs a different power supply. To use external power, select DRY and use NO or NC and C, and wire to the external supply. That gives a possibility to control the actuators (lock and etc.), which use different power sources. ICON-Lite v.3.0... - Page 6 NO and GND (for fail-secure locks) or NC and GND (for fail-safe locks). In this work mode, relay out works in the same algorithm as open collector out. If you need more examples about relay modes, please study the chapter «Typical wiring diagrams.» ICON-Lite v.3.0...
-
Page 7: Hardware Reset
5. Remove the RESET jumper Description of connection Figure 2. Factory Network settings Интерфейс Параметр SSID: LR_ICONxxxx, where хххх is device serial number Wi-Fi device AP Password: not set IP address: 192.168.4.1 Ethernet network IP address: 192.168.1.100 Wi-Fi network IP address: 192.168.1.101 ICON-Lite v.3.0... -
Page 8: Installation Recomendation
ICON-Lite programming can be carried out from the cloud service "UNIMACS." Initial settings are made through the built-in ICON-Lite website. Always install the latest firmware for every new installation. -
Page 9: Rs485 Connection
The controller supply line wires should be kept as short as possible in order to avoid significant voltage drops across them. After laying the wires, make sure that the supply voltage of the controller with the locks turned on is not lower than 12 V. ICON-Lite v.3.0... -
Page 10: Protective Diode
Instead of diodes, varistors can be used, for which there is no need to observe polarity. Varistors VCR- 07D101K S07K60, TVR07101, GNR-07D101K, or similar are suitable. Heavy load switching Figure 7. Example of using a 12V relay for switching a load exceeding the output parameters. ICON-Lite v.3.0... -
Page 11: Typical Wiring Diagrams
Relay is used in the "Wet Contact" operating mode. Figure 8. Dry mode. With an additional apart power source for the lock. Figure 10. Different power supply Figure 9. Relay in "Dry contact" mode. for the lock. ICON-Lite v.3.0... -
Page 12: One Door. Two Directions. Wet Mode
2022 One door. Two directions. Wet mode. Figure 11. Two doors. One direction. Wet mode. Figure 12. ICON-Lite v.3.0... -
Page 13: Web-Based Interface
2022 WEB-BASED INTERFACE The initial configuration of ICON-Lite is done through the web-based interface. To connect to the interface, the User must connect to the device's Wi-Fi access point, which has the "ICON" prefix and does not have a password. After connecting to the device, the User must enter the factory IP address of the controller - 192.168.4.1 in the browser line. -
Page 14: Local Wi-Fi Access Point Settings
SSID name (3) and SSID password (4) during the initial setup. Cloud Connection settings The ICON-Lite controller is designed to work as part of the UNIMACS ACS but can also be used with any third-party service based on the MQTT service. To integrate with a third-party service, the controller must have a specialized "Simple API"... -
Page 15: Maintenance
This menu is used to change the login and password for access to the built-in website of the device. Enter new login name (1) Enter the old password (2) Enter a new password (3) Repeat new password (4) ICON-Lite v.3.0...
