LEGRAND 0 026 12 Manual

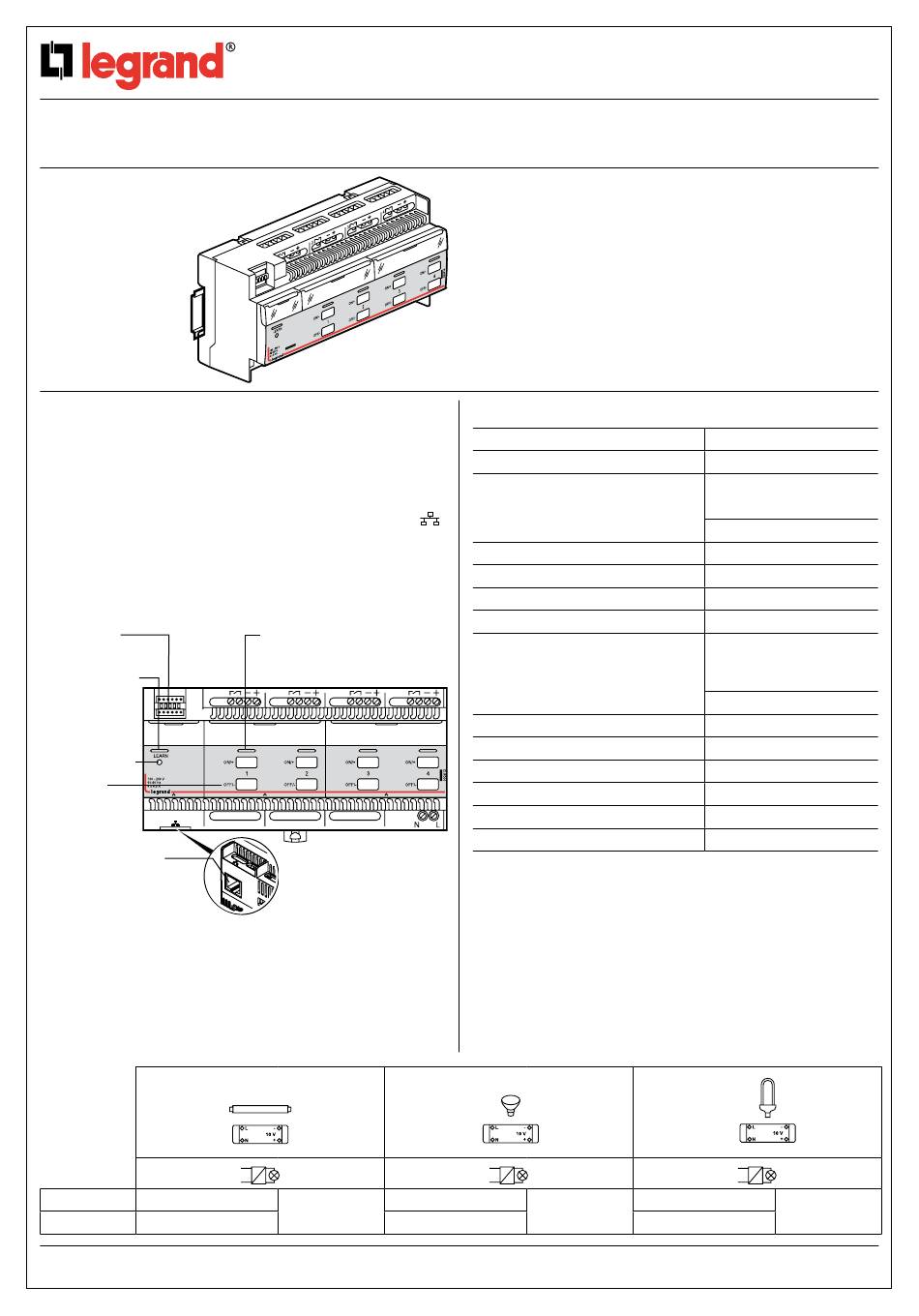

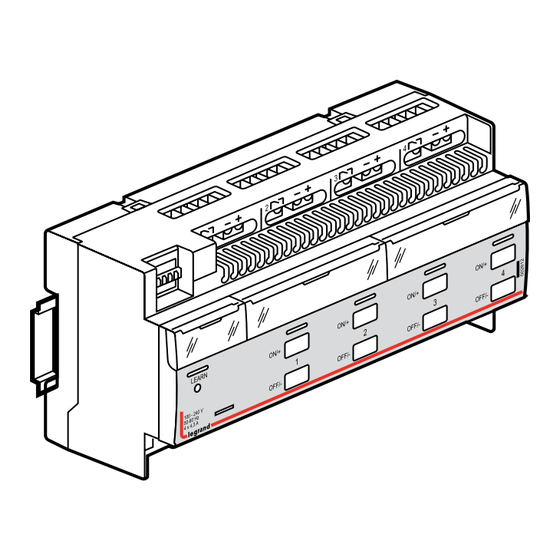

Controller - 4 outputs with dimming
1-10 V
1. USE
This device is a power unit used for managing lighting loads.
The load(s) can be controlled manually either locally or by SCS
control units associated with it (them). They can also be controlled
automatically by digital detectors.
The use of SCS control units and digital detectors requires an SCS
power supply and an addressing module* to be wired on the BUS
* The addressing module is not necessary if the installation is
equipped with software packs.
2. TECHNICAL CHARACTERISTICS
Configurator
LEARN LED:
indicates the
learning phase or
RESET
LEARN button
Control
button
BUS SCS connection
(RJ 45)
1
Fluorescent tubes
2
Tungsten halogen bulb
3 Compact fluorescent bulbs
4 1 - 10 V ballast
1
4
230 V~ 4 x 1000 VA
110 V~ 4 x 500 VA
Technical data sheet: F01133EN/02
CONTENTS
LED (on if output activated)
4 x 1000 VA
4 x 4.3 A
4 x 500 VA
Updated on: 15/11/2017
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 0 026 12
2. TECHNICAL CHARACTERISTICS (continued)
Number of supply terminal blocks
Number of load terminal blocks
Connection terminals
Terminal type
.
Terminal capacity
Number of RJ 45
Mains voltage
Frequency
Location category
Protection index
Penetration by solid and
liquid matter
Impact resistance
Number of modules
Operating temperature
Storage temperature
No-load power consumption
Weight
Zero current breaking
Max. control current 0 - 10 V (sum of the currents provided by the ballasts):
200 mA
Maximum inrush current on contact closing at 230 V~: 120 A - 20 ms
2
4
4 x 4.3 A
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . .1
3. Dimensions. . . . . . . . . . . . . . . . . . . . . .2
4. Connection . . . . . . . . . . . . . . . . . . . . . .2
5. Parameter setting . . . . . . . . . . . . . . . . .3
6. Configuration . . . . . . . . . . . . . . . . . . . .3
7. Care . . . . . . . . . . . . . . . . . . . . . . . . . . .3
8. Standards . . . . . . . . . . . . . . . . . . . . . . .3
1
4
screw
2 x 2.5 mm
2
1
100-240 V~
50/60 Hz
Indoors
IP20
(installation in an enclosure)
IK04
10
-5°C to +45°C
-20°C to +70°C
1.9 W
320 g
yes
3
4
4 x 1000 VA
4 x 500 VA
Created: 22/12/2010
Page
4 x 4.3 A
1/3
