SNMP Configuration
C C M
ENTRAL ONFIGURATION ANAGER

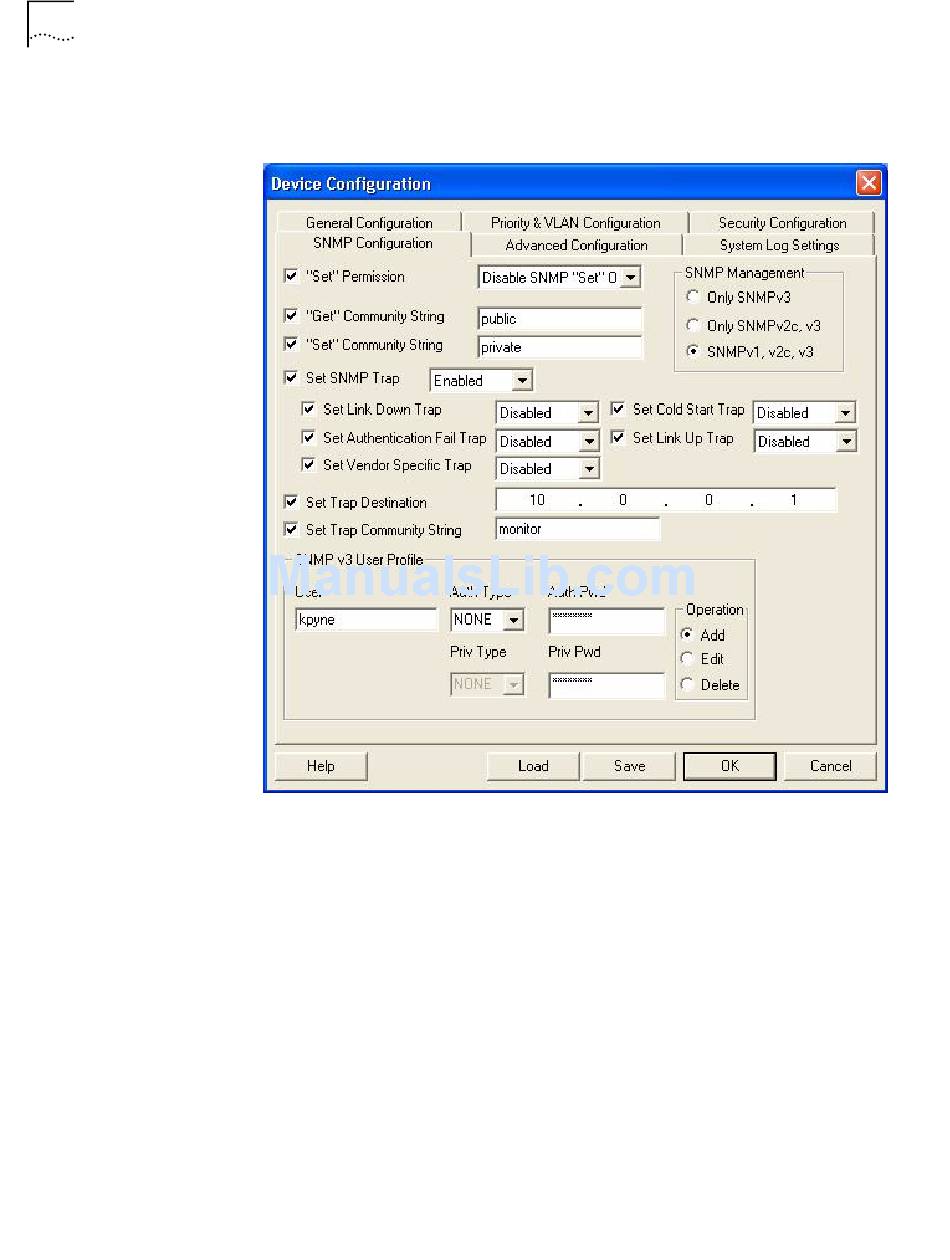

28 Click the SNMP Configuration tab to change the SNMP settings of the NJ240FX.
29 Select the desired level of SNMP Management. Depending on the selected level of
management, you will need to configure other SNMP Parameters, in order to
ensure communication between the IntelliJack and the SNMP Management Tool.
30 You can either Enable or Disable the "Set" operation of the IntelliJack.
31 Configure the "Get" and "Set" Community Strings for SNMP management
operations.
32 Enable or Disable SNMP Trap with the Set SNMP Trap setting. Once enabled, you
have the ability to configure the remaining trap settings.
SNMP provides the ability to send traps (notifications) to a trap destination, such
as an SNMP server, when one or more conditions have been met. Traps are
network packets that contain data relating to a component of the system sending
the trap. When the condition for the trap has been met, the SNMP agent forms an
SNMP packet and sends it to the administration application.
• A Cold Start Trap signals the administration application when the IntelliJack
does a Cold Start.
• A Link Down Trap signals when the SNMP agent on the IntelliJack has gone to
"down" state and is not reachable.
