Connecting Devices to
the NJ240FX
NJ240FX I J
NTELLI ACK
13 Align the main housing mounting hole with the metal mounting boss on the
metal mounting plate and secure with the supplied long oval head machine screw.
NOTE: An access hole is provided for installations that require the supplied AC
power cord to be routed back into the NEMA box. Place the AC power cord
between the metal and plastic housing cable tray and route through the lower
rectangular opening in the metal mounting plate. Adjust cable for desired loop
length before securing in place.
Once the power source and the data source have been verified in good working
order and the IntelliJack has been installed and mounted, connect your
networking devices (such as computers, printers, IP phones, cameras, etc.) to the
IntelliJack.

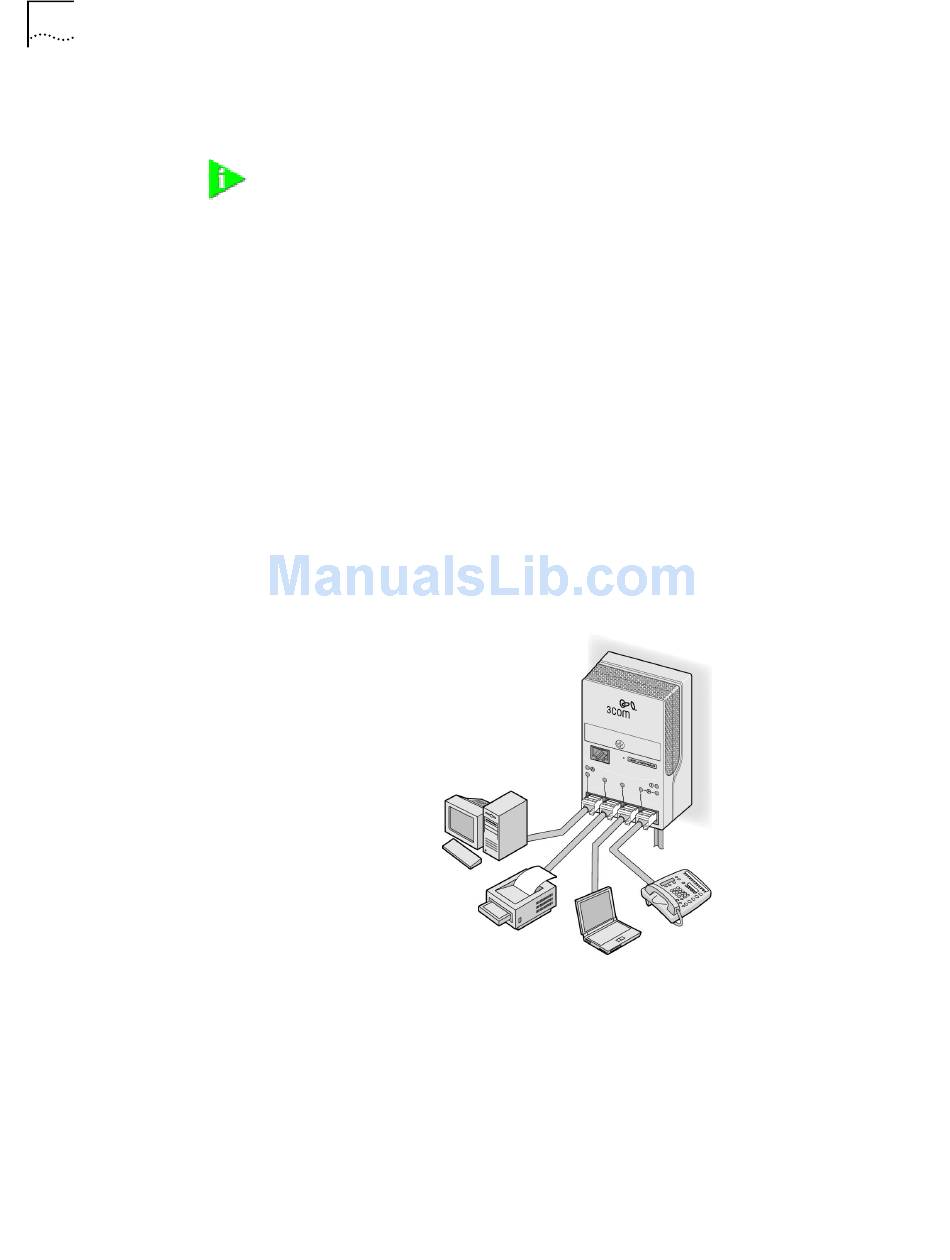

The IntelliJack has two ways to connect devices:
1 RJ-45 Personal Area Network (PAN) Ports — any of the four switched ports on the
bottom of the IntelliJack. All ports feature 10/100 Mbps auto-negotiation, which
configures the NJ240FX IntelliJack for 10 Mbps or 100 Mbps connections automatically.
2 Pass-through port—a single pass-through port is provided that allows an additional
device to be connected to a separate network segment through the same IntelliJack.
The data or voice traffic that travels through the pass-through port, passes through
the IntelliJack without being switched.
