28
C
4: U
C
C
M
HAPTER
SING THE
ENTRAL
ONFIGURATION
ANAGER

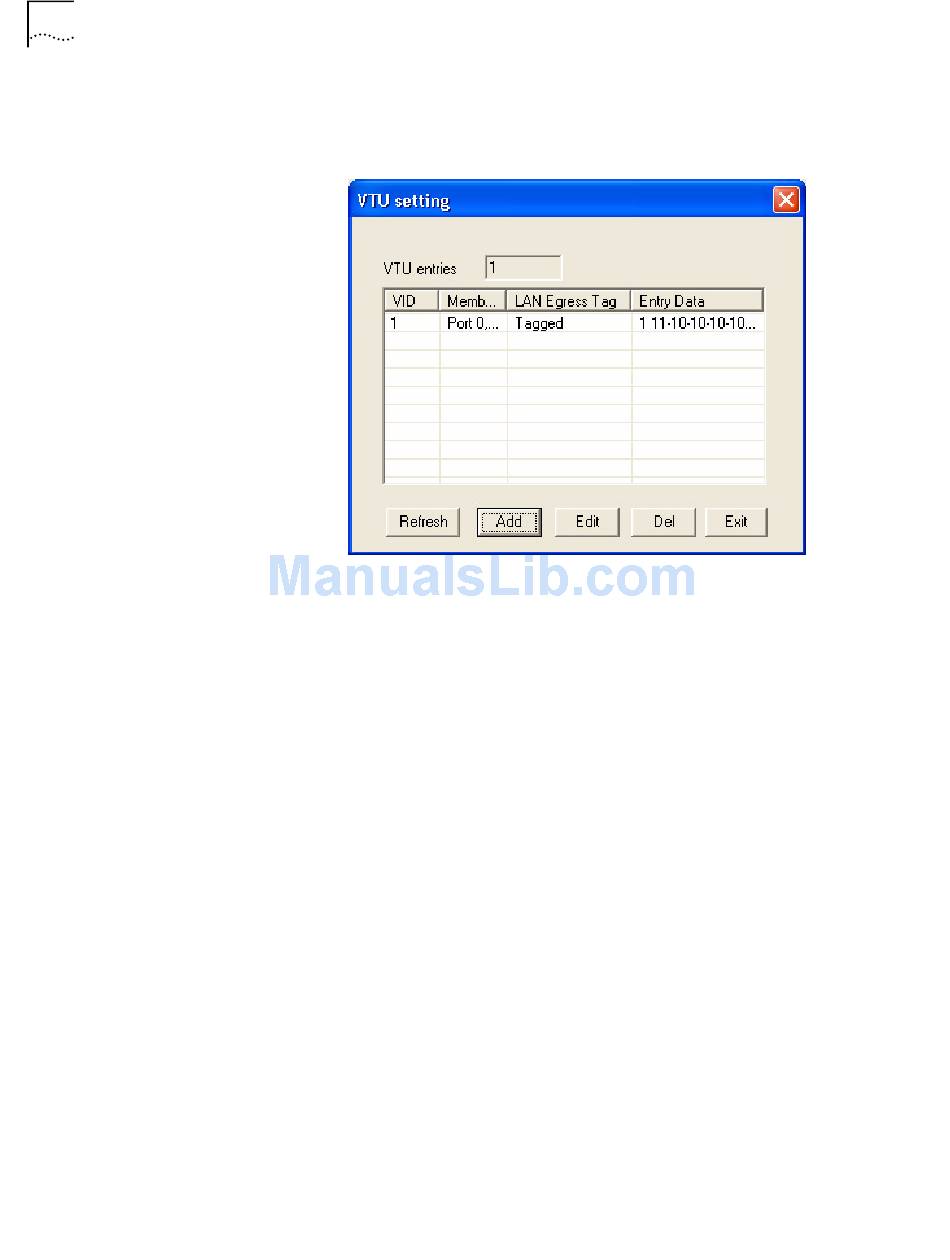

10 The IntelliJack also lets you manage its VLAN table. To access the VLAN table, click
on the Manage VLAN Table button. The screen you see allows you to display all
the VIDs that have been assigned to that IntelliJack.
You can refresh the list of VIDs or add to it. You can edit existing VLAN settings,
tagging schemes and port associations by clicking the Edit button.
The VLAN table is a record of the VLAN settings which have been configured for a
particular IntelliJack. You may want to know which ports have been assigned a
VLAN ID (VID), whether packets are tagged or untagged and whether the ports
are associated with one another. All of these configurations are handled through
the Properties page, since a VLAN table is related to a specific IntelliJack.
