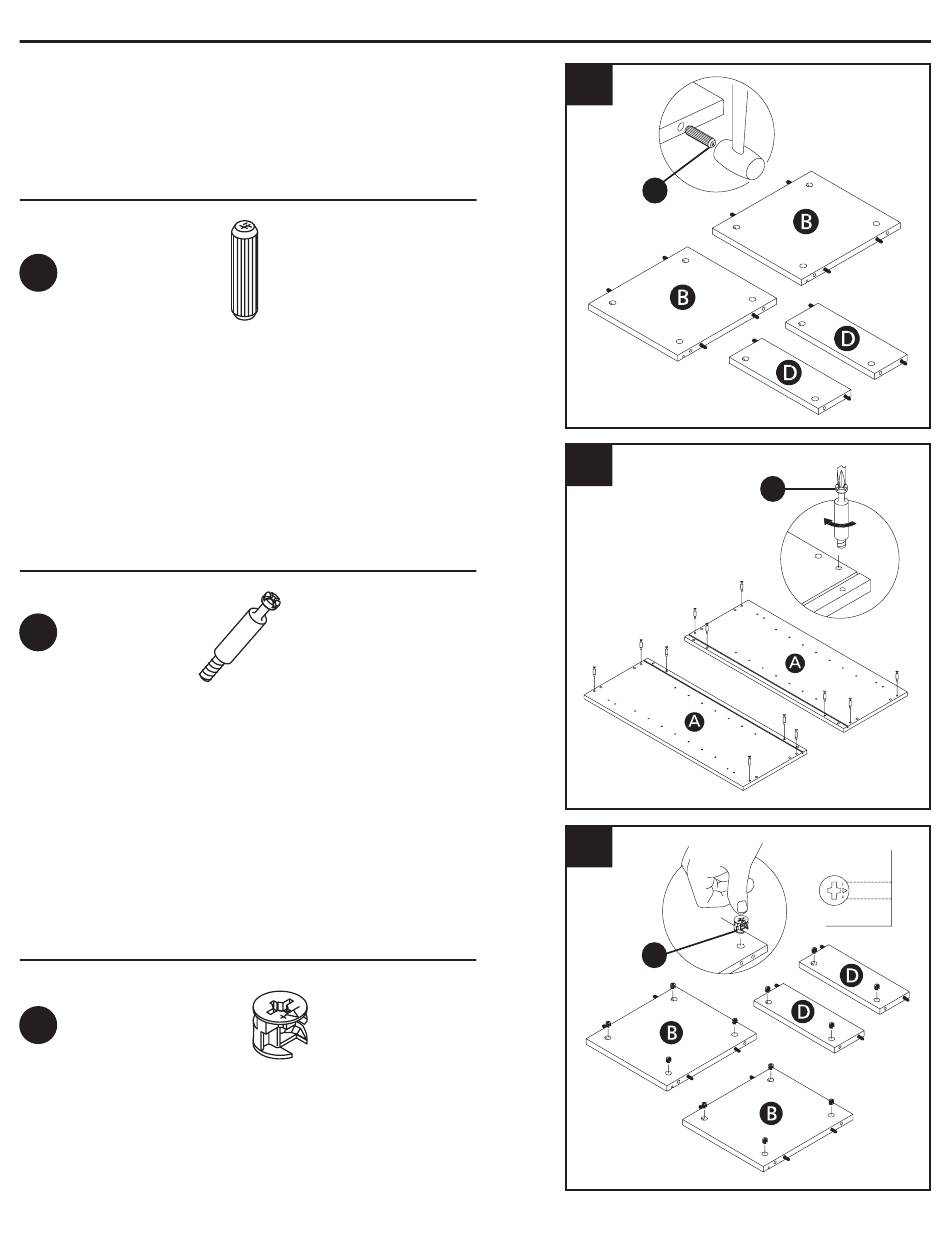

ASSEMBLY INSTRUCTIONS
1. Using a rubber mallet, tap in wooden dowels in the
correct positions as per the illustration. For added
strength, apply a small amount of wood glue to each
dowel prior to placement (not included).
Hardware Used
GG
Wooden dowel
2. Using a phillips head screwdriver, fasten
the minifix shafts in the correct positions as
shown.
Hardware Used
Minifix shaft
BB
3. Insert the minifix cam lock in the correct positions
based on the illustration. Please note the arrow mark
should face the bore hole as per the illustration.
Hardware Used
Minifix cam lock
AA
1
x 12
2
x 12
3
x 12
6
GG
BB
AA
