VersaSync Getting Started Guide Rev. 10
b. If you are on a DHCP-enabled network, you can assign an IP address
by enabling DHCP on your unit. Use the dhcp4set <x> on com-
mand, (x being 0/1 for ETH0 and ETH1, respectively).

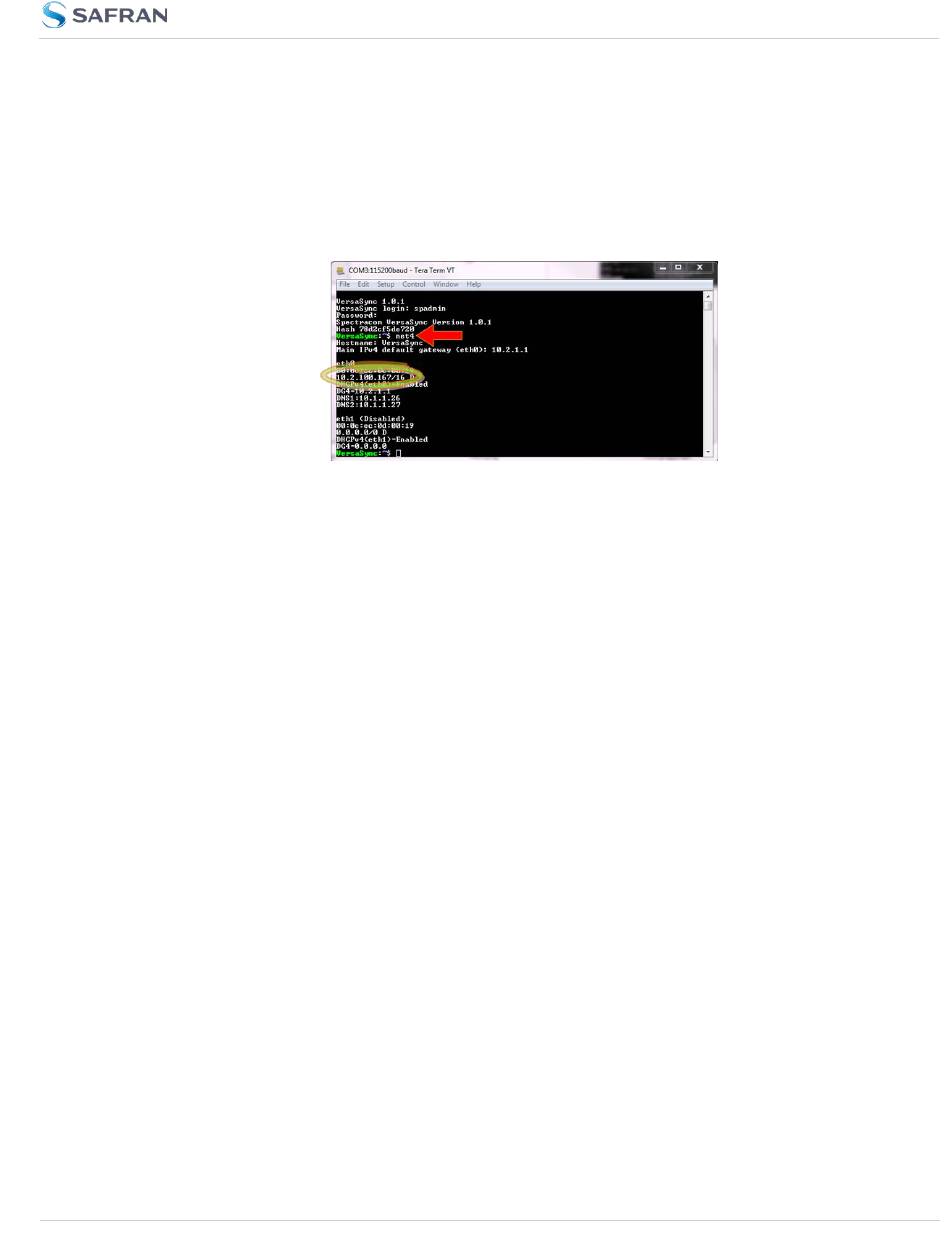

Retrieve the IP address assigned to VersaSync by typing the net4
command. The command should return the network settings, includ-
ing the IP address.
c. If you are NOT on a DHCP-enabled network, your unit's
set to the default
new static IP address). You can access the unit via the default
address with a PC configured to the same subnet mask
(255.255.255.0).
d. You can set a static IP address trough the CLI using the command:
ip4set <x>.<IP address>.<subnet mask> Example: ip4set 0
10.2.100.245 255.255.0.0
If required, also set your gateway address: gw4set <x> <gateway
address>.
Or, follow the steps below to set an IP address through the Web UI.
3. Log In to the Web UI
a. On a PC connected to VersaSync via ETH0 or ETH1, start a web
browser.
b. Navigate to the IP address obtained or assigned in Step 2.
c. Login to the VersaSync Web UI, using the same credentials as men-
tioned above.
d. If so required, you can also change VersaSync's IP configuration
(address, subnet, gateway, ...):
i. Navigate to
ii. In the
ETH0 or ETH1: The
for each Ethernet port (unless you have assigned a
MANAGEMENT > Network
Ports panel on the right, click the GEAR button next to
Edit Ethernet Port Settings
2.1 Network Setup
IP address is
Setup.
panel will open.
19
