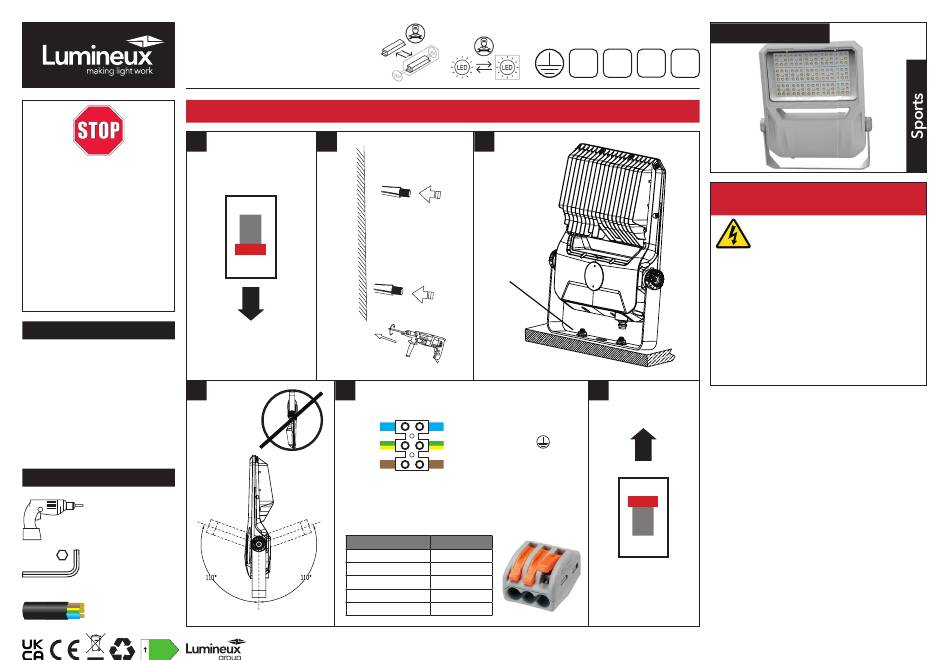

Lumineux Wilton Quick Start Manual

Wilton
Asymmetric
Sport Light
1
READ THESE INSTRUCTIONS
THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.
BOX CONTENTS
This lighting fi xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
4
luminaire to confi rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the fi xture
or any of its components.
• Light Fitting
• Instruction Manual
TOOLS REQUIRED
• Drill
• 100W requires
6mm Hex Key
150W - 280W
requires 8mm
Hex key
• Cable
A
B B
G
INSTALLATION INSTRUCTIONS
2
on
off
5
Electrical connection wiring
Terminal block not included. Installation must
be preformed by a qualifi ed person.
Brand
Connector Type
Current Rating
Model Name
Product Type
Suitable Cable Size
Manby Park, Manby, Louth, Lincolnshire, LN11 8UT
Lumineux Group is a trading name of B&T Associates Ltd.
100W, 150W, 240W & 280W
IP67 IK09
3
Flying bolts
6
NEUTRAL = Blue
EARTH = Green/Yellow
LIVE (L) = Brown
Wago
Lever
32A
222 Series
Connector
0.08 - 4mm 2
Technical Helpline:
+44 (0)1507 328031
Wilton
60,000 5 YR
Warranty
Hours
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
WARNING: Risk of electric shock! Isolate
the mains power before proceeding.
• Turn off the mains power before performing
inspections, installation, or removal
• Verify that the supply voltage is correct by
comparing it with the luminaire label information
• It is the installers responsibility to ensure installation
is suitable for the total load of the luminaire(s). The
supply cable, fuses/circuit brakers must be correctly
rated for the electrical load and considering for any
transient inrush currents that may occur
• Do not perform insulation strength or resistance
tests on installed luminarie(s) connected
1. Switch power off
2. Drill appropriately sized holes into your
wall or ceiling and insert approporiate
anchor bolts
3. Use correct fi xings (see overleaf) for fi xing
on
the light to desired surface. If installing in
an harsh environment, please use adequate
corrosion resistant fi xings
4. Adjust light fi tting to correct angle.
off
DO NOT INSTALL UPSIDE DOWN
5. Wire as per diagram (5)
6. Switch power back on
www.lumineux.co.uk
