Lumineux Belmont Installation Instructions

Belmont
Linear High Bay
Plug & Play (Zhaga)
1
READ THESE INSTRUCTIONS
THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.
BOX CONTENTS
This lighting fi xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
3
luminaire to confi rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the fi xture
or any of its components:
• Light Fitting
• Instruction Manual
• Suspension Kit
TOOLS REQUIRED
• Cable
A
Manby Business Park, Manby, Lincolnshire, LN11 8UT
D D
Lumineux is a B&T Associates Ltd company.
G
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
2
on
off
Zhaga sensor
120W, 180W and 200W
50,000
IP65
IK10
Hours
4
Electrical connection wiring
NEUTRAL = Blue
EARTH = Green/Yellow
LIVE (SW) = Brown
Technical Helpline: +44 (0)1507 328031
Belmont
5 YR
Flicker
Warranty
Enabled
Free
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
WARNING: Risk of electric shock! Isolate
the mains power before proceeding.
• Turn off the mains power before performing
inspections, installation, or removal
• Verify that the supply voltage is correct by
comparing it with the luminaire label information
• It is the installers responsibility to ensure installation
is suitable for the total load of the luminaire(s). The
supply cable, fuses/circuit brakers must be correctly
rated for the electrical load and considering for any
transient inrush currents that may occur
• Do not perform insulation strength or resistance
tests on installed luminarie(s) connected

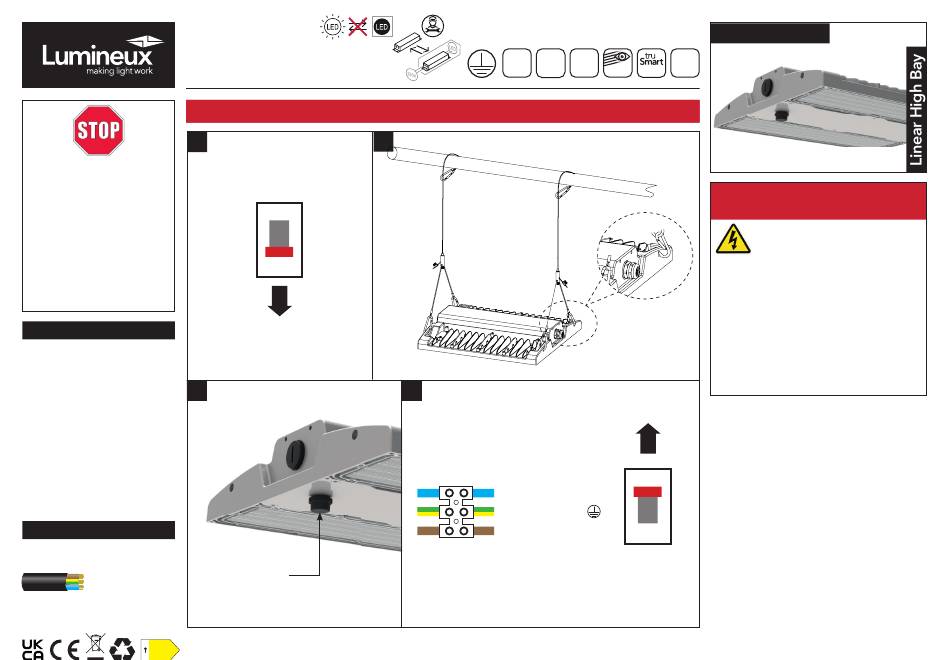

1. Disconnect mains supply.
2. Hang the light using supplied suspension
cord. Recommend suitable carabiner clips
for ease. (See weights overleaf)
on
3. To add sensor, twist off blanking cap on the
Belmont. Attach and twist in Zhaga sensor of
your choice. Follow remote control instructions
to set up sensor
off
4. Connect mains cable and reconnect mains
supply when deemed safe. (4)
Note: sensors can only be adjusted when
power is on
www.lumineux.co.uk
