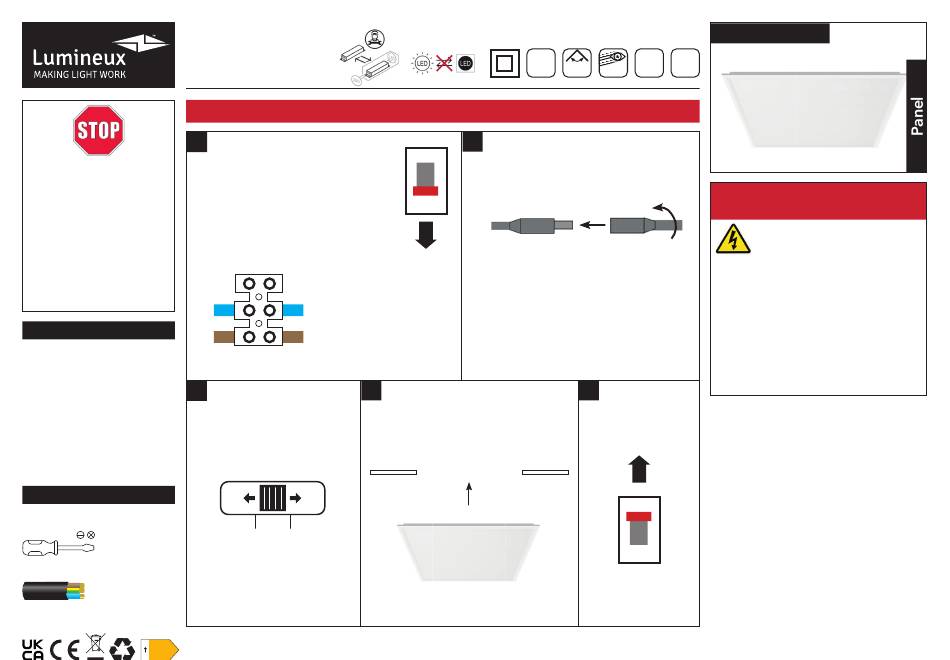

Lumineux Wraysbury Installation Instructions

Wraysbury
600 x 600
Panel
1
READ THESE INSTRUCTIONS
THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.
BOX CONTENTS
This lighting fi xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
3
luminaire to confi rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the fi xture
or any of its components:
• Light Fitting
• Instruction Manual
• LED Driver
TOOLS REQUIRED
• Screwdriver
• Cable
A
E E Manby Business Park, Manby, Lincolnshire, LN11 8UT
Lumineux is a B&T Associates Ltd company.
G
INSTALLATION INSTRUCTIONS
Electrical connection wiring
NEUTRAL (N) = Blue
LIVE (L) = Brown
4
3000K 4000K 6000K
IP40
120º
2
on
off
CAUTION
Do not hot plug when live.
5
Technical Helpline: +44 (0)1507 328031
36W Panel
Wraysbury
50,000 5 YR
Flicker
Warranty
Hours
Free
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
WARNING: Risk of electric shock! Isolate
the mains power before proceeding.
• Turn off the mains power before performing
inspections, installation, or removal
• Verify that the supply voltage is correct by
comparing it with the luminaire label information
• It is the installers responsibility to ensure installation
is suitable for the total load of the luminaire(s). The
supply cable, fuses/circuit brakers must be correctly
rated for the electrical load and considering for any
transient inrush currents that may occur
• Do not perform insulation strength or resistance
tests on installed luminarie(s) connected
1. Isolate the circuit
2. Connect the driver cable to the mains as per
image (1). (Terminal block not included).
For emergency, see overleaf.
3. Connect the LED driver to the panel using the
on
Twist-N-Lock jack connector
4. CCT models only: Select the desired colour
temperature using the in-line switch
off
5. Fit the panel into desired location
6. Re-connect the mains supply
www.lumineux.co.uk
