Lumineux Avon PRO 4CCT Installation Instructions

4CCT Gimbal FRD Downlight
1
READ THESE INSTRUCTIONS
THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.
BOX CONTENTS
This lighting fi xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the 4
luminaire to confi rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the fi xture
or any of its components:
• Light Fitting
• Instruction Manual
• Quick Connector
TOOLS REQUIRED
• Hole Saw
drill 70mm
• Cable
A
F F
G

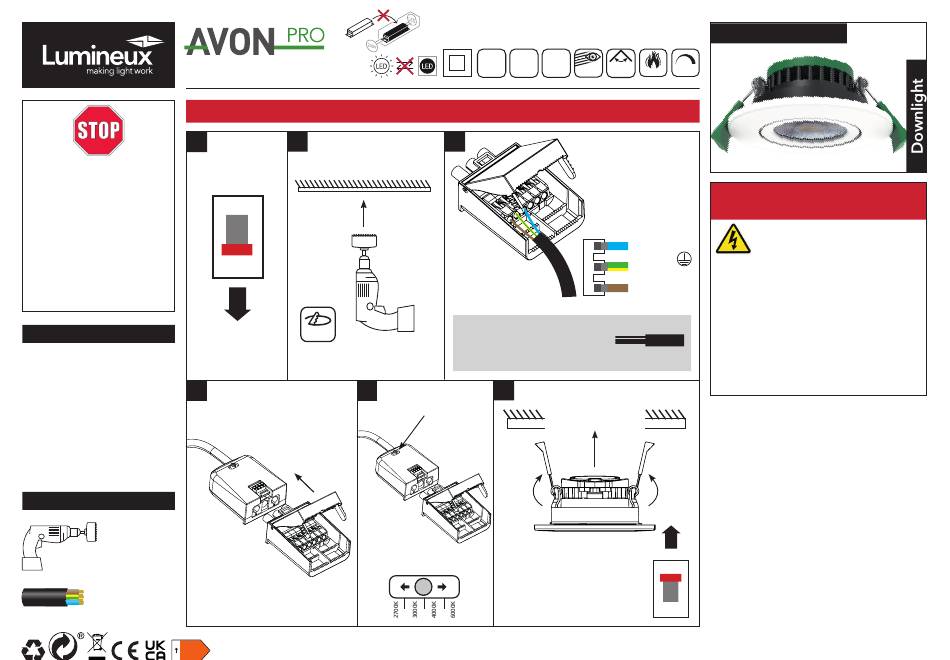

INSTALLATION INSTRUCTIONS
2
on
off
70mm
Hole
Cut-Out
5
4CCT switch
Twist bezel to reveal
4CCT switch.
Manby Business Park, Manby, Lincolnshire, LN11 8UT
Lumineux is a B&T Associates Ltd company.
5 YR
IP65 4CCT
Flicker
Warranty
Free
3
Earth terminal for
continuity only
PLEASE NOTE:
Ensure cable strip length
is 15mm for strong connection.
6
Technical Helpline: +44 (0)1507 328031
7W
Avon PRO Gimbal
60º
Dimmable
30, 60, 90 mins
PLEASE READ THESE INSTRUCTIONS
Electrical wiring
BEFORE INSTALLATION.
connections
WARNING: Risk of electric shock! Isolate
NEUTRAL (N)
Blue the mains power before proceeding.
EARTH
• Turn off the mains power before performing
Green/Yellow
inspections, installation, or removal
LIVE (L)
• Verify that the supply voltage is correct by
Brown
comparing it with the luminaire label information
• It is the installers responsibility to ensure installation
15mm
is suitable for the total load of the luminaire(s). The
supply cable, fuses/circuit brakers must be correctly
rated for the electrical load and considering for any
transient inrush currents that may occur
• Do not perform insulation strength or resistance
tests on installed luminarie(s) connected
1. Isolate the circuit.
2. Drill 70mm hole cut out.
3. Strip cable sleeves to reveal 15mm wire.
Push wires into connector and push clamps
downwards to secure the wires.
4. Attach connector to other half on light fi tting.
5. Twist bezel to select CCT option by
moving switch across to desired setting.
on 6. Grip spring clamps and move vertically.
Insert downlight into pre-drilled hole and
clamps will spring back and secure light
fi tting. Repeat for any other downlights,
off
then connect power on.
www.lumineux.co.uk
