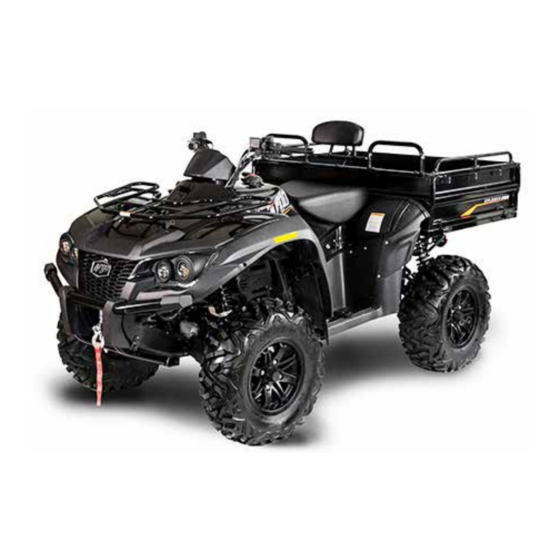

- Page 1 2025 OPERATOR’S MANUAL Xplorer Pro XRT 600 XTX This vehicle is not a toy. Never allow anyone under 16 years of age to operate this ATV. Part #: 080-0939 Effective Date 8/2024...
- Page 2 Read this manual before you operate your ARGO ATV. It contains safe operating instructions and warns the user about potential hazards that can result in personal injury. Warnings are identified in the text by the following symbol: WARNING Warning text warns the user about potential hazards that can result in personal injury or death.
- Page 3 This manual describes the controls, operation and basic maintenance procedures for the ARGO ATV from date of printing. Please take the time to read this manual carefully, for your safety and that of others. By following these instructions, you will ensure extended, trouble free operation of your ATV.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION I - Introduction Introduction ......................1 Getting Acquainted With Your ATV ..............4 SECTION 2 - Safety Information Safety Information ....................7 Warnings ......................12 Hangtags and Warning Labels ................. 21 SECTION 3 - Specifications Specifications ....................25 SECTION 4 - Description and Identification Identification Number Records ................. - Page 5 No Modifications ....................44 For Off-Road Use Only ..................44 Exhaust System....................44 Braking ......................45 Sliding or Skidding .................... 45 Turning Your ATV ....................46 Climbing Uphill....................46 Riding Downhill ....................47 Riding Over Rough Terrain ................47 Crossing A Slope ....................48 Crossing Through Shallow Water ..............
- Page 6 SECTION 8 - General Maintenance General Maintenance ..................67 Maintenance Schedule ..................68 Jacking Point ....................69 Grease Point..................... 69 Coolant Change....................70 Spark Plug Inspection..................71 Air Cleaner......................72 Engine Oil and Filter ..................73 Front Differential Gear Oil ................. 75 Rear Gearcase Gear Oil ...................
- Page 7 NOTES...
-
Page 8: Section I - Introduction
Proper setup, maintenance and safe operating practices will help you get years of satisfactory use from this ATV. Your safety and the safety of all ARGO users is of the greatest concern to us. You will find numerous safety statements in this manual. Please read and follow them carefully. - Page 9 Introduction Thank you for choosing this quality ARGO ATV. It has been designed and manufactured to provide you with reliable and enjoyable operation. This Owner’s Manual should be considered a permanent part of your ATV and must remain with the ATV in t he event of a resale.
- Page 10 PLEASE TAKE A FEW MOMENTS TO GET ACQUAINTED WITH YOUR ATV BY READING THIS OWNER’S MANUAL NOTE: The manufacturer DISCLAIMS LIABILITY FOR ERRORS IN THIS MANUAL, and SPECIFICALLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES resulting from the use of the information and material in this manual. Name: ________________________________________ Address: ______________________________________ Telephone: ____________________________________...
-
Page 11: Getting Acquainted With Your Atv
GETTING ACQUAINTED WITH YOUR ATV This manual will provide you with a good basic understanding of the features and operation of this ATV. This manual includes important safety information. It provides information about special techniques and skills necessary to ride the ATV. It also includes basic maintenance and inspection procedures. - Page 12 Emissions Warranty section of this Owner's Manual or visit our website. ARGO WANTS YOU TO BE SATISFIED WITH YOUR NEW ATV. IF YOU DO NOT UNDERSTAND ANY PART OF THIS MANUAL OR ARE NOT SATISFIED WITH THE SERVICE RECEIVED, PLEASE TAKE THE FOLLOWING ACTIONS: Discuss the matter with your dealership service manager.
- Page 13 NOTES...
-
Page 14: Safety Information
Safety Institute at: U.S. - 1-800-887-2887 or Canada - 1-613-739-1535 to find out about a training course nearest you. Visit www.atvsafety.org to register for free ATV safety training. ARGO is offering a $100 incentive for completion of the ASI approved safety training. - Page 15 An ATV is NOT a Toy and Can Be Hazardous To Operate • Always follow proper procedures for climbing hills as described in this manual. Check the terrain carefully before you start up any hill. Never climb hills with slippery or loose surfaces. Shift your weight forward. Never accelerate suddenly. Never go over the top of any hill at a high rate of speed.
- Page 16 An ATV is NOT a Toy and Can Be Hazardous To Operate IMPORTANT MESSAGE Your safety is very important to ARGO. That is why we urge you to read this message before you operate this ATV. Off-road riding can be fun. However, an ATV is not a toy and it can be hazardous to operate.
- Page 17 An ATV is NOT a Toy and Can Be Hazardous To Operate Always Supervise Inexperienced Riders Supervision is another important obligation of the owner. Even after riders become skilled off-road riders, it also helps to regularly remind all riders to follow the instructions and warnings in this manual.
- Page 18 An ATV is NOT a Toy and Can Be Hazardous To Operate Boots/Ankle Protection Choose a boot that protects the largest possible of your leg (preferable up to your knee) and can handle impact of rocks, dirt or branches. Choose a boot that has low heel and a good tread will help prevent your feet from slipping off the footrests in wet or rugged conditions.
-
Page 19: Warnings
Warnings WARNING POTENTIAL HAZARD Failure to follow the age recommendations for this ATV. WHAT CAN HAPPEN If children use ATVs that are not recommended for their age, severe injury or death can result. Even though a child may be within the age group for which an ATV is recommended, he or she may not have the skills, abilities, or judgment needed to operate the ATV safely and may be involved in a serious accident. - Page 20 Warnings POTENTIAL HAZARD Operating this ATV on public streets, roads, or highways. WHAT CAN HAPPEN You can collide with another vehicle. HOW TO AVOID THE HAZARD Never operate this ATV on any public street, road, or highway, even a dirt or gravel one.
- Page 21 Warnings POTENTIAL HAZARD Operating this ATV without wearing an approved motorcycle helmet, eye protection, and protective clothing. WHAT CAN HAPPEN Operating without an approved helmet increases your chances of a severe head injury or death in the event of an accident. Protective Clothing Goggles Operating without eye protection can result in an...
- Page 22 Warnings POTENTIAL HAZARD Attempting wheelies, jumps and other stunts. WHAT CAN HAPPEN Increases the chance of losing control of the ATV, which can result in an accident. HOW TO AVOID THE HAZARD Never attempt stunts, such as wheelies or jumps. Don’t try to show off. POTENTIAL HAZARD Failing to keep hands on handlebars or feet on footrests during operation.
- Page 23 Warnings POTENTIAL HAZARD Operating on steep hills. WHAT CAN HAPPEN This ATV can overturn more easily on steep hills than on level surfaces. HOW TO AVOID THE HAZARD Never operate this ATV on hills too steep for the ATV or for your abilities. Practice on smaller hills before attempting larger hills.
- Page 24 Warnings POTENTIAL HAZARD Going down a hill improperly. WHAT CAN HAPPEN You may lose control, which could result in an accident. HOW TO AVOID THE HAZARD Always follow proper procedures for going down hills. Always check the terrain carefully before you start down any hill.
- Page 25 Warnings POTENTIAL HAZARD Operating the ATV in deep or fast flowing water. WHAT CAN HAPPEN Tires may float, causing loss of traction and loss of control, which could result in an accident. HOW TO AVOID THE HAZARD Never operate the ATV in fast flowing water or in water deeper than the footrests.
- Page 26 Warnings POTENTIAL HAZARD Failure to release the parking brake before operating the ATV. WHAT CAN HAPPEN Operating the ATV with the parking brake engaged could cause a change in handling or loss of brakes and cause an accident. HOW TO AVOID THE HAZARD Always release the parking brake before operating the ATV.
- Page 27 Warnings POTENTIAL HAZARD Operating in areas where you might not be seen by other off-road ATVs. WHAT CAN HAPPEN You may be in a collision which may result in personal injury. HOW TO AVOID THE HAZARD Always mount a caution flag on the ATV to make you more visible.
-
Page 28: Hangtags And Warning Labels
The hangtags and labels are considered to be a permanent part of the ATV. If a label becomes hard to read or comes off the vehicle, contact your ARGO ATV dealer for a replacement. - Page 29 Hangtags and Warning Labels Read and understand all of the labels on your ATV. These labels contain important information for safe and proper operation. Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replacement label from your dealer.
- Page 30 Hangtags and Warning Labels...
- Page 31 NOTES...
-
Page 32: Specifications
SECTION 3 Specifications ENGINE AND DRIVE Type Four-Stroke, Water Cooled Bore x Stroke 95 x 79.2 mm (3.74 x 3.12 in.) Displacement 561 cc Cylinder arrangement Single cylinder Compression ratio 10.2 +/-0.5 Max. Power / RPM 31.4 kw / 7000 rpm Max. - Page 33 MISCELLANEOUS Rims Aluminum Gas Tank Capacity (Rated) 4.75 gal (18 L) Gasoline (Recommended) 87 Octane Regular Unleaded SAE 10W-40 Engine Oil (Recommended) Change w/Filter - 3.5 qt (3.3 L) Engine Oil Capacity (Approximate) Change w/o Filter - 3.2 qt (3.0 L) Gear Lubricant (Recommended) SAE 75W-90 Front Differential...
-
Page 34: Section 4 - Description And Identification Identification Number Records
SECTION 4 Description and Identification Identification Number Records Record the key identification number, frame serial number, engine serial number and model code information for assistance when order replacement parts. KEY NO. _________________________________ FRAME NO. ______________________________ ENGINE NO. _____________________________ MODEL CODE ____________________________ Key identification number The key identification number is stamped on the hang tag as shown in the illustration. -
Page 35: Location Of Parts And Controls
Location of Parts and Controls 7 8 9 Override Switch 8. Speedometer & Display Starter Switch 9. Ignition Switch Four Wheel Brake Lever 10. Shift Lever High/Low Beam Switch 11. Auxiliary DC Jack Stop Switch 12. 2WD/4WD/LOCK Switch Parking Brake Lock 13. -
Page 36: Over-Ride Function
Note: By squeezing the brake lever, the four-wheel brake system will activate. Note: The brake fluid level must be above the MIN mark. If the level keeps going down, see an authorized ARGO dealer. Always use DOT 4 brake fluid. -
Page 37: Shift Lever
Location of Parts and Controls Shift Lever L: High torque use (advance gear) H: Normal use (driving gear) N: Neutral R: Reverse use P: Park Shift lever instructions: 1. Engine starts in the Neutral (N) or the Park (P) positions. 2. -
Page 38: Drive Mode Select Buttons
Location of Parts and Controls 2WD / 4WD / Lock Selector Switch The 2WD/4WD selector switch allows you to operate your ATV in either two-wheel drive (rear wheels powered) or four-wheel drive (open front differential). The 2WD/4WD/LOCK select switch is located above the throttle lever. - Page 39 Location of Parts and Controls 2WD: Rear Wheel Drive The ATV in two wheel drive mode. Power is supplied to the rear wheels. This is mainly use for normal riding. 4WD: Four Wheel Drive Engage the engine power on all four wheels. There is a limited slip gear assembly inside the front diffferential to engage the right and left front wheels at different speeds.
- Page 40 Location of Parts and Controls Stop the ATV, ensure the 4WD button is pushed in, then rotate the differential gear lock lever to the “LOCK” position. When the differential gear is locked, the differential gear lock indicator “LOCK” will be illuminated on the multi-function display..
-
Page 41: Speedometer
Location of Parts and Controls Speedometer Fuel Meter Bar Function Display 2WD/4WD/LOCK Display Speedometer EPS Indicator MODE Button LED Gear Indicator LED Indicator Symbols SET Button Main Beam Headlamp - Blue Drive Gear - Green Engine oil indicator - Red Neutral Gear - Green Battery charge indicator Reverse Gear - Red... -
Page 42: Functions Display
Contact an authorized ARGO dealer for inspection. 4. Engine check light (Yellow): if this light turns on, contact an authorized ARGO dealer for inspection. 5. EPS “FAIL” blinking indicate EPS malfunction and the defect code will show on the bottom line of screen with “c####”, please contact an... -
Page 43: Button Operations
Location of Parts and Controls TRIP A & TRIP B: Trip Meter A & B 1. TRIP function registers cumulative trip distance from last RESET while ATV is being ridden. 2. Display is on 2nd row of screen. ODO: Odometer 1. -
Page 44: Seat
Locations of Parts and Controls 4. During setting, if the digit did not change over 10 seconds, the setting will auto save and go back to time screen. 5. When speed over 6 mph (10 km/h), the setting will save automatically. EPS (Electric Power Steering) FUNCTION The EPS indicator comes on when you press the MODE button and scroll to the EPS function. -
Page 45: Battery
Locations of Parts and Controls Battery The battery is located under the seat. This model is equipped with a maintenance free battery. There is no need to check the electrolyte or to add distilled water. However, the battery lead connections need to be checked and tightened if necessary following the periodic maintenance table. -
Page 46: Auxiliary Dc Jack
Check the operation before you start the engine. If it does not work smoothly, check for the cause. Correct the problem before riding the ATV. Consult an authorized ARGO dealer if you can not locate or solve the issue yourself. -
Page 47: Speed Limiter
Location of Parts and Controls Speed Limiter The speed limiter keeps the throttle from fully opening, even when the throttle lever is pushed to the maximum. Screwing IN the adjuster limits the maximum engine power available and decreases the maximum speed of the ATV. Adjuster Locknut 0.72 in (18 mm) -
Page 48: Tool Kit
Location of Parts and Controls Tool Kit A tool kit is provided with your ATV. It is recommended to put the tool kit in the vinyl bag and always carry them in the storage compartment. 1. Air pressure gauge 2. Spark plug wrench 3. - Page 49 NOTES...
-
Page 50: Section 5 - Getting To Know Your Atv Getting To Know Your Atv
SECTION 5 Getting to Know Your ATV Getting To Know Your ATV This ATV is for recreation use. This section, riding your ATV, provides general ATV riding instructions for recreational riding. The skills and techniques described in this section, however, are appropriate for all types of riding. Riding your ATV requires special skills acquired through practice over a period of time. -
Page 51: Accessories
Accessories Genuine ARGO accessories have been specifically designed for and tested on this vehicle. Because ARGO cannot test all other accessories, you are personally responsible for properly selecting, installing, and using non- ARGO accessories. 1. Carefully inspect the accessory to make sure it does not block any lights, reduce ground clearance, or limit suspension travel, steering travel, or other controls. -
Page 52: Braking
Getting To Know Your ATV Braking Practice starting and stopping at slow speeds. Gradually work up to faster starts and stops. 1. Steer straight ahead. Close the throttle completely, remove your thumb from the throttle lever. 2. Gently apply the brakes: compress left hand lever and depress foot pedal. Gradually increase the lever pressure as you feel the brakes slowing your speed. -
Page 53: Turning Your Atv
Getting To Know Your ATV Turning Your ATV To achieve maximum traction while riding Lean towards Support your off- road, the two rear wheels are mounted inside of turn weight on the outer solidly on one axle and turn together at the footboard same speed. -
Page 54: Riding Downhill
Getting To Know Your ATV Climbing Uphill If you start to roll backwards, DO NOT use the rear brake to stop. The ATV could easily tip over backwards. Instead, dismount the ATV immediately on the uphill side. If the hill is not too steep and you have good footing, you may be able to walk the ATV back down the hill. -
Page 55: Crossing A Slope
Getting To Know Your ATV Crossing A Slope Traversing a sloping surface on your ATV requires you to properly position your weight to maintain proper balance. Be sure that you have learned the basic riding skills on flat ground before attempting to cross a sloping surface. Avoid slopes with slippery surfaces or rough terrain that may upset your balance. -
Page 56: What To Do If
Getting To Know Your ATV WHAT TO DO IF This section is designed to be a reference guide only. Be sure to read each section on riding techniques completely. WHAT TO DO..If your ATV doesn't turn when you want it to: Bring the ATV to a stop and practice the turning maneuvers again. - Page 57 NOTES...
-
Page 58: Section 6 - Before You Ride Engine Break-In
If any abnormality is noticed during this period, consult an authorized ARGO dealer. 1. 0 - 10 hours (0-100 miles) (0-160 km): Avoid continuous operation above half throttle. -
Page 59: Pre-Operation Check Table
Operation - Before You Ride Before operating this ATV, check the following points: ITEM ROUTINE • Check fuel level in fuel tank and add recommended fuel if Fuel necessary. • Check fuel line for leakage. Correct if necessary. • Check oil level in engine and add recommended oil to Engine Oil specified level if necessary. -
Page 60: Front And Rear Brakes
Always check the brakes at the start of every ride. Do not ride the ATV if you find any problem with the brakes. If a problem cannot be corrected by the adjustment procedures provided in this manual, have the ATV inspected by an authorized ARGO dealer. Fuel Fill the fuel tank when necessary and make sure there is sufficient gasoline in the tank. -
Page 61: Engine Oil
Operation - Before You Ride Engine Oil Make engine oil level should be checked before each ride. In addition, the oil must be changed at the intervals specified in the periodic maintenance table. Ensure the engine oil is at the specified level. Add oil as necessary. Check for any leaks. Recommended engine oil classification: Engine - SAE 10W-40 CAUTION... -
Page 62: Front Differential Gear Oil
The differential gear case level should be checked for oil leakage before each ride. If any leakage is present, take the ATV to an authorized ARGO dealer for service. In addition, the differential gear oil level must be checked and the oil changed following the interval schedule in the periodic maintenance and lubrication chart. -
Page 63: Coolant
Operation - Before You Ride 3. If the oil is below the bottom of the filler hole, add sufficient oil (75W90) to raise it to the correct level. 4. Check the gasket for damage and replace it if necessary. 5. Install the oil filler bolt and its gasket and then tighten the bolt to: Rear gearcase oil filler bolt - 24 ft lb (32.36 Nm) Rear gearcase oil check bolt - 5.75 ft lb (7.8 Nm) Coolant... -
Page 64: Tires
Check tire pressure regularly to make sure they are at the recommended specifications. Check for wear and damage. 1. The tires listed have been approved by ARGO for this model. Other tire combinations are not recommended. This ATV is equipped with tubeless tires with valves. -
Page 65: Throttle Lever
Repair as necessary for proper operation. Fittings and Fasteners Always check chassis fittings and fasteners to ensure they are tight and secure. Take the ATV to an authorized ARGO dealer or refer to the Service Manual for correct torque specifications. WARNING POTENTIAL HAZARD Operating this ATV without being familiar with all controls and functions. -
Page 66: Section 7 - Operation
SECTION 7 Operation Always wear the following to reduce risk of injury in an accident: • Approved motorcycle helmet that fits properly. • Eye protection (goggles, helmet face shield or protective eyewear) • Over the ankle boots, gloves, long sleeved shirt or jacket and long pants. An approved helmet and other personal protective equipment can reduce the severity of injuries in an accident. -
Page 67: Starting The Engine
Operation Starting the Engine Always start the engine with the ATV on a flat, level surface. Always start your ATV outside as it produces Carbon Monoxide poisoning which will cause harm. Follow these steps to start your ATV: 1. Turn the engine stop switch to “RUN” position. 2. -
Page 68: Parking
Operation Parking Parking requires following the previous rules of braking; then: 1. When the ATV comes to a complete stop, shift ATV into the Park “P” position. 2. Stop the engine using the engine stop switch located on the handlebar. 3. -
Page 69: Climbing Uphill
Operation To achieve maximum traction while riding off-road, the two rear wheels turn together at the same speed. Therefore, unless the wheel on the inside of the turn is allowed to slip or lose some traction, the ATV will resist turning. A special turning technique must be used to allow the ATV to make turns quickly and easily. -
Page 70: Riding Downhill
Operation Slow down when you reach the crest of the hill if you cannot see clearly what is on the other side there could be another person, an obstacle or a sharp drop off. Use common sense and remember that some hills are too steep for you to climb or descend. -
Page 71: Crossing A Slope
Operation Crossing a Slope WARNING Improperly crossing hills or turning on hills could cause loss of control or cause the ATV to overturn. Traversing a sloping surface on your ATV requires you to properly position your weight to maintain proper balance. Be sure that you have learned the basic riding skills on flat ground before attempting to cross a sloping surface. -
Page 72: Riding Over Rough Terrain
Operation Riding Over Rough Terrain WARNING Riding improperly over obstacles could cause loss of control or a collision. Before operating in a new area, check for obstacles. Never attempt to ride over large obstacles, such as large rocks or fallen trees. When you go over obstacles, always follow proper procedures as described in the Owner’s Manual. -
Page 73: Cold Weather Operation
Operation Cold Weather Operation NOTE: Ensure all control levers operate as intended. Make sure the footrests are free and clear of ice and snow. WARNING For your personal safety, it is important to wear the proper type and amount of cold-weather clothing according to the coldest anticipated temperatures. -
Page 74: General Maintenance
You may choose any qualified repair shop or person to maintain, replace, or repair emission control devices and systems with original or equivalent replacement parts. However, warranty, recall and all other services paid for by Argo USA must be performed at an authorized Argo USA service center which will complete repairs in a reasonable amount of time. -
Page 75: Maintenance Schedule
Maintenance Schedule INITIAL EVERY 1 month 6 months 1 year Item 100 mi 600 mi 1200 mi (160 km) (965 km) (1930 km) * Air Filter C, L Air Cleaner Drain Tube Brakes * Brake Fluid Replace every 2 years Brake Hoses Replace every 4 years Chassis Bolts and Nuts... -
Page 76: Jacking Point
General Maintenance Jacking Point • When raising your vehicle Make sure to observe the following to reduce the possibility of death or serious injury. • Lift up the vehicle using a floor jack such as the one shown in the illustration. •... -
Page 77: Coolant Change
General Maintenance Coolant Change Recommended antifreeze: High quality ethylene glycol antifreeze containing corrosion inhibitors for alumi- num engines Coolant quantity: Radiator capacity (including all routes): 2.3 qt (2.2 L) Reservoir capacity (up to the maximum level mark): 1.25 qt (1.2 L) WARNING Wait for the engine and radiator to cool before removing the radiator cap. -
Page 78: Spark Plug Inspection
Do not attempt to diagnose such problems yourself. Instead, take the machine to an authorized ARGO dealer. You should periodically remove and inspect the spark plug because heat and deposits will cause the spark plug to slowly break down and erode. -
Page 79: Air Cleaner
General Maintenance Air Cleaner 1. Remove the seat. 2. Release the four latches that secure the air cleaner cover, remove the cover. 3. Loosen the clamp strip screw and remove the air cleaner element. 4. Clean the element with a non-flammable solvent and then squeeze it completely dry. -
Page 80: Engine Oil And Filter
General Maintenance Engine Oil and Filter The engine oil level should be checked before each ride. In addition, the oil must be changed and the oil filter replaced at the intervals specified in the periodic maintenance and lubrication chart. To check the engine oil level: 1. - Page 81 General Maintenance To change the engine oil (with or without oil filter replacement): 1. Place the ATV on a level surface. 2. Start the engine and let warm up for several minutes and then turn off. 3. Using a suitable jack, elevate the ATV.
-
Page 82: Front Differential Gear Oil
The front differential gear case level should be checked for oil leakage before each ride. If any leakage is present, take the ATV to an authorized ARGO dealer for service. In addition, the differential gear oil level must be checked and the oil changed following the interval schedule in the periodic maintenance and lubrication chart. -
Page 83: Rear Gearcase Gear Oil
The rear gearcase level should be checked for oil leakage before each ride. If any leakage is present, take the ATV to an authorized ARGO dealer for service. In addition, the rear gear oil level must be checked and the oil changed following the interval schedule in the periodic maintenance and lubrication chart. -
Page 84: Battery
General Maintenance 7. Check the oil filler bolt gasket for damage and replace it if necessary. 8. Install the oil filler bolt and gasket and then tighten to 24 ft lb (32.36 Nm). 9. Check the rear gearcase for oil leakage. If oil is leaking, check for the cause. Battery The battery is located under the seat. - Page 85 4. Install the seat. To charge the battery: Have an authorized ARGO dealer charge the battery as soon as possible if it seems to have discharged. Keep in mind that the battery tends to discharge more quickly if the ATV is equipped with optional electrical accessories.
-
Page 86: Charging / Maintenance Charging
ARGO dealer for further troubleshooting. Jump-Starting NOTE: ARGO does not recommend jump-starting a vehicle with a dead battery but rather to remove the battery, service it, and correctly charge it. WARNING Improper handling or connecting of a battery may result in severe injury including acid burns, electrical burns, or blindness as a result of an explosion. -
Page 87: Fuses
General Maintenance Fuse Box There are two fuse boxes on this model, one is the main fuse box and the other is the EPS fuse box. Both are located under the cargo box. HEAD HI IGNITION TAIL F.P. RELAY MAXI CHARGER HEAD LO P-SOURCE... -
Page 88: Replacing A Headlight Bulb
3. Turn the key to the “ON” position and turn on the electrical circuits to check if the devices operate. 4. If the fuse immediately blows again, have an authorized ARGO dealer check the electrical system. Replacing a Headlight Bulb If a headlight bulb burns out, replace it as follows: 1. -
Page 89: Adjusting Headlight Beam
Adjusting a Headlight Beam CAUTION It is advisable to have an authorized ARGO dealer perform this adjustment. To raise a headlight beam, turn the headlight beam adjusting screw in clockwise. To lower a headlight beam, turn the adjusting screw in counter-clockwise. -
Page 90: Shock Absorbers
Cable Inspection and Lubrication Lubricate the inner cables and the cable ends with a quality cable lubricant. If the cables do not operate smoothly, see an authorized ARGO dealer to replace them. Front Brake Lever Free Play Adjustment Specified free play: 0.4 - 0.8 in (10 - 20 mm) The front brake lever free play should be adjusted to 0.4 - 0.8 in (10~20 mm) at the... -
Page 91: Brake Lever Lubrication
Make sure the brakes operate smoothly and the free play is correct. Make sure the brakes do not drag. Replacement of brake components require professional knowledge. These procedures should be performed by an authorized ARGO dealer. Brake Lever Lubrication Recommended Lubrication: Lithium-soap-based grease (all purpose) Lubricate the pivoting points of the brake levers. -
Page 92: Wheel - Removal And Installation
General Maintenance CAUTION • To prevent damage to the brake system, use only fluid from a sealed container. Never allow contaminates (dirt, water, etc.) to enter the brake fluid reservoir. • Brake fluid can damage paint and plastic, so handle the fluid with care. When adding brake fluid, be sure the reservoir is horizontal before removing the cover to prevent accidental spilling. -
Page 93: Aftermarket Tires And Rims
General Maintenance Aftermarket Tires and Rims The tires and rims that came with your ATV were designed to match the performance capabilities and to provide the best combination of handling, braking and comfort. Other tires, rims, sizes and combinations may not be appropriate. Spark Arrester Cleaning Be sure the exhaust pipe and muffler are cool before cleaning the spark arrester. -
Page 94: Noise Regulation
General Maintenance NOISE REGULATION TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED: Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person. - Page 95 NOTES...
-
Page 96: Troubleshooting
Troubleshooting Engine doesn’t turn over Possible Cause Solution Tripped circuit breaker Reset the breaker Low battery voltage Recharge battery to 12.5 VDC Loose battery connections Check all connections and ignition Loose solenoid connections Check all connections and ignition Engine turns over but fails to start Possible Cause Solution Out of fuel... - Page 97 Troubleshooting Possible Cause Solution Low battery voltage Recharge battery to 12.5 VDC Kinked or plugged fuel vent line Inspect and replace Incorrect fuel Replace with recommended fuel Clogged air filter Inspect, clean or replace Other mechanical failure See your dealer Possible lean mixture fuel cause Low or contaminated fuel Add or change fuel, clean fuel system...
-
Page 98: Section 9 - Preparation For Storage
SECTION 9 Preparation For Storage CAUTION Prior to storing your ATV, it must be properly serviced to prevent rusting and component deterioration. Cleaning the Vehicle Frequent, thorough cleaning of your ATV will not only enhance its appearance but will improve its general performance and extend the useful life of many components. 1. -
Page 99: Short Term
Storage Short Term Always store your ATV in a cool, dry place and if necessary, protect it against dust with a porous cover. WARNING Storing the ATV in a poorly ventilated room or covering it with a tarp while it is still wet, will allow water and humidity to seep in and cause rust. -
Page 100: Section 10 - Warranty
The warranty is validated upon examination of said parts by ARGO or an authorized ARGO dealer. ARGO reserves the right to inspect such parts at its factory for fi nal determination if warranty should apply. ARGO will repair or replace, at its option (including any related labor charges), any parts that are found to be warrantable in material or workmanship. -
Page 101: Warranty Procedure / Owner Responsibility
If a warrantable condition appears to exist, the dealer will repair or replace, at ARGO’s option, including any related labor costs, all parts that are found to be warrantable and any other parts which the warrantable part caused to be damaged. -
Page 102: Epa Emissions Control System Warranty
EPA EMISSIONS CONTROL SYSTEM WARRANTY: LIMITED WARRANTIES EMISSION CONTROL SYSTEMS: ARGO warrants to the owner of any 2025 and subsequent model year ATV that the ATV is designed, built and equipped to conform at the time of sale with all applicable... -
Page 103: Emissions Warranty Coverage
Emissions Warranty Coverage: This warranty begins on the date the ATV is delivered to the first purchaser, or the date it is first used as a demonstrator, lease, or company ATV, whichever comes first and continues for the time and mileage listed below: Time: 30 months Mileage 5,000 kilometers (3,100 miles) whichever comes first. -
Page 104: Maintenance Record
Maintenance Record...
