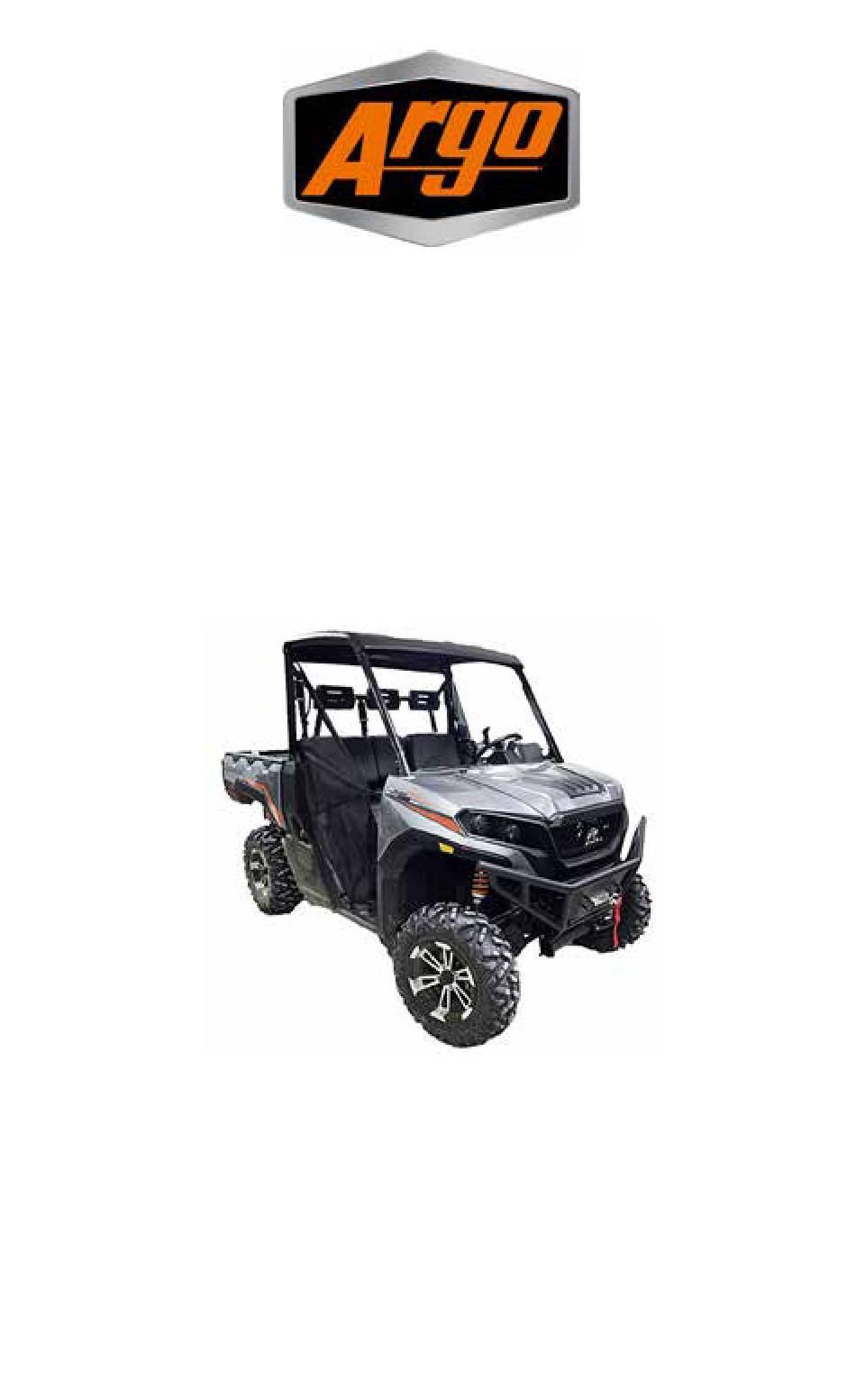

2025
OPERATOR'S
MANUAL
Magnum XF 1000
This vehicle is not a toy. Never allow anyone under
16 years of age to operate this vehicle.
Part #: 080-0315
Effective Date 8/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnum XF 1000 2025 and is the answer not in the manual?

Questions and answers

Related Manuals for Argo Magnum XF 1000 2025

Summary of Contents for Argo Magnum XF 1000 2025

  • Page 1 2025 OPERATOR’S MANUAL Magnum XF 1000 This vehicle is not a toy. Never allow anyone under 16 years of age to operate this vehicle. Part #: 080-0315 Effective Date 8/2024...
  • Page 2 Caution text contains cautions that can prevent damage to the OHRV. This manual is based on the latest product information available at the time of printing. ARGO reserves the right to make changes at any time and without obligation. Reproduction of any part of this publication is prohibited without prior written permission.
  • Page 3 This manual describes the controls, operation and basic maintenance procedures for the ARGO OHRV from date of printing. Please take the time to read this manual carefully, for your safety and that of others. By following these instructions, you will ensure extended, trouble free operation of your OHRV.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SECTION I - Introduction Introduction ......................1 Getting Acquainted With Your OHRV ..............4 SECTION 2 - Safety Information Safety Information ....................7 Warnings ......................12 Hangtags and Warning Labels ................. 19 SECTION 3 - Specifications Specifications ....................23 SECTION 4 - Description and Identification Identification Number Records .................
  • Page 5 Environment ..................... 44 Weather ......................44 Terrain....................... 44 Night Riding ...................... 45 Paved Surfaces ....................45 Trail Riding ....................... 45 Weight Limits ....................45 Trailering and Towing..................46 Transporting ..................... 46 Jacking Points ....................47 Grease Points ....................48 SECTION 6 - Before You Ride Engine Break-In ....................
  • Page 6 SECTION 8 - General Maintenance General Maintenance ..................63 Maintenance Schedule ..................64 Radiator ......................65 Cooling System Inspection ................65 Coolant Change....................65 Shock Absorbers ....................66 Cables ......................67 Engine Oil and Filter ..................67 Transmission Gear Oil ..................69 Front Differential Gear Oil .................
  • Page 7 NOTES...

  • Page 8: Introduction

    Proper setup, maintenance and safe operating practices will help you get years of satisfactory use from this OHRV. Your safety and the safety of all ARGO users is of the greatest concern to us. You will find numerous safety statements in this manual. Please read and follow them carefully.
  • Page 9 Introduction Thank you for choosing this quality ARGO OHRV. It has been designed and manufactured to provide you with reliable and enjoyable operation. This Owner’s Manual should be considered a permanent part of your vehicle and must remain with the vehicle in the event of a resale.
  • Page 10 PLEASE TAKE A FEW MOMENTS TO GET ACQUAINTED WITH YOUR OHRV BY READING THIS OWNER’S MANUAL NOTE: The manufacturer DISCLAIMS LIABILITY FOR ERRORS IN THIS MANUAL, and SPECIFICALLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES resulting from the use of the information and material in this manual. Name: ________________________________________ Address: ______________________________________ Telephone: ____________________________________...

  • Page 11: Getting Acquainted With Your Ohrv

    GETTING ACQUAINTED WITH YOUR OHRV This manual will provide you with a good basic understanding of the features and operation of this OHRV. This manual includes important safety information. It provides information about special techniques and skills necessary to ride the OHRV.
  • Page 12 Emissions Warranty section of this Owner's Manual or visit our website. ARGO WANTS YOU TO BE SATISFIED WITH YOUR NEW OHRV. IF YOU DO NOT UNDERSTAND ANY PART OF THIS MANUAL OR ARE NOT SATISFIED WITH THE SERVICE RECEIVED, PLEASE TAKE THE FOLLOWING ACTIONS: Discuss the matter with your dealership service manager.
  • Page 13 NOTES...

  • Page 14: Safety Information

    SECTION 2 Safety Information An OHRV is NOT a Toy and Can Be Hazardous To Operate An OHRV handles differently from other vehicles such as motorcycles and cars. A collision or rollover can occur quickly, even during routine operation such as turning, driving over obstacles, on hills or rough terrain, if you do not take necessary precautions.
  • Page 15 An OHRV is NOT a Toy and Can Be Hazardous To Operate • Always have the OHRV inspected by an authorized ARGO dealer if it has been involved in any type of accident. • NEVER OPERATE UP OR DOWN HILLS STEEPER THAN 15 DEGREES.
  • Page 16 An OHRV is NOT a Toy and Can Be Hazardous To Operate IMPORTANT MESSAGE Your safety is very important to ARGO. That is why we urge you to read this message before you operate this OHRV. Off-road riding can be fun. However, an OHRV is not a toy and it can be hazardous to operate.
  • Page 17 An OHRV is NOT a Toy and Can Be Hazardous To Operate Always Supervise Inexperienced Riders Supervision is another important obligation of the owner. Even after riders become skilled off-road riders, it also helps to regularly remind all riders to follow the instructions and warnings in this manual.
  • Page 18 An OHRV is NOT a Toy and Can Be Hazardous To Operate Boots/Ankle Protection Choose a boot that protects the largest possible of your leg (preferable up to your knee) and can handle impact of rocks, dirt or branches. Choose a boot that has low heel and a good tread will help prevent your feet from slipping off the controls in wet or rugged conditions.

  • Page 19: Warnings

    Warnings WARNING POTENTIAL HAZARD Failure to follow the age recommendations for this OHRV. WHAT CAN HAPPEN Use of this vehicle by children can lead to serious injury or death. Children under the age of 16 may not have the skills, abilities, or judgment needed to operate this vehicle safely and may be involved in an accident causing serious injury or death..
  • Page 20 Warnings POTENTIAL HAZARD Operating this vehicle on public streets, roads, or highways. WHAT CAN HAPPEN You can collide with another vehicle. HOW TO AVOID THE HAZARD Never operate this vehicle on any public street, road, or highway, even a dirt or gravel one. In many states it is illegal to operate an OHRV on public streets, roads, or highways.
  • Page 21 Warnings POTENTIAL HAZARD Climbing hills improperly. WHAT CAN HAPPEN You may lose control, which could result in an accident. HOW TO AVOID THE HAZARD Always follow proper procedures for climbing hills. Always check the terrain carefully before you start up any hill. Never climb hills with slippery or loose surfaces.
  • Page 22 Warnings POTENTIAL HAZARD Attempting abrupt maneuvers, sliding, skidding, fishtailing or donuts. WHAT CAN HAPPEN Increases the chance of losing control including rollover which can result in an accident. HOW TO AVOID THE HAZARD Never attempt abrupt maneuvers, sliding, skidding, fishtailing or donuts. Don’t try to show off.
  • Page 23 Warnings POTENTIAL HAZARD Stalling, rolling backwards, or improperly dismounting the vehicle while climbing a hill. WHAT CAN HAPPEN You may lose control, which could cause the vehicle to overturn resulting in an accident. HOW TO AVOID THE HAZARD Use proper gear and maintain steady speed when climbing a hill. If you lose all forward momentum: Apply the brakes.
  • Page 24 Warnings POTENTIAL HAZARD Improperly operating over obstacles. WHAT CAN HAPPEN You may lose control, which could result in an accident. HOW TO AVOID THE HAZARD Before operating in a new area, check for any obstacles. Never attempt to ride over large obstacles, such as fallen trees, stumps or large rocks. Follow proper procedures outlined in this manual.
  • Page 25 Warnings POTENTIAL HAZARD Starting or running engine in a closed area. WHAT CAN HAPPEN Exhaust fumes are poisonous and may cause loss of consciousness and death within a short period of time. HOW TO AVOID THE HAZARD Always operate your vehicle outdoors or in an area with adequate ventilation. POTENTIAL HAZARD Improper handling of gasoline.

  • Page 26: Hangtags And Warning Labels

    The hangtags and labels are considered to be a permanent part of the OHRV. If a label becomes hard to read or comes off the vehicle, contact your ARGO dealer for a replacement.
  • Page 27 Hangtags and Warning Labels WARNING IMPROPER USE OF OFF-HIGHWAY VEHICLES CAN CAUSE LOCATE AND READ OWNER’S MANUAL BE PREPARED - PLAN AHEAD SERIOUS INJURY OR DEATH. FOLLOW ALL INSTRUCTION AND WARNINGS • Fasten seatbelts DRIVE RESPONSIBLY RIDERS MUST P AY ATTENTION AND PLAN AHEAD. •...
  • Page 28 Hangtags and Warning Labels WARNING DO NOT SIT ON OR USE TAILGATE AS A STEP SEVERE INJURY OR DEATH can result if the following is ignored: • NEVER exceed the vehicle load capacity including weight of operator, passenger, cargo, accessories, and trailer tongue.
  • Page 29 NOTES...

  • Page 30: Specifications

    SECTION 3 Specifications ENGINE AND DRIVE Type Four-Cycle V-Twin Bore x Stroke 92 x 75 mm (3.62 x 2.95 in.) Displacement 997 cc Cylinder Arrangement V-Twin Compression Ratio 10.2:1 Cooling System Liquid Radiator - 5.2 qt (4.9 L) Coolant Capacity Reservoir - 13.5 oz (0.4 L) Starting System Electric...
  • Page 31 Specifications MISCELLANEOUS Basic Weight (Approx. w/ fuel and oil) 1714 lb (778 kg) Cargo Box load (Max.) 1000 lb (453 kg) Fuel (Recommended) 87 Octane Regular Unleaded Gas Tank Capacity (Rated) 11.1 U.S. Gal. (42 L) Engine Oil (Recommended) SAE 10W-40 Change w/filter: 2.1 qt (2.0 L) Engine Oil Capacity Change w/o filter: 1.9 qt (1.8 L)

  • Page 32: Section 4 - Description And Identification Identification Number Records

    The manufacturer’s date plate (4) is located near the left rear wheel. These numbers are required by the dealer to complete any Warranty process. No warranty will be allowed by ARGO if the VIN or ESN has been tampered with in any way.

  • Page 33: Location Of Parts And Controls

    Location of Parts and Controls Rear View Cargo Box Latch Handle Tail / Brake / Back up Light Receiver Hitch Muffler and Spark Arrestor NOTE: The machine you have purchased may differ slightly from those shown in the illustrations of this manual.
  • Page 34 Location of Parts and Controls Operator View 19. 2WD / 4WD Lock 20. Headlamp Switch 21. Winch Switch 22. USB Plug 23. 12V DC Plug...

  • Page 35: Control Functions Ignition Switch

    Control Functions Ignition Switch Functions of the respective switch positions are as follows: “OFF” position: All electrical circuits (except the accessory plug) are switched off. The engine will not start or run. The key can be removed in this position. “ON”...

  • Page 36: Brake Pedal And Accelerator Pedal

    However, it is recommended to shift into “N” (Neutral) or “P” (Park) before starting the engine. If either indicator light fails to illuminate when the gear select lever is in the neutral or park position, have an ARGO dealer inspect the electrical circuit.

  • Page 37: Drive Modes

    Control Functions Parking Shift Lever Instructions: 1. Engage the brake and move the shift lever into the Park (“P”) position. Ensure the “P” indicator on the display is illuminated. 2. When “P” is displayed on the display, the engine RPM is limited. CAUTION Excessive throttle RPM while in the “P”...
  • Page 38 Control Functions 4WD: Four wheels drive without LOCK function. Power to the front and rear wheels with front differential function and rear differential function. Should be used when operating in wet or slippery conditions. 4WD LOCK (Rear Wheel Drive): Power to all four (4) wheels with LOCK on the rear differential with front differential function.

  • Page 39: Indicator Lights

    Control Functions Indicator Lights Indicator lights on the display gauge: 1. 2WD/4WD indicator 11. Odometer 2. Clock 12. Coolant temperature 3. Vehicle speed 13. Engine hours 4. RPM 14. Battery voltage 5. Gear indicator 15. EPS mode indicator 6. Hi beam indicator 16.
  • Page 40 Control Functions When ignition switch is turned to the “ON” position, the system will perform a self-diagnostic system check on the engine oil indicator, coolant indicator and battery charging indicator. If this system check does not occur, contact your local dealer for inspection.

  • Page 41: Display Functions

    Control Functions Display Functions RPM: Digital Tachometer 1. RPM is displayed in the second row. Displays RPM up to 12,000 RPM. Signal picked up from either ECU or ignition coil. MAX RPM: Maximum Tachometer 1. MAX RPM is displayed in the second row. Displays highest reading achieved after last RESET operation.

  • Page 42: Button Operations

    Control Functions Button Operations MODE BUTTON: 1. Press the MODE button to move all functions in a loop sequence from one function screen to another. ODO → RPM → TRIP A → TRIP B → MAX SPEED → SPEED AVG → RT → TT →...

  • Page 43: Auxiliary Dc Power Outlet And Usb Outlet

    Control Functions EPS mode ODO mode SWITCH button MODE button Auxiliary DC Power Outlet and USB Outlet The power outlets provide 12 volt DC power that may be used to power an auxiliary light or other optional 12 volt accessories. The outlets are located on the console area of the vehicle.

  • Page 44: Seatbelt Lamp

    Control Functions Seat Belt Lamp The seat belt lamp will remain illuminated while the engine is running to alert you to fasten the seat belt. Once seat belt is fastened, the light will go out. NOTE: This vehicle is equipped with a sensor for the driver’s seat belt.

  • Page 45: Tilt Steering Adjustment

    Control Functions Tilt Steering Adjustment Pull the tilt steering adjuster to adjust the position of the steering wheel. Seat Adjustment (Driver Only) 1. Pull "UP" on the lever on the front of the seat and push forward or backward to the desired position.

  • Page 46: Cargo Box

    Control Functions Cargo Box To Lift: 1. Push the cargo box release lever rearward, then slowly lift up on the cargo box until it stops in the “UP” position. NOTE: There is a lever on both sides of the cargo box. To Lower: 1.

  • Page 47: Hood

    Control Functions Hood To Open: 1. Rotate the hood latches to release the hood, slide the hood towards the front of the vehicle. Remove the hood. To Install: 1. Slide the hood onto the vehicle from the front and rotate the hood latches. Ensure hood is properly fitted.

  • Page 48: Storage Box /Glove Box

    Any extensive work requiring additional tools should be performed by your authorized ARGO dealer. It is recommended to put the tool kit in the vinyl bag and always carry them in the glove compartment.
  • Page 49 NOTES...

  • Page 50: Section 5 - Getting To Know Your Ohrv

    SECTION 5 Getting to Know Your OHRV Getting To Know Your OHRV This OHRV is for recreation use. This section, riding your OHRV, provides general OHRV riding instructions for recreational riding. The skills and techniques described in this section, however, are appropriate for all types of riding. Riding your OHRV requires special skills acquired through practice over a period of time.

  • Page 51: Accessories

    Accessories Genuine ARGO accessories have been specifically designed for and tested on this vehicle. Because ARGO cannot test all other accessories, you are personally responsible for properly selecting, installing, and using non- ARGO accessories. 1. Carefully inspect the accessory to make sure it does not block any lights, reduce ground clearance, or limit suspension travel, steering travel, or other controls.

  • Page 52: Night Riding

    Getting To Know Your OHRV Night Riding It is best to avoid riding your OHRV at night when visibility is limited. With little to no light, it is difficult to see what is around you. If you must ride at night, proceed slowly and never ride at a speed that would prevent you from reacting to something that could come up in the limited view of your headlamps.

  • Page 53: Trailering And Towing

    Getting To Know Your OHRV Trailering and Towing This vehicle is equipped with a rear frame-mounted receiver for a standard 2 in (5.1 cm) receiver hitch (purchased separately). WARNING Ensure the load in/on the trailer is properly secured to prevent shifting while moving. DO NOT OVERLOAD the trailer.

  • Page 54: Jacking Points

    Getting To Know Your OHRV Jacking Points NOTE: When raising your vehicle, ensure you observe the following to reduce the possibility of serious injury or death. • Stop the vehicle on firm, level ground. • Set the parking brake and shift the shift lever into the "P" position. •...

  • Page 55: Grease Points

    Getting To Know Your OHRV Grease Points...

  • Page 56: Section 6 - Before You Ride

    Because of the technical ability and resources available at an authorized ARGO dealer, it is best to take your vehicle to the dealer for service rather than attempting to perform this initial service yourself.

  • Page 57: Pre-Operation Check Table

    Inspect the ROPS for any cracking, deformation, missing or damaged fasteners, loose fasteners, unauthorized repair or weldments or improper installation. If any of the above mentioned items are discovered, DO NOT OPERATE and immediately take the vehicle to an authorized ARGO dealer for service.

  • Page 58: Hydraulic Brakes

    Always check the brakes at the start of every ride. Do not ride the OHRV if you find any problem with the brakes. If a problem cannot be corrected by the adjustment procedures provided in this manual, have the OHRV inspected by an authorized ARGO dealer. Fuel Fill the fuel tank when necessary and make sure there is sufficient gasoline in the tank.

  • Page 59: Engine Coolant Reservoir

    3. If the coolant level is low, remove the cap from the reserve tank and add coolant or distilled water through the filler opening to the “F” (Full) mark. Install the cap. NOTE: If water is added, have an authorized ARGO dealer check the antifreeze content of the coolant as soon as possible.

  • Page 60: Engine Oil

    SAE 10W-40. Ambient temperature should determine the correct weight of oil. See the viscosity chart or consult an authorized ARGO dealer for guidance. CAUTION Be sure to use motor oils that do not contain anti-friction modifi ers. Passenger car motor oils (often labeled “Energy Conserving”) contain anti-friction additives which will cause starter clutch slipping, resulting in reduced component life and poor engine performance.

  • Page 61: Front Differential / Rear Differential

    Operation - Before You Ride Front / Rear Differential Recommended Lubricant: SAE 85W-90 CAUTION Any lubricant used in place of the recommended lubricant may cause serious damage. NOTE: The OHRV should be parked on level ground, with the engine key switch in the “OFF”...

  • Page 62: Throttle Pedal

    Fittings and Fasteners Always check chassis fittings and fasteners to ensure they are tight and secure. Take the vehicle to an authorized ARGO dealer or refer to the Service Manual for correct torque specifications. Lights Check the headlight, taillight and brakelight to ensure they are in proper operating condition.

  • Page 63: Tire Wear Limit

    WHAT CAN HAPPEN Loss of control, increasing the risk of an accident or injury. HOW TO AVOID THE HAZARD Read the Owner’s Manual carefully. If there is a control or function you do not understand, contact an authorized ARGO dealer.

  • Page 64: Section 7 - Operation

    However, it is recommended to shift into “N” (Neutral) or “P” (Park) before starting the engine. If either indicator light fails to illuminate when the gear select lever is in the neutral or park position, have an ARGO dealer inspect the electrical circuit.

  • Page 65: Warming Up The Engine

    Operation CAUTION Do not run the starter motor for more than 5 (five) seconds per starting attempt as the starter motor may overheat causing severe damage. Allow 10 (ten) seconds between starting attempts to allow the starter motor to cool. Pay attention not to discharge the battery.

  • Page 66: Braking / Stopping

    However, it is recommended to shift into “N” (Neutral) or “P” (Park) before starting the engine. If either indicator light fails to illuminate when the gear select lever is in the neutral or park position, have an ARGO dealer inspect the electrical circuit.

  • Page 67: Driving Downhill

    Operation Driving Downhill 1. Keep both hands on the steering wheel. 2. Avoid steep hills. 3. Before driving down the hill, shift into low gear and release the accelerator to allow for maximum engine braking. Do not use 4-wheel drive when driving down a hill.

  • Page 68: Crossing Obstacles

    Operation Crossing Obstacles Crossing obstacles can be hazardous. There is always potential of the vehicle tipping or rolling over. If you cannot go around an obstacle, follow these procedures: 1. Stop the vehicle and place the transmission in park “P”. Get out of the vehicle and inspect the obstacle from both sides.
  • Page 69 NOTES...

  • Page 70: General Maintenance

    You may choose any qualified repair shop or person to maintain, replace, or repair emission control devices and systems with original or equivalent replacement parts. However, warranty, recall and all other services paid for by ARGO must be performed at an authorized ARGO service center which will complete repairs in a reasonable amount of time.

  • Page 71: Maintenance Schedule

    Maintenance Schedule INITIAL EVERY 1 month 6 months 1 year Item 100 mi 600 mi 1200 mi (160 km) (965 km) (1930 km) * Air Filter Air Cleaner Drain Tube Brakes * Brake Fluid Replace every 2 years Brake Hoses Replace every 4 years Chassis Bolts and Nuts Chassis Lubrication Points...

  • Page 72: Radiator

    General Maintenance Radiator The radiator area requires to be checked periodically for debris. Inspect the radiator fins, they must be clean, free of mud, dirt, leaves and any other debris that would prevent the radiator to cool properly. Remove as much of the debris as possible with your hands.

  • Page 73: Shock Absorbers

    General Maintenance 1. Park the vehicle on a flat, level surface. 2. Remove the hood. 3. Place a suitable container under the engine and remove the coolant drain bolt and gasket. 4. Remove the radiator cap. 5. Remove the reservoir cap. 6.

  • Page 74: Cables

    General Maintenance The shock absorbers have spring force adjustment sleeves to allow the spring rate to be adjusted for diff erent riding conditions. If the spring rate is too soft or too stiff , adjust the sleeve by tightening or loosening the spring adjustment nut on the shock Tightening the nut will provide a heavier spring load.
  • Page 75 General Maintenance To change the engine oil (with or without oil fi lter replacement): 1. Place the vehicle on a level surface. 2. Start the engine and let warm up for several minutes and then turn off . 3. Lift vehicle using an appropriate jack. 4.

  • Page 76: Transmission Gear Oil

    General Maintenance Transmission Gear Oil To check the transmission gear oil level: 1. Place the vehicle on a level surface. 2. Remove the cover and check bolt then check the oil level in the transmission case. The oil level should be at the brim of the check hole.

  • Page 77: Front Differential Gear Oil

    The differential gear case level should be checked for oil leakage before each ride. If any leakage is present, take the vehicle to an authorized ARGO dealer for service. In addition, the differential gear oil level must be checked and the oil changed following the interval schedule in the periodic maintenance and lubrication chart.

  • Page 78: Rear Differential Gear Oil

    The final gear case level should be checked for oil leakage before each ride. If any leakage is present, take the vehicle to an authorized ARGO dealer for service. In addition, the final gear oil level must be checked and the oil changed following the interval schedule in the periodic maintenance and lubrication chart.

  • Page 79: Brake Hoses

    General Maintenance Brake Hoses Carefully inspect the hydraulic hoses for cracks or other visible damage. If damage is found, take the vehicle to an authorized ARGO dealer for service. Hydraulic Brakes WARNING Be sure to inspect the hydraulic brake system before every use. Always maintain the brakes and the brake fluid level according to the Maintenance Schedule.

  • Page 80: Protective Rubber Boots

    6. Measure the thickness of each brake pad. If the thickness of the pads are less than 0.039 in (1 mm), take your vehicle to an authorized ARGO dealer to have the brake pads replaced. 7. Install the wheel and install wheel nuts.

  • Page 81: Tie Rod Boots

    8. If boot damage is noted or tie rod end free-play seems excessive, contact an authorized ARGO dealer for service. 9. Install the wheel and reinstall the wheel nuts. NOTE: Ensure the tapered side of the wheel nuts face the wheel rim.

  • Page 82: Wheel Removal

    General Maintenance Wheel Removal 1. Park the vehicle on level ground and ensure the shift lever is in the “P” (Park) position. 2. Loosen the wheel nuts on the wheel to be removed. Do not remove the wheel nuts from the wheel studs. 3.

  • Page 83: Battery

    NOTE: You can perform your own battery maintenance if you are qualified to do so. If you do not feel qualified, take your vehicle to an authorized ARGO dealer for battery service. As with all other periodic maintenance, you are responsible for any charges associated with these services.
  • Page 84 General Maintenance WARNING Any time service is performed on a battery, the following must be observed: keep sparks, open flame, cigarettes, or any other flame away. Always wear safety glasses. Protect skin and clothing when handling a battery. When servicing a battery in an enclosed space, keep the area well-ventilated.

  • Page 85: Charging / Maintenance Charging

    ARGO dealer for further troubleshooting. Jump-Starting NOTE: ARGO does not recommend jump-starting a vehicle with a dead battery but rather to remove the battery, service it, and correctly charge it. WARNING Improper handling or connecting of a battery may result in severe injury including acid burns, electrical burns, or blindness as a result of an explosion.

  • Page 86: Spark Plug

    Consult an authorized ARGO dealer if the plug insulator is not a light brown color. To help prevent cold weather fouling (a buildup of carbon and unburned fuel on the spark plug) make sure you thoroughly warm up your vehicles engine before riding.

  • Page 87: Draining The V-Belt Cover

    NOTE: The V-belt and pulleys should be inspected every 600 miles and the belt replaced when necessary. Tires WARNING Always use the size and type of tires specified for your ARGO OHRV. Refer to the specifications chart in this manual for tire-related information and always maintain proper tire inflation pressure. Tire Replacement This vehicle has low-pressure tubeless tires.

  • Page 88: Muffler / Spark Arrester

    General Maintenance Muffler / Spark Arrester The muffler on this OHRV is equipped with a spark arrester which must be periodically cleaned. Refer to the intervals listed in the Maintenance Schedule and clean the spark arrester using the procedure listed below. WARNING Before service, wait for the muffler to properly cool to avoid possible burns.

  • Page 89: Headlight

    General Maintenance Headlight NOTE: The LED headlights are fragile and must be replaced as an assembly. HANDLE WITH CARE. To replace the headlight, use the following procedure: 1. Ensure the ignition switch is in the “OFF” position. 2. Using a 14 mm socket and open wrench, remove the bolt and nut securing the headlight assembly to the "L"...

  • Page 90: Taillight/Brakelight

    General Maintenance Taillight/Brake Light NOTE: The LED taillights are fragile and must be replaced as an assembly. HANDLE WITH CARE. 1. Disconnect the tailgate support cable. 2. Remove the support cable hold-down (A) using an 8 mm Allen wrench. 3. Remove the two (2) Phillips head fasteners (B).

  • Page 91: Checking / Adjusting Headlight Aim

    General Maintenance Checking / Adjusting Headlight Aim Headlights can be adjusted vertically and horizontally. The projected center of the LOW beam should be used for vertical and horizontal aiming. 1. Position the vehicle on a flat, level surface so the headlights are approximately 20 ft (6.1 m) from a vertical aiming surface.

  • Page 92: Fuses

    5. Close the fuse box cap. Ensure the locking tabs are secure. CAUTION Always replace a failed fuse with a fuse of the same type and rating. If the new fuse fails after a short period of use, consult an authorized ARGO dealer immediately. HEAD HI IGNITION TAIL F.P RELAY...

  • Page 93: Noise Regulation

    General Maintenance NOISE REGULATION TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED: Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

  • Page 94: Troubleshooting

    Troubleshooting Engine doesn’t turn over Possible Cause Solution Failed fuse Replace the fuse Low battery voltage Recharge battery to 12.5 VDC Loose battery connections Check all connections and ignition Loose solenoid connections Check all connections and ignition Engine turns over but fails to start Possible Cause Solution Out of fuel...
  • Page 95 Troubleshooting Possible Cause Solution Possible lean mixture fuel cause Low or contaminated fuel Add or change fuel, clean fuel system Low octane fuel Replace with recommended fuel Possible rich mixture fuel cause Fuel is very high octane Replace with lower octane fuel Engine stops or loses power Possible Cause Solution...

  • Page 96: Section 9 - Preparation For Storage

    SECTION 9 Preparation For Storage CAUTION Prior to storing your OHRV, it must be properly serviced to prevent rusting and component deterioration. Cleaning the Vehicle Frequent, thorough cleaning of your OHRV will not only enhance its appearance but will improve its general performance and extend the useful life of many components. 1.
  • Page 97 Storage Short Term Always store your vehicle in a cool, dry place and if necessary, protect it against dust with a porous cover. WARNING Storing the vehicle in a poorly ventilated room or covering it with a tarp while it is still wet, will allow water and humidity to seep in and cause rust. To prevent corrosion, avoid damp cellars, stables and area where strong chemicals are stored.

  • Page 98: Section 10 - Warranty

    Ontario Drive & Gear Limited (hereinafter “ARGO”) extends a limited warranty on each new ARGO vehicle and on each genuine ARGO part and accessory sold by an authorized ARGO dealer. The limited warranty on an ARGO vehicle is provided to the original retail purchaser;...
  • Page 99 If a warrantable condition appears to exist, the dealer will repair or replace, at ARGO’s option, including any related labor costs, all parts that are found to be warrantable and any other parts which the warrantable part caused to be damaged.

  • Page 100: Emissions Warranty

    Owner’s Responsibility: As the vehicle owner, you should also be aware that ARGO may deny you warranty coverage if your vehicle or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
  • Page 101 Emissions Warranty Coverage: This warranty begins on the date the vehicle is delivered to the first purchaser, or the date it is first used as a demonstrator, lease, or company vehicle, whichever comes first and continues for the time and mileage listed below: Time: 30 months OR Mileage: 5,000 kilometers (3,100 miles) whichever comes first.

  • Page 102: Maintenance Record

    Maintenance Record...
  • Page 104 WARNING Improper OHRV use can result in SEVERE INJURY or DEATH. ALWAYS USE NEVER USE NEVER EXCEED NEVER USE AN APPROVED ON PUBLIC MAXIMUM WITH DRUGS HELMET AND ROADS SEATING OR ALCOHOL PROTECTIVE CAPACITY OF GEAR ONE OPERATOR AND TWO PASSENGERS NEVER operate: •...
