INSTALLATION INSTRUCTIONS
Product
7160-1506-xx, 7160-1576-xx

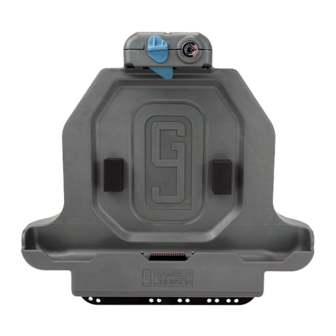

ET5X DOCKING STATIONS - 8" & 10"
This instruction sheet is for the ET5X docking stations only. For instructions on features,
set-up, and operation of the ET5X computers, please refer to the manual provided by
Zebra with the computer.
This docking station is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided with
each individual product.
This instruction sheet is for the following products:
Item No. 7160-1506-xx ET5X 8" No RF
Item No. 7160-1576-xx ET5X 10" No RF
7160-1506-0X
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Revision
Rev. C
INST-1003
Printing Spec: PS-001
Form
7160-1506-20
1 / 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gamber Johnson 7160-1576 Series
Summary of Contents for Gamber Johnson 7160-1576 Series
- Page 1 INSTALLATION INSTRUCTIONS Product Revision Form Rev. C INST-1003 7160-1506-xx, 7160-1576-xx ET5X DOCKING STATIONS - 8" & 10" Printing Spec: PS-001 This instruction sheet is for the ET5X docking stations only. For instructions on features, set-up, and operation of the ET5X computers, please refer to the manual provided by Zebra with the computer.
- Page 2 PRE-INSTALLATION RECOMMENDATOINS Conduct a "Bench Test" Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and software issues are resolved prior to installation: Make sure the computer is operational by itself. Insert computer into the docking station and verify that the computer is operating in the dock.
- Page 3 ET5X DOCKING STATION FEATURE IDENTIFICATON Release Button Slam Latch Barrel Key Lock Power Pogo Pin Ground Pogo Pin Bare Wire Leads Cable Restraint Bracket Docking Connector 7160-1506-0X 8-40vdc input USB 2.0 7160-1506-10 12VDC input 7160-1506-20 3 / 5 12VDC input HDMI Serial USB 3.0...
-
Page 4: Operation - Docking
DOCKING AND UNDOCKING THE COMPUTER OPERATION - DOCKING 1. Insert the bottom of the tablet into the bottom cavity of the dock. The walls on the dock will guide the tablet into place. Rotate Top 2. Rotate the top of the tablet into the dock, overcoming the resistance until the Release Button returns to the "Latched"... - Page 5 Regulatory Certification Information Regulatory Model #: 7160-1506, 7160-1576 GJ Model #'s: 7160-1506-00, 7160-1506-01, 7160-1506-02 7160-1506-10, 7160-1506-11, 7160-1506-20,7160-1576-00, 7160-1576-01, 7160-1576-02, 7160-1576-10, 7160-1576-11, 7160-1576-20 Descriptions: Dock-Zebra-ET5X Certification for 7160-1506-xx and 7160-1576-xx • EN 50498 • EN 50581 • EN 55032 • EN 62368 This device complies with Part 15 of the FCC Rules.
