Summary of Contents for Yard force LX SP170S-EU

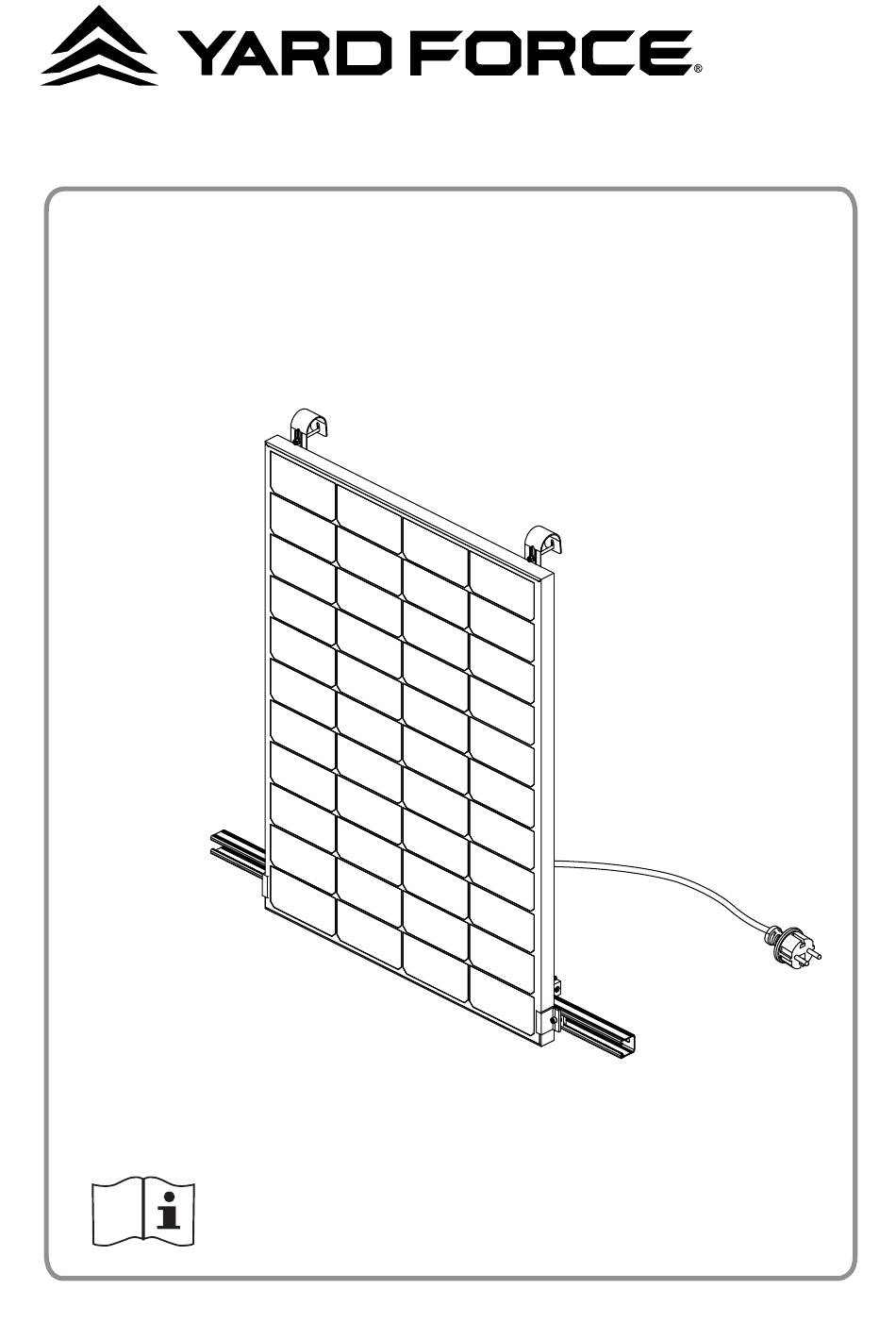

  • Page 1 LX SP170S-EU STARTER-SET 170 W INKL. MONTAGEMATERIAL STARTER SET 170 W INCLUDING MOUNTING MATERIAL...
  • Page 2 Originalanleitung Seite Translation of original Instructions Page...
  • Page 6: Table Of Contents

    INHALT Einleitung ����������������������������������������������������������������������������������������������������������������� 7 Bestimmungsgemäße Verwendung ����������������������������������������������������������������������7 Lieferumfang ������������������������������������������ �����������������������������������������������������������������8 Übersicht ������������������������������������������������������������������������������������������������������������������ 8 Technische Daten ���������������������������������������������������������������������������������������������������� 9 Symbole ������������������������������������������������������������������������������������������������������������������ 10 Allgemeine Sicherheitshinweise �������������������������������������������������������������������������� 12 Einbau ��������������������������������������������������������������������������������������������������������������������� 14 Geeignete Balkone ����������������������������������������������������������������������������������������������� 14 Erforderliche Werkzeuge �������������������������������������������������������������������������������������� 14 Schritt 1: Einbauposition festlegen ���������������������������������������������������������������������� 14 Schritt 2: Schiene auf dem Balkon befestigen������������������������������������������������������14 Schritt 3: Befestigen Sie die Haken und den Wechselrichter am Solarmodul�������15 Schritt 4: Anbringen des Moduls �������������������������������������������������������������������������...
  • Page 7: Einleitung

    EINLEITUNG Herzlichen Glückwunsch zum Kauf Ihres neuen Gerätes� Sie haben sich damit für ein hochwertiges Produkt entschieden� Dieses Gerät wurde während der Produktion auf Qualität geprüft und einer Endkontrolle unterzogen� Die Funktionsfähigkeit Ihres Gerätes ist somit sichergestellt� Die Betriebsanleitung ist Bestandteil dieses Produkts� Sie enthält wichtige Hinweise für Sicherheit, Gebrauch und Entsorgung�...
  • Page 8: Lieferumfang

    LIEFERUMFANG Die Abbildungen finden Sie auf der vorderen Umschlagseite� - Starter-Set 170W inkl� Montagematerial - Bedienungsanleitung und Garantiekarte ÜBERSICHT Solarmodul 2x Haken 2x lange Schraube TX M6x65 4x kurze Schraube TX M6X16 6x Mutter M6 2x Klemme mit Schraube M8x30 2x Mutter M8 2x Schraube TX M10X20 2x Madenschraube TX M10X20...
  • Page 9: Technische Daten

    TECHNISCHE DATEN PV-Modul: Solarmodul Modulnummer ����������������������������������������������������������������������������������������������� SP 170 Max�Leistung (Pmax) ����������������������������������������������������������������������������������������������������������170 W Nennspannung (Vmpp) �����������������������������������������������������������������������������������������������25,21 V Betriebsstrom (Impp) ����������������������������������������������������������������������������������������������������6,77 A Maximaler Nennstrom der Sicherung ������������������������������������������������������������������������������25 A Leerlaufspannung (Voc) ����������������������������������������������������������������������������������������������31,03 V Kurzschlussstrom (Isc) ���������������������������������������������������������������������������������������������������7,0 A PV-Modul-Wirkungsgrad �������������������������������������������������������������������������������������������������� 20,5 % Anschlusskabel ������������������������������������������������� DC-Anschlussstecker kompatibel, 2 x 2,5 mm² Nominale Betriebstemperatur der Zellen (NOCT)�����������������������������������������������������������...
  • Page 10: Symbole

    SYMBOLE GEFAHR! Dieses Symbol mit dem Signalwort „GEFAHR“ bezeichnet eine Gefährdung mit einem hohen Risikograd, die, wenn sie nicht vermieden wird, eine schwere Verletzung oder den Tod zur Folge hat� WARNUNG! Dieses Symbol mit dem Signalwort„WARNUNG“ bezeichnet eine Gefährdung mit einem mittleren Risikograd, die, wenn sie nicht vermieden wird, eine schwere Verletzung oder den Tod zur Folge haben kann�...
  • Page 11 SYMBOLE Lesen Sie die Bedienungsanleitung� Gleichstrom Wechselstrom Lesen Sie die Bedienungsanleitung sorgfältig durch� Recyceln Sie unbrauchbare Materialien, anstatt sie als Müll zu entsorgen� Alle Geräte, Schläuche und Verpackungen sollten sortiert, zum lokalen Recyclingzentrum gebracht und umweltgerecht entsorgt werden� Vorsicht: Verbrennungsgefahr durch hohe Temperaturen! Sicherheitshinweise Vorsicht : Stromschlaggefahr! Energiespeicher, 1...
  • Page 12: Allgemeine Sicherheitshinweise

    ALLGEMEINE SICHERHEITSHINWEISE Machen Sie sich vor der ersten Benutzung des Produkts mit allen Bedien und Sicherheitshinweisen vertraut� Händigen Sie alle Unterlagen bei Weitergabe des Produkts an Dritte mit aus� Unter üblichen Bedingungen kann ein PV Modul einen höheren Strom und/oder eine höhere Spannung liefern, als bei Normprüfbedingungen angegeben�...
  • Page 13 ALLGEMEINE SICHERHEITSHINWEISE zu verringern� Bitte lesen Sie diese Hinweise vor der Benutzung dieses Elektrogerätes vollständig durch und bewahren Sie die Sicherheitshinweise auf� GEFAHR! Ein aus der Höhe herabfallendes Solarmodul kann zu schweren Verletzungen, zum Tod oder zu Sachschäden führen� Überprüfen Sie das Montagesystem mindestens einmal im Jahr�...
  • Page 14: Einbau

    EINBAU Geeignete Balkone Bitte überprüfen Sie vor dem Auspacken, ob Ihr Balkon mit dem beiliegenden Montagesystem kompatibel ist: Die Geländerschiene selbst und deren Befestigung am Gebäude sind für das zusätzliche Gewicht geeignet und zugelassen� Dies gilt auch für die Windlast� Bitte prüfen Sie in den technischen Daten die maximal zulässige Windzone und informieren Sie sich bei den zuständigen Behörden über Ihre lokale Windzone, um sicherzugehen�...
  • Page 15: Schritt 3: Befestigen Sie Die Haken Und Den Wechselrichter Am Solarmodul

    EINBAU Stellen Sie die Klemmen vorsichtig so ein, dass die Schiene waagerecht liegt� Ziehen Sie nun die Schrauben an, mit denen die Klemmeinheiten an den Balkonstreben befestigt sind, und ziehen Sie dann die Schrauben an, die die Geländerführung halten� Schritt 3: Befestigen Sie die Haken und den Wechselrichter am Solarmodul Packen Sie den Karton aus�...
  • Page 16: Verbinden Mit Der Smart Life App

    VERBINDEN MIT DER SMART LIFE APP Stellen Sie sicher, dass die oben genannte physische Installation abgeschlos- sen ist. Die App-Verbindung sollte an einem sonnigen Tag erfolgen. Der Verbindungsvorgang sollte innerhalb von 3 Minuten erfolgen. Wenn die App-Verbindung nicht innerhalb von 3 Minuten hergestellt wird, schließen Sie einfach Ihren Mikro-Wechselrichter und Ihr Solarmodul erneut an und starten Sie dann den Verbindungsvorgang erneut.
  • Page 17 VERBINDEN MIT DER SMART LIFE APP 1� Der Wechselrichter ist vom Solarmodul getrennt� 2� Die App wurde erfolgreich verbunden� 3� Der App-Verbindungsvorgang wird nicht innerhalb von 3 Minuten abgeschlossen� Um Bluetooth zu aktivieren, verbinden Sie den Wechselrichter einfach erneut mit dem Solar- modul�...
  • Page 18: Reinigung Und Wartung

    VERBINDEN MIT DER SMART LIFE APP aufrufen� Sie können Ihre gewünschte Ausgangsleistung über die Option „Ferneinstellung“ festlegen� Um sicherzustellen, dass es sich um Ihren eigenen Betrieb handelt, ist nun eine zweite Verifizierung/Passwort erforderlich� Das Passwort ist Ihre Geräte-ID, die eindeutig ist� Wichtig! Nachdem Sie den Wechselrichter ausgewählt haben, finden Sie oben rechts das �...
  • Page 19: Entsorgung

    ENTSORGUNG Die Verpackung besteht aus umweltfreundlichen Materialien, die Sie über die örtlichen Recyclingstellen entsorgen können� Beachten Sie die Kennzeichnung der Verpackungsmaterialien bei der Abfalltrennung, diese sind gekennzeichnet mit Abkürzungen (a) und Nummern (b) mit folgender Bedeutung: 1–7: Kunststoffe/20–22: Papier und Pappe/80–98: Verbundstoffe�...
  • Page 20: Original-Eu Konformitätserklärung

    Konformitätserklärung Hiermit bestätigen wir,dass das Solarmodul SP 170 PV Micro-Wechselrichter MW 300 in der Ausführung LX SP170S-EU folgenden einschlägigen EU-Richtlinien in ihrer jeweils gültigen Fassung entsprechen: 2011/65/EU • 2014/53/EU Um die Übereinstimmung zu gewährleisten, wurden folgende harmonisierte Normen sowie nationale Normen und Bestimmungen angewendet:...
  • Page 21 CONTENT Introduction..........................22 Intended Use..........................22 Extent of the delivery......................23 Overview.............................23 Technical data..........................24 Symbols............................25 General Safety Directions.....................27 Installation..........................29 Suitable Balconies.........................29 Required tools........................29 Step 1: Decide installation position...................29 Step 2: Attach rail to the balcony..................29 Step 3: Attach hooks and inverter to solar panel............30 Step 4: Place the panel......................30 Step 5: Electrical connections....................30 Connecting the inverter to the Smart Life app............31...
  • Page 22: Introduction

    INTRODUCTION Congratulations on the purchase of your new device� With it, you have chosen a high quality product� During production, this equipment has been checked for quality and subjected to a final inspection� The functionality of your equipment is therefore guaranteed� The operating instructions constitute part of this product�...
  • Page 23: Extent Of The Delivery

    EXTENT OF THE DELIVERY The illustrations can be found on the front foldout page� - Starter set 170W including mounting material - Instruction manual & Warranty card OVERVIEW Solar panel 2x hook 2x long bolt TX M6x65 4x short bolt TX M6X16 6x nut M6 2x clamp with bolt M8x30 2x nut M8...
  • Page 24: Technical Data

    TECHNICAL DATA PV module: Solar panel module number����������������������������������������������������������������������������������������������SP 170 Max� power (Pmax)�������������������������������������������������������������������������������������������������������������170 W Full power Voltage (Vmpp)�����������������������������������������������������������������������������������������25�21 V Max� current (Impp)������������������������������������������������������������������������������������������������������6�77 A Maximum overcurrent protection rating�������������������������������������������������������������..��������25 A Open-circuit voltage (Voc)�����������������������������������������������������������������������������������������31�03 V Short-circuit current (Isc)�����������������������������������������������������������������������������������������������7�0 A PV module efficiency���������������������������������������������������������������������������������������������������������20�5 % Connection cable������������������������������������������������������������DC connecter compatible, 2 x 2�5 mm² Nominal operating temperature of the cells (NOCT)������������������������������������������������������...
  • Page 25: Symbols

    SYMBOLS DANGER! This symbol with the signal word “DANGER“ indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death� WARNING! This symbol with the signal word “WARNING“ indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death�...
  • Page 26 SYMBOLS Read through the instruction manual carefully� Recycle unwanted materials instead of disposing of them as waste� All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way� Caution: High temperature burns! Direct Current Alternating current Safety Information...
  • Page 27: General Safety Directions

    GENERAL SAFETY DIRECTIONS Please familiarise yourself with all instructions for use and safety notices before using the product for the first time� When passing this product on to third parties, please be sure to include all documentation� Under normal conditions, a PV module can deliver a higher current and/or a higher voltage than specified under standard test conditions�...
  • Page 28 cause severe injuries or death, or property damage� Check the mounting system at least once a year� Ensure all screws are tightened properly and no components show wear and tear� WARNING! This product is a PV-module with integrated electronics� Changes and replacement of any part shall only be performed according manufacturer' s instruction to avoid hazards�...
  • Page 29: Installation

    INSTALLATION Suitable Balconies Before unpacking, please verify that your balcony is compatible with the included mounting system: The hand rail itself and its connection to the building is capable and approved to carry the added weight� This must include the wind force� Please check the technical specifications for the maximum suitable wind zone, and verify the local wind zone with your local authorities to verify�...
  • Page 30: Step 3: Attach Hooks And Inverter To Solar Panel

    INSTALLATION Step 3: Attach hooks and inverter to solar panel Unpack the carton box� To prevent damage to the solar panel, place it on a soft matt� Do not step on the solar panel� Verify that the contents match the scope of delivery� Attach the hooks to the solar panel, using two short screws (3), and to two nuts (3)�...
  • Page 31: Connecting The Inverter To The Smart Life App

    CONNECTING TO THE SMART LIFE APP Ensure the above physical installation is completed. The app connection should be conduct under a sunny day. Connection operation should be done within 3 mintues. If app connection is not completed within 3 minutes, just reconnect your micro-inverter and solar panel, and then re-start connecting operation.
  • Page 32 CONNECTING TO THE SMART LIFE APP Below are the LED display rules : LED light status Status explanation Fault in the ground fault circuit breaker (GFDI) Solid red: is detected, and hardware error is detected Solid green light No WIFI connection Red light blinking (0�2s on + 0�8s off, each DC ports errors are detected cycle = 1s)
  • Page 33: Cleaning And Maintenance

    CONNECTING TO THE SMART LIFE APP „Disconnecting the device and deleting data from the app“ Privacy policy The complete data protection guideline can be found under the tab in the field „Privacy policy“� Disconnecting the device and deleting data from the app 1�...
  • Page 34: Disposal

    DISPOSAL Packaging is made of environmentally friendly materials, which you be disposed through your local recycling facilities� Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98:composite materials�...
  • Page 35: Translation Of The Original Ec Declaration Of Conformity

    We hereby confrm that the Solar module SP 170 PV Micro MW 300 in model LX SP170S-EU conform with the following applicable relevant version of the EU guidelines: 2011/65/EU • 2014/53/EU In order to guarantee consistency, the following harmonised standards as well as...
  • Page 36 MEROTEC GmbH Otto-Brenner-Straße 8 47877 Willich, Deutschland...
