Valtek GS
3. You can alternatively hook a tri-
ple-leg sling into the lifting rings
mounted on the actuator (Actua-
tor sizes 500 and 700 cm

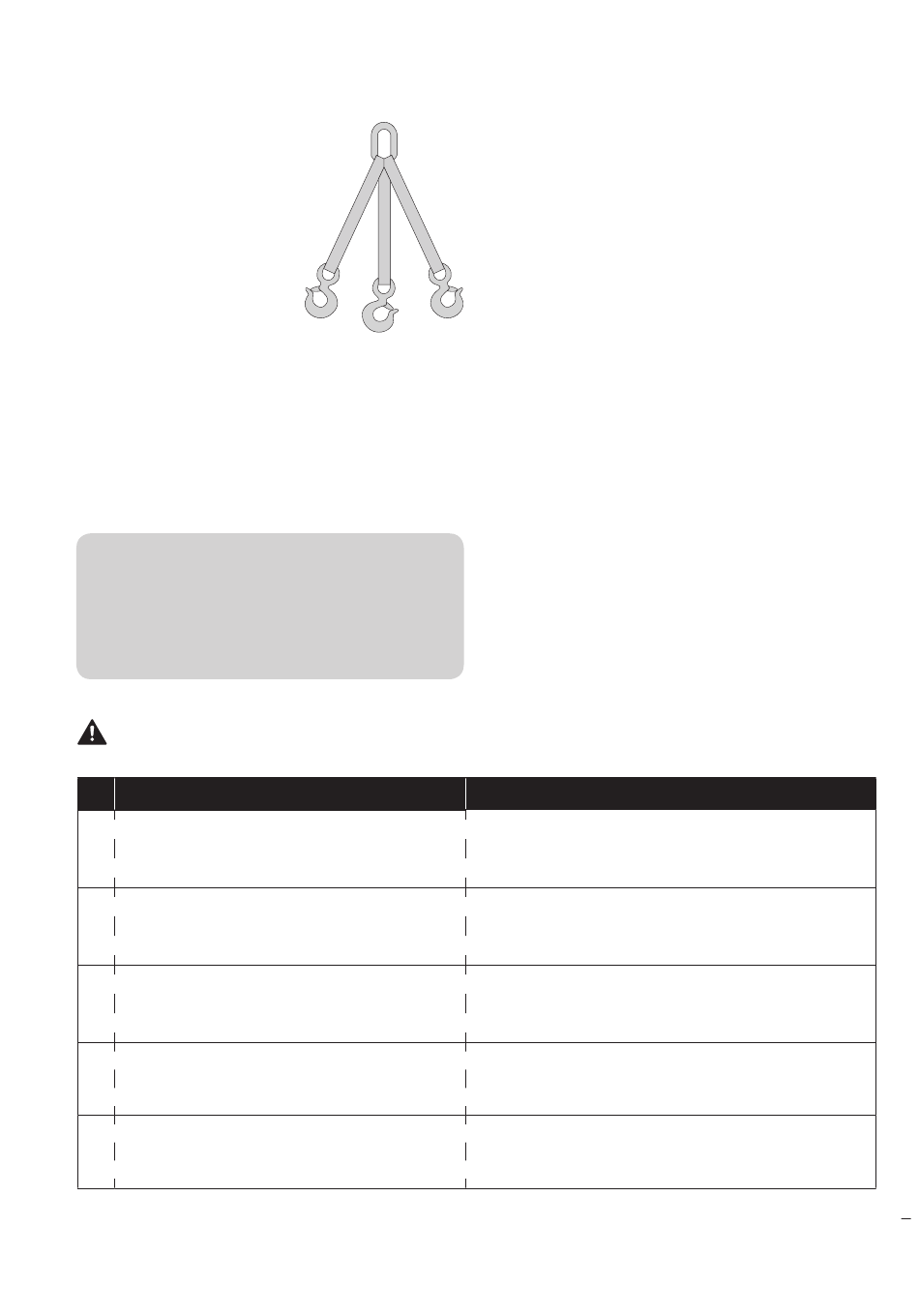

Figure 5: Triple-leg sling
4. Upon removing the control valve from the packaging,
we recommend that you:

9 Installation

The control valve must be installed and commis-
sioned by qualified staff - personnel who are fa-
miliar with the installation, commissioning and
operation of this product and possess the rele-
vant qualifications in their field of activity.
Prior to installation of the valve, we require, that you check the following conditions to reduce the risk of malfunction and
safety related incidents.
No.
1 Confirm that the nominal / operational data on the
serial plate matches the operational data of the
facility.
2 Confirm that the line is clear of dirt, welding slag,
chips, scale or other foreign material.
3 Confirm the piping flanges are coaxial, parallel, and
correspond with the face-to-face dimension of the
valve.
4 Confirm the piping is routed correctly and the valve is
free of additional piping forces.
5 Confirm that the control valve can be installed in an
upright position whenever possible.
FCD VLEEIM0300-05 (EN/A4) November 2022
).
2
Check
Table 1: Basic safety massages for installing the valve (continued on next page 6)
• Promptly touch up any damage to the corrosion pro-
tection.
• Contact your shipper immediately to report any
damage.
• Call your Flowserve representative if you experience
any problems.
• Do not remove the protective covers from the body
flanges of the control valve or from the instrument
ports of the actuator and accessories until the valve
is ready for installation at the site.
Possible malfunction or safety related incident
An operational mismatch can cause considerable damage to
the valve or may lead to a failure at the facility.
The risk of control valve damage due to foreign particles will be
reduced if a suitable strainer is installed upstream of the valve.
(Suggested mesh size of 0.004 inch (0,1 mm)
Incompatible sizing may result in excessive tension, valve
malfunction or flange connection leakage.
Incorrect routing may result in leakage and / or potential valve
failure.
Non-upright positioning may increase wear in the packing,
resulting in leakage and premature wear.
