Valtek GS
Reassembling Type A bellows:
Carefully lower the bonnet (40) onto the plug. Install
a new head gasket (59) and insert the bellows seal
assembly (6) from the top of the bonnet (40). Finger
tighten the stem (6) clockwise onto the plug (50).
Tighten the stem (6) using a suitable torque wrench.
Reassembling Type B bellows:
Install the bellows seal assembly (6) clockwise onto
the plug (50). Tighten the stem (6) using a suitable
torque wrench.
Insert the bellows seal assembly (6) type B through
the underside of the bonnet (40), install a new profile
ring (60) and seal carrier (91) on top. Turn hex nut (60)
clockwise and finger tighten.
(See Section 14: Required Torques, for plug and stem)
20. Install the new bonnet gasket (58).
21. Carefully lower the pre-assembled bonnet in the body
of the valve (See page 18 for pressure balanced and
MultiStream trim).
22. Install and finger tighten the bonnet nuts (114) to the
bonnet bolts (108).
23. Install the new flat gasket (59).
24. Carefully lower the head (7) onto the stem and bonnet.
25. Install and finger tighten the nuts (110) to the studs (106).
26. Install the packing box ring (93) and the new packing (88).
Install and push two packing rings
NOTICE
consecutively using the Tamping
Tool and pre-tighten it using the Compression Tool.
Repeat the procedure with remaining rings. Rotate
each ring 180° from the overlapping point. Make sure
each ring is clean. Dirty rings result in stem leakage.
(See Table 18, Page 23)
27. Install the upper stem guide (87), Belleville springs
(109), and the packing follower (80). Tighten the
packing follower with your fingers clockwise until
resistance can be felt.
The Belleville springs (109) must be
NOTICE
stacked in series.
28. Tighten the bonnet nuts (114) in four steps - 30%,
60%, 100%, and all around 100% - using a crosswise
pattern (See Section 14: Torque Requirements).
FCD VLEEIM0300-05 (EN/A4) November 2022
8

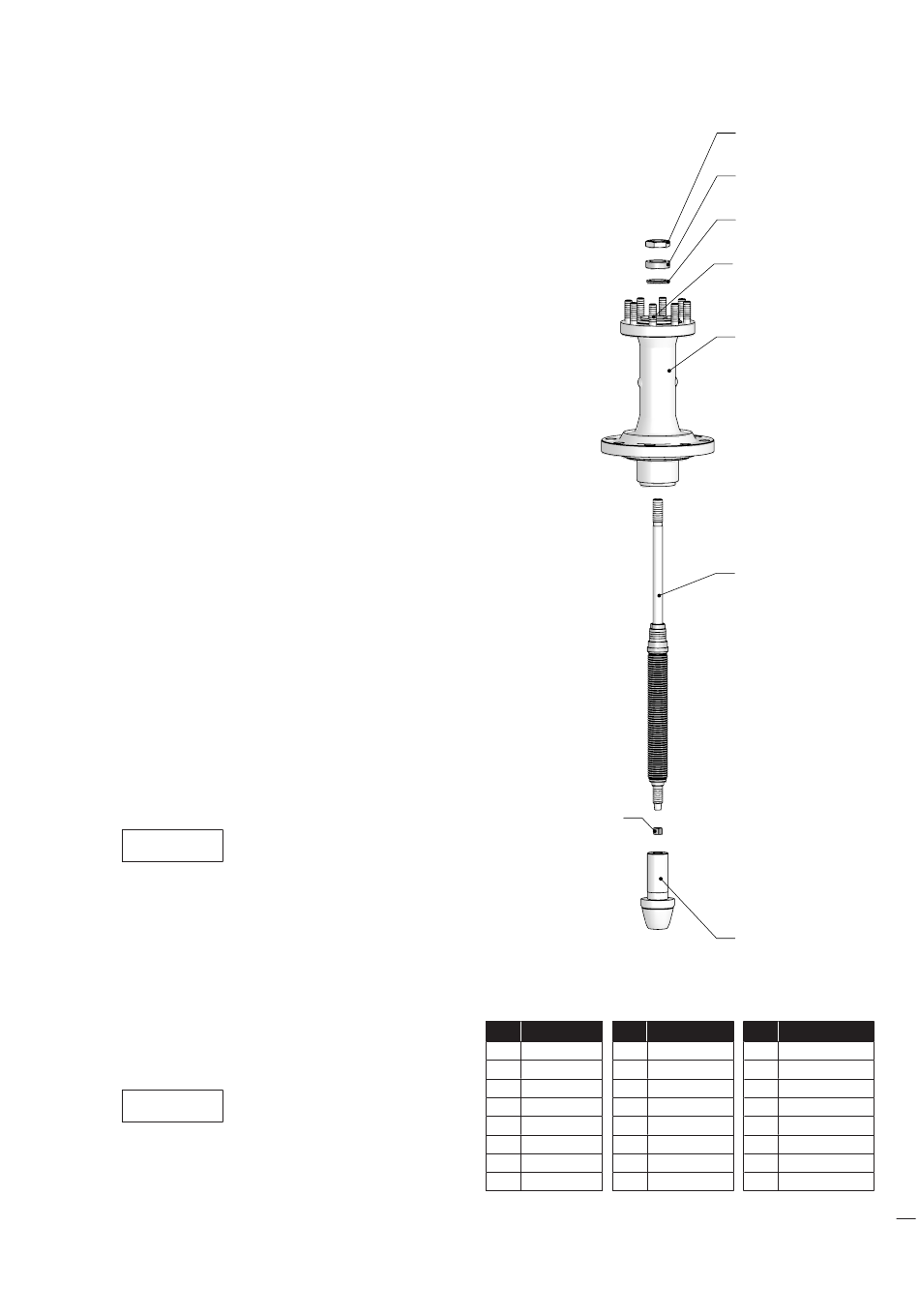

Figure 11: Disassemble / Reassemble the valve with bellows seal assembly for
type B design
Item Part Item Part
1 Body 50 Plug
6 Stem 55 Profile ring
7 Head 58 Bonnet gasket
8 Lock bushing 59 Head gasket
20 Seat ring 60 Profile ring
40 Bonnet 80 Packing follower
42 Plug screw 87 Upper stem guide
48 Plug gasket 88 Packing
Table 13: Valve parts with bellows seal
113
91
60
106
40
6
50
Item Part
91 Seal carrier
93 Packing box ring
106 Stud bolt
108 Stud bolt
109 Belleville spring
110 Hex nut
113 Hex nut
114 Hex nut
