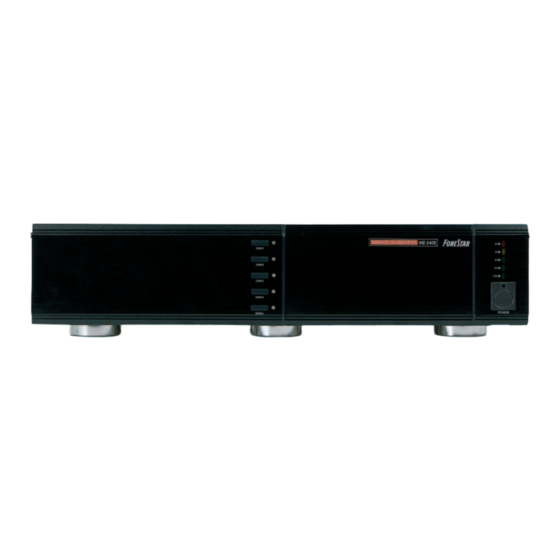

  • Page 1 MZ-240E AMPLIFIER WITH 5-ZONE EXTENSION N Instruction manual...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    All rights reserved by FONESTAR, S.A. DESCRIPTION The amplifier with 5-zone extension MZ-240E amplifies background music or paging if the system is used in background music mode or for exclusivley amplifying background music when used in background music and paging mode, in this case another amplifier such as the MZ-240A should be used to amplify paging.

  • Page 4: Controls And Functions

    CONTROLS AND FUNCTIONS FRONT PANEL 1 – ZONE SELECTORS: buttons for choosing the zones that the selected musical source or paging is going to be sent to, depending on the case. By pressing once background music is activated in the zone (green indicator) and pressing twice, in background music and paging mode, the zone is activated for paging (red indicator).

  • Page 5: Back Panel

    4 – IN: input for the audio signal from the BGM EXT AMP output from the MZ-5240M P.A. unit. 2 x RCA connector. 5 – OUT: output for the audio signal to another MZ-240E if they are being connected in cascade. 2 x RCA connector.

  • Page 6: Connection Diagram

    Example of connection for a complete 20-zone paging and background music system. INSTRUCTIONS FOR USE When more than one MZ-240E amplifier with zone extension is connected to the system, each one will need a different address to be allocated to it using the ADDRESS microswitches on the back panel.

  • Page 7: Specifications

    SPECIFICATIONS MZ-240E CHARACTERISTICS 5-zone extension amplifier. Independent volume control in each zone. POWER 480 W maximum, 240 W RMS INPUTS 1 auxiliary line, 2 x RCA 1 EMC amplifier, 100 V line Euroblock 1 system control, RJ-45 OUTPUTS 1 auxiliary line, 2 x RCA...

  • Page 8: Declaration Of Conformity

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
