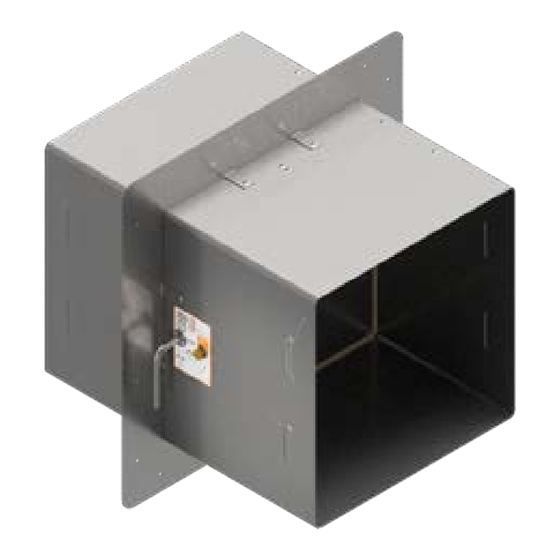

FD-R Series
Installation, Operation and Maintenance Instructions
THESE INSTALLATION INSTRUCTIONS MUST BE READ IN THEIR ENTIRETY BEFORE COMMENCING WORK
TO ENSURE COMPLIANCE.
Dampers will only be CE marked if:
• Installed as tested
• No deviation to design
• These instructions are followed
Third party approval will be required for any non-tested proposal.
Before commencing installation, the "Installation Check List" within DW/145 should be referred to. See "Damper Installation
Certificate" within section 11.
MANUFACTURERS OF AIR, FIRE AND SMOKE CONTROL PRODUCTS
Advertisement
Related Manuals for Maico BSB FD-R Series
Summary of Contents for Maico BSB FD-R Series
- Page 1 FD-R Series Installation, Operation and Maintenance Instructions THESE INSTALLATION INSTRUCTIONS MUST BE READ IN THEIR ENTIRETY BEFORE COMMENCING WORK TO ENSURE COMPLIANCE. Dampers will only be CE marked if: • Installed as tested • No deviation to design • These instructions are followed Third party approval will be required for any non-tested proposal.
- Page 2 FD-R Series FD-R Damper Installation, Operation & Maintenance Instructions. 1. Storage Dampers received on site should be stored in a purpose made storage area, where they can be protected from moisture, dust, and impact damage until required. Dampers are designed for installation within internal normal dry filtered H&V systems.
- Page 3 FD-R Series FD-R Damper Installation, Operation & Maintenance Instructions. 6. Dry wall Installation Procedure DRY WALL SCREWS AT 300 MAX CTRS TRACK (ALL ROUND) DRY WALL SCREWS AT 300 MAX CTRS TRACK (ALL ROUND) FIGURE 1 FIGURE 1 ANGLE FRAME ANGLE FRAME DRY WALL SCREWS TO AFFIX LINED OPENING...
- Page 4 FD-R Series FD-R Damper Installation, Operation & Maintenance Instructions. 7. Masonry wall and floor Installation Procedure MASONRY WALL MASONRY FLOOR SECTION VIEW (APPLIES TO SIDES/TOP/BOTTOM.) SECTION VIEW (APPLIES TO SIDES/TOP/BOTTOM) STEEL FIXINGS LODEN n 5 x 50 TO AFFIX THE ANGLE FRAME TO THE WALL.
- Page 5 FD-R Series FD-R Damper Installation, Operation & Maintenance Instructions. 8. Commissioning 8.1. It is recommended that the blade is only opened and locked in position once the damper has been installed into the fire barrier and ductwork is connected. If set and locked open before installation, handling of the casing can cause the fusible link mechanism to actuate and close the blade.
- Page 6 FD-R Series FD-R Damper Installation, Operation & Maintenance Instructions. 10. Fault Finding Symptom Fault Corrective Action Inspect / remove items. Internal foreign object fouling blade. Clean and lubricate. (Maintenance and test section 9). Damper blade does not Casing dented/damaged or Minor damage may be corrected carefully with a soft mallet.
- Page 7 FD-R Series FD-R Damper Installation, Operation & Maintenance Instructions. 11. Installation Checklist Project Name: ..................Date of Installation:..............Installation Address ............................Postcode: ......Location Identification (Section/Floor/Room): ............................The installer should complete this installation certificate when installing BSB Engineering dampers. A separate certificate must be completed for each individual damper.
- Page 8 FD-R Series FD-R Damper Installation, Operation & Maintenance Instructions. Other Air, Fire and Smoke Control Products in the BSB Range: LD/LDN Series Lobby Dampers...
