Minimum switching capacity of relay contact: 230 VAC / 2A. Remove J1 bridge on A2 control circuit board. Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 2...
Page 3
> 1,100 ppm, ventilation unit switches to ventilation level 3. Ventilation level 2 is shown at the room air control. < 1,000 ppm, ventilation unit switches from ventilation level 3 to ventilation level 2. Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 3...
Page 4
W3" - connecting cable for differential pressure controller (provided by customer) ABL - exhaust air ZUL - supply air Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 4 right to make technical modifications without giving prior notice...
Page 5
The ventilation unit is factory-set for the connection of the RLS 1 WR room air control. Jumper 8 is set on the control circuit board A2. Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 5...
Page 6
Set the switching point at the hygrostat manually. Never connect a hygrostat and a CO2 sensor at the same time. Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 6...
Page 7

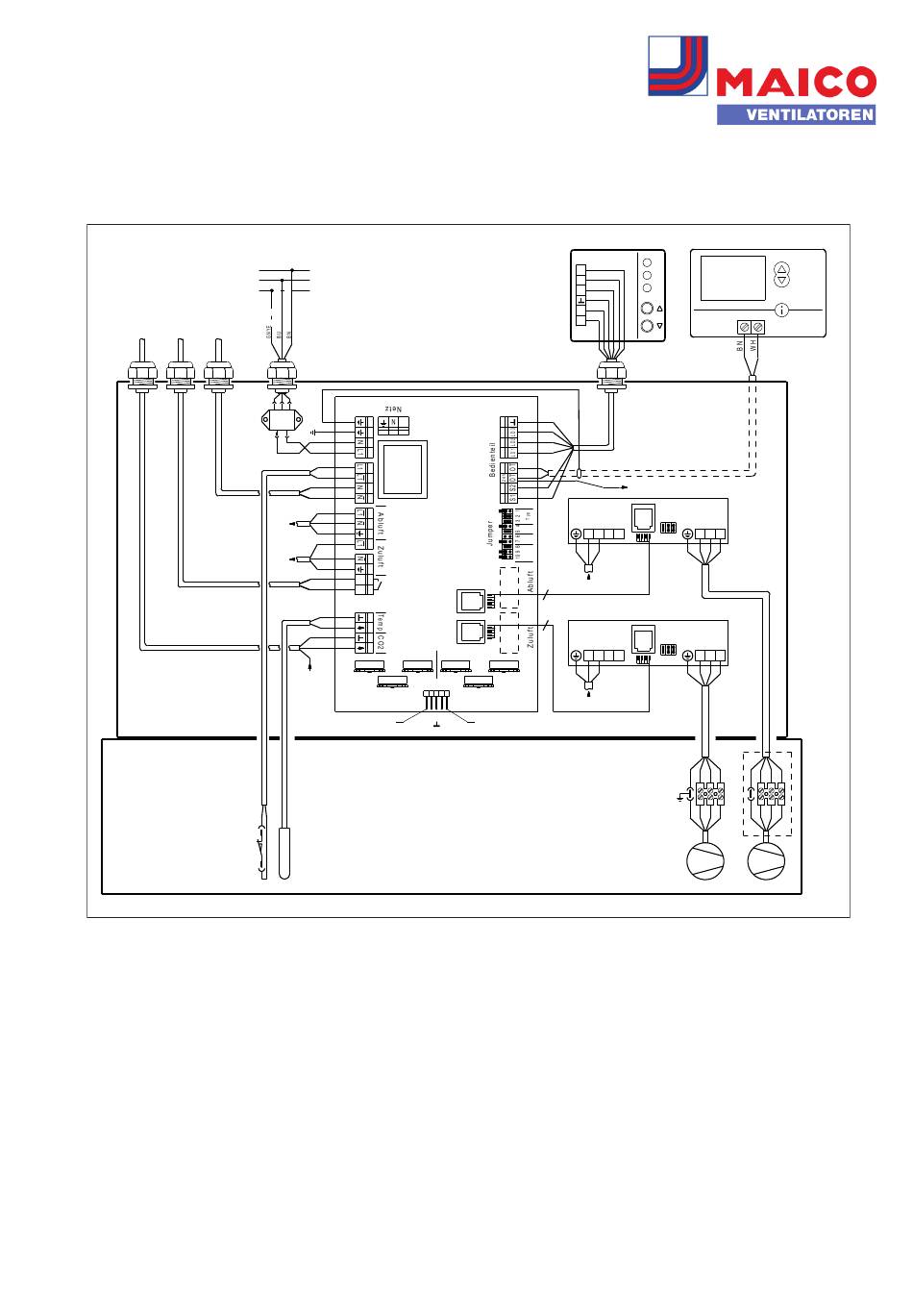

WR 600 Wiring diagram for WR 600 ventilation with RLS 1 WR room air control Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 7 right to make technical modifications without giving prior notice...
Page 8
N - mains BA - operating display BT - operator unit Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 8 right to make technical modifications without giving prior notice...
Page 9
WR 600 Wiring diagram for WR 600 ventilation with RLS 2 F room air control Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 9 right to make technical modifications without giving prior notice...
Page 10
N - mains BA - operating display BT - operator unit Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 10 right to make technical modifications without giving prior notice...
Page 11
Set the switching point at the hygrostat manually. Never connect a hygrostat and a CO2 sensor at the same time. Version: 2019-05-22 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the Page 11...
Page 12
WIRING DIAGRAM WR 600 WR 600 ventilation unit with RSL 1 WR or RLS 2 F room air control and electric air heater If the heat recovery unit is installed in a passive-energy house, a heat register in the outside air is necessary, in order to guarantee a permanent air exchange.
