Date: 5th November
2019
Document number: DPRO-CS-1997-2

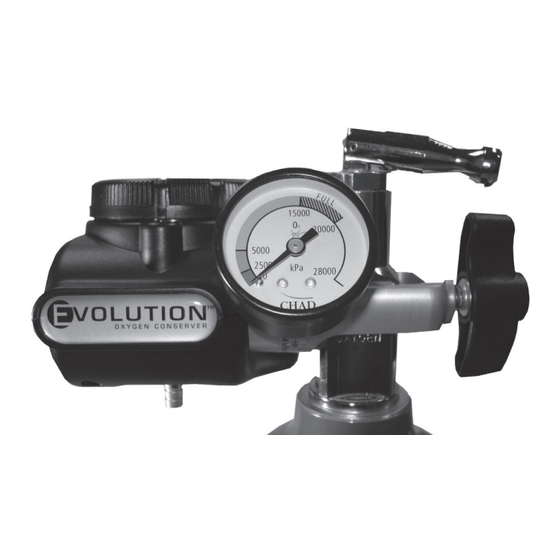

CHAD EVOLUTION™
OXYGEN CONSERVING DEVICE (OCD)
Quick Reference Guide

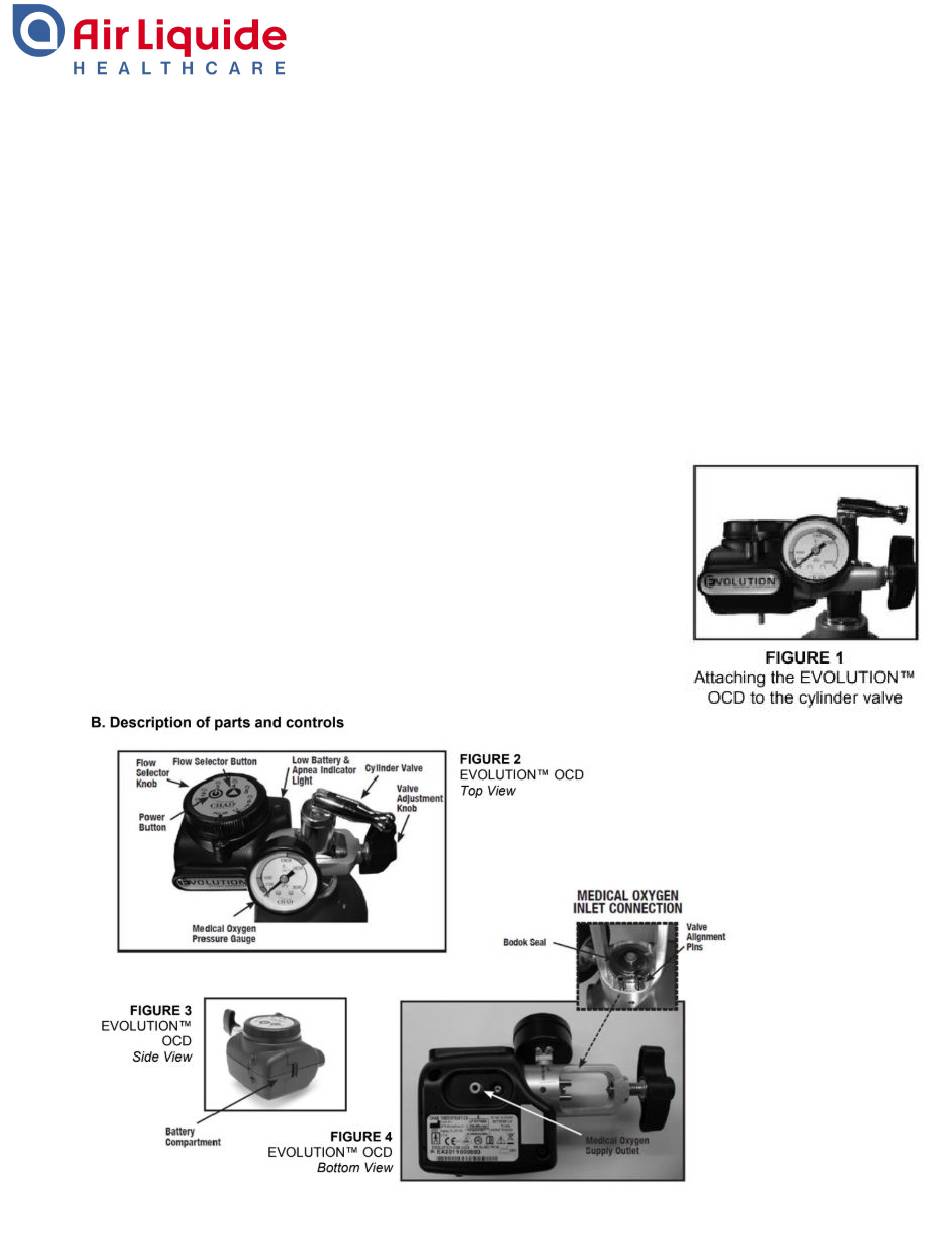

Connecting the EVOLUTIONTM to the cylinder
Step 1: Loosen the valve adjustment knob
Step 2: Lower the EVOLUTIONTM OCD over any Pin Index valve with the
alignment pins toward the holes on the cylinder valve [Fig. 1]
Step 3: Align the two (2) pins and Bodok Seal with the corresponding
holes on the cylinder valve
Step 4: W hile holding the unit in place, tighten the valve adjustment
knob by turning clockwise [Fig. 1]
Description of parts and controls
DPRO-CS-1997-2
Advertisement
Related Manuals for Air Liquide CHAD EVOLUTION
Summary of Contents for Air Liquide CHAD EVOLUTION
- Page 1 Date: 5th November 2019 Document number: DPRO-CS-1997-2 CHAD EVOLUTION™ OXYGEN CONSERVING DEVICE (OCD) Quick Reference Guide Connecting the EVOLUTIONTM to the cylinder Step 1: Loosen the valve adjustment knob Step 2: Lower the EVOLUTIONTM OCD over any Pin Index valve with the ...
- Page 2 Installing and replacing the battery The EVOLUTION™ OCD uses advanced technology that prolongs battery life through efficient power use. With normal use of four (4) hours per day at any setting, your batteries should last a minimum of 2 years. ...
- Page 3 Press the power button to turn off the unit. Step 2: Remove the nasal cannula Supplied by: AIR LIQUIDE Healthcare Pty. Ltd. 1300 36 02 02 www.airliquidehealthcare.com.au DPRO-CS-1997-2 ...
