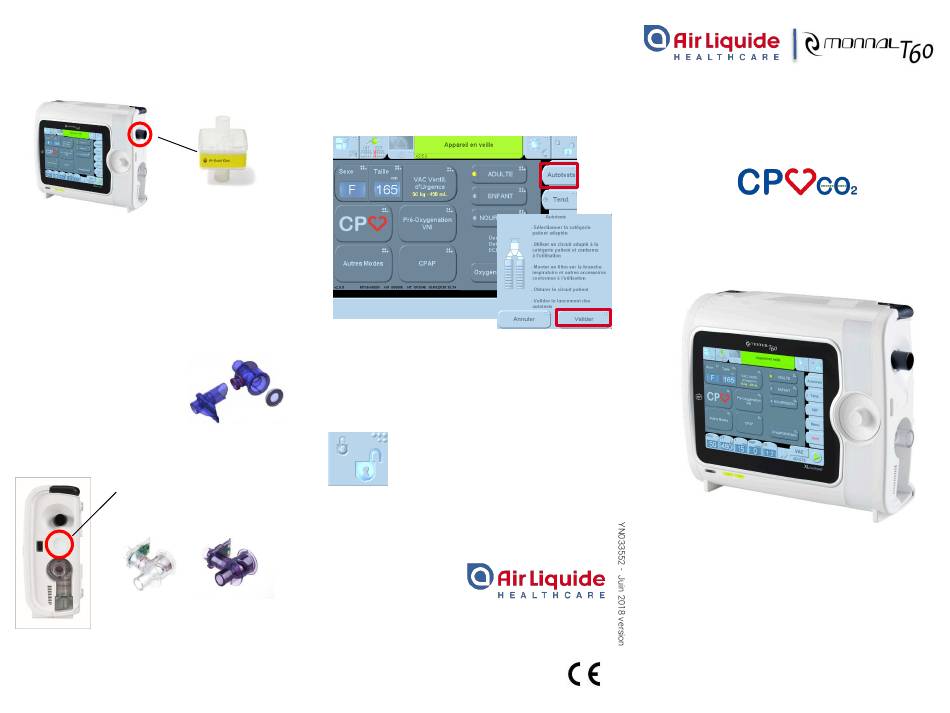

Air Liquide MONNAL T60 Quick Manual

Assembly instructions

• Bacteriological filter

It is recommended to use a bacteriological filter on
the inspiratory output, to limit the risk of retro-
contamination (see user manual).

• Expiratory valve MONNAL EVA

Assembly :
• Integrate the silicone disks
into the membrane (1)
(3)
• Reposition the membrane in
the valve body (2)
• Integrate the flow sensor (3)
at the valve body (2)
Extraction :
button
Single use
valve
Cleaning protocol (see user manual)

• Autotests

It is recommended to carry out this test after each
patient circuit and / or expiratory valve replacement.
Press Autotests
(2)
Close the patient circuit, validate to start the testing
(3) sequence (<2 min).
(1)
After the beep and the message, remove the cap to
end the tests.
press the eject
www.device.airliquidehealthcare.com
Contact
Autoclavable
Air Liquide Medical Systems
Parc de Haute Technologie
valve
6, rue Georges Besse
92 182 Antony Cedex - France
Phone : +33 (0)1 40 96 66 00
Hotline : 0820 14 63 59
Note: pressing the padlock locks the
touchscreen.
To unlock = press the padlock and confirm
with the rotary knob.
Quick guide
This guide does not replace the user manual
Intended for all the persons authorized to adjust settings
