Air Liquide TAKEO2 User Manual

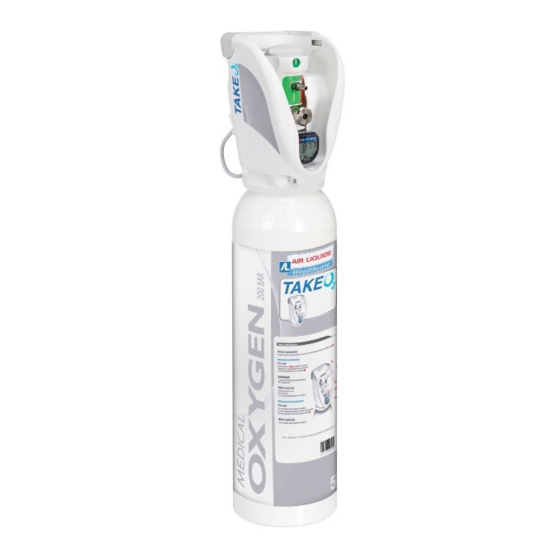

TAKEO are ready to use medical oxygen cylinders complete
TM
2
with an integrated regulator - flow meter and a digital pressure
indicator, which are intended to supply regulated medical
oxygen to a patient or a medical device, either through a flow
regulated barbed outlet or a fixed flow sleeved outlet.
Before using TAKEO , read and follow the instructions related
TM
2
to its use.

Trouble shooting guide

Problem Possible cause Response to be taken
Display of remaining Use of respirator or Impossible to calculate the remaining
time not stabilised on-demand valve, or time because the flow rate is not
on TIPI at a to low flow rate continuous. Rely on the bar graph
readings only.
Check that the flow selector knob or any
attached device has not been left ON. If
contents are depleted, replace cylinder
with a full one.
Cylinder is empty
If it' s a first time use, check the pressure
gauge. If in red section, immediately
contact custom service and quarantine
the cylinder.
No flow of gas
DO NOT attempt to clear the blocked
Outlet nozzle may
nozzle. Immediately contact customer
be blocked
service and quarantine the cylinder.
Rotate the flow selection knob until the
Flow selector
required flow setting clicks into place and
in-between settings
is clearly visible.
Blocked port in flow Immediately contact customer service
selector and quarantine the cylinder.
Hose diameter is
Check that the tubing fits firmly over the
wrong size barbed outlet. If not, replace the tubing.
Contact customer service, and
Shroud is twisted
quarantine the cylinder.
Check that the thread is not damaged to
either the sleeved outlet or the device it' s
Cannot connect to being connected to.
the outlet
Check that the outer rim of the sleeved
outlet has not been damaged and is
circular in shape. Check the hand wheel
Damaged sleeved
engages properly.
outlet
If sleeved outlet is damaged, contact
customer service and quarantine the
cylinder.
Check to make sure that the flow selector
knob has not been left ON. Do not
attempt to stop a leak.
Hissing noise Gas leak
Turn the valve OFF, immediately contact
customer service. Quarantine the cylinder.
Any repair, maintenance or modification shall only be carried out by an authorised technician.
Note that flow inaccuracies can be caused by back-pressure downstream
of the integrated valve.
Safety information

Requirements for use

• Read the product label and SDS before using
• Always check for flow before administering to patient
• Ensure proper protection of the outlet nozzles using the plastic
caps supplied when not in use
• Keep away from grease, oil and flammable products
• Do not purge remaining oxygen from cylinder (especially in a
confined area)
• Only connect to fittings and accessories that are compatible
with medical oxygen
• Do not connect any device to the filling port located at the rear
of the integrated valve
• If you suspect any problem with a cylinder, contact your Air
Liquide Healthcare representative. Quarantine the cylinder.
Do not try to repair.

Storage requirements

• Store in a secure upright position, in a clean and ventilated area
• Not to be stored or placed near a heat source or combustible
material
• Store with restricted access and authorised personnel only
• Clear identification and segregation should be made in storage
(full, empty, defective ...)
For more information
www.airliquidehealthcare.com.au
The integrated valve is manufactured by Air Liquide Medical Systems, 6 rue
Georges Besse 92182 Antony France and is supplied in Australia as part of
the TAKEO range by:
TM
2
Air Liquide Healthcare Pty. Ltd.
5/476 Gardeners Road, Alexandria NSW 2015
1300 36 02 02
www.airliquidehealthcare.com.au
