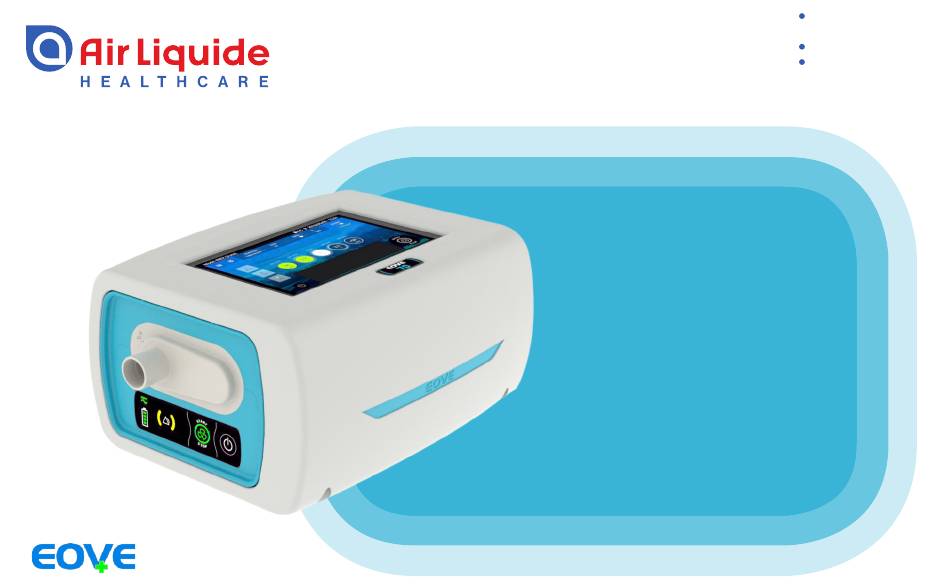

  • Page 1 EO-70 Patient Pocket guide English...
  • Page 2 Summary...
  • Page 3 Introduction IPPB mode: Intermittent positive pressure breathing Quick Start Data Monitoring The EO-70 device Data Download Turn ON/OFF the device Device cleaning and maintenance Circuit Configuration Optional accessories Circuit Calibration My prescription Select a preset INEX mode: Mechanical Insufflation/Exsufflation Auto Mode •...
  • Page 4 Introduction The EO-70 Cough Assistance device is an essential The information in the Pocket Guide is not intended element of airway clearance therapy, which is to exceed the instructions in the medical prescription intended to help patients who are unable to and User Manual.

  • Page 5: Quick Start

    Quick Start In case of emergency, the ventilation module can be directly turned on simply by pressing button on the module keyboard. To start ventilation Click on on the keyboard. Press on the front panel keyboard to turn on the device. The home screen displays.
  • Page 6 The EO-70 device Display screen Turbine Air Inlet connector Device module AC Inlet Remote Control connector EO device housing unit Screen Power Button Inspiratory / Circuit Port Keyboard...

  • Page 7: The Home Screen

    The home screen Menu and Coaching function Start/Stop Therapy Presets buttons Settings info Quick settings Cycles counter Power OFF button Monitoring panel Manual PAD Settings...

  • Page 8: Turn On/Off The Device

    Turn ON/OFF the device Turn the device Turn the device Press the button + VALIDATE Press the button NOTE: Unplugging from main power does not power off the device. It will continue to run on the internal battery. The device must be turned off manually before disconnecting from AC power for any extended period of time.

  • Page 9: Circuit Configuration

    Circuit Configuration Configuration Configuration Filter Single circuit Antibacterial Single circuit filter Mask Mask Mouthpiece Intentional leak 1. Attach the antibacterial filter to the inspiratory port of the device. 1. Attach the antibacterial filter to the inspiratory port of the device. 2.

  • Page 10: Circuit Calibration

    Circuit Calibration For the EO-70 to provide expected performances, the patient circuit must be calibrated. mode mode Calibration steps: 1. Select the mode and connect the circuit and accessories (without patient interface). 2. Access the calibration Menu. 3. For INEX Mode you only need to follow 1 step and for IPPB Mode there are 2 calibration steps. 4.

  • Page 11: Select A Preset

    Select a preset It is also possible to change a preset program from the settings menu. Current preset Available preset...
  • Page 12 mode: Mechanical Insufflation/Exsufflation Mechanical in-exsufflation provides positive pressure, followed very quickly by negative pressure, which assists coughing. MI-E simulates coughing due to pressure variation in a TIME non-invasive form.
  • Page 13 mode: Automatic mode In AUTO mode, the device repeats the sequences defined by the clinician according to the following parameters: Parameter Setting Inspiration pressure (cmH 5 - 70 Slope 0 - 5 Inspiration time (s) 0.5 - 5 Inspiration oscillations flow (Hz) OFF / 4 - 20 Inspiration oscillations Amp.
  • Page 14 mode: Manual mode In manual mode, the user controls the insufflation/ exsufflation sequences based on the following parameters: Parameter Setting Inspiration pressure (cmH 5 - 70 Slope 0 - 5 Inspiration oscillations Flow (Hz) OFF / 4 - 20 Insufflation Inspiration oscillations Amp.
  • Page 15 mode: Intermittent positive pressure breathing This recruitment mode delivers an air volume beyond the patient's current volume. It enables the patient to reach the inspiratory reserve volume. This improves pre-cough volume and mobilizes the thoracic wall. The selected flow rate modulates the inspiratory cycle time Two possible options depending on the treatment objective TIME TIME...
  • Page 16 mode: Intermittent positive pressure breathing This mode controls insufflation flow Parameter Setting during insufflation time until maximum Inspiration flow (l/min) 5 - 100 pressure is reached. The exhalation Inspiration slope ON / OFF is controlled by the PEEP. The trigger function allows the patient to initiate Max pressure (cmH 10 - 50...

  • Page 17: Data Monitoring

    Data Monitoring On the Home Screen it is possible to view the data from the last session for: • Inspiratory Tidal Volume (VTI) • Inspiratory Time (I Time) • Exhalation Time (E Time) • Pause Time (P Time) • Peak Flow NOTE: If Oximetry via NONIN Xpod cable (EO-SPO2CBL) is connected, SpO and heart rate (HR) can be monitored.

  • Page 18: Data Download

    Data Download USB stick Specs: - FAT32 - 32 GB max - Class 10 max - 1 partition 1. Insert a USB key in the USB port at the rear of EO-70 To access the EO-70 Clinical Software, please contact your local 2.

  • Page 19: Device Cleaning And Maintenance

    Device cleaning and maintenance It is necessary to • Clean only exterior surfaces of the EO-70 device. clean the EO-70 ventilator regularly in • If necessary, wipe the exterior of the device with a damp cloth using addition to inspecting a mild cleaning solution.

  • Page 20: Optional Accessories

    Optional Accessories • The EO-70 is transportable but should not be operated during the transport. Always use the carry bag. • To attach a control pedal, connect the plug of the remote-control at the rear of • A vertical support to improve the view the device.
  • Page 21 My prescription Patient Preset Mode Manual Automatic Flow L/min Inspiration pressure (cmH mbar Max pressure mbar Slope mbar Inspiration time (s) Inspiration time (s) Inspiration Trigger Medium High Inspiration Trigger PEEP mbar Pause (s) Exhalation slope Medium High PEEP mbar Treatment time (min) Exhalation pressure mbar...
  • Page 22 Notes...
  • Page 24 Manufactured by EOVE Helioparc 4, Boulevard Lucien Favre 64000 Pau France www.eove.fr Medical device class IIb - CE 0459 - Manufactured by EOVE. Please read the user manual.
