- Page 1 CLASSIC Instructions for Use au.healthcare.airliquide.com...
-
Page 2: Operational Information

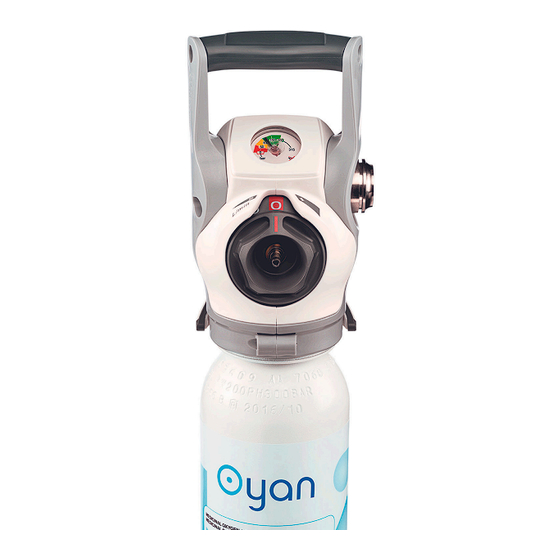

2.1. Connecting to the barbed outlet 2.2. Connecting to the sleeved outlet Troubleshooting guide The Integrated Regulator-Valve is manufactured by Air Liquide Medical Systems, 6 Rue Georges Besse 92182 Antony France and is supplied as part of the OYAN™ range of products in Australia by: Air Liquide Healthcare Pty. - Page 3 OYAN™ are ready-to-use medical oxygen cylinders complete with an integrated regulator-valve and flow meter which is intended to supply regulated medical oxygen to a patient or another medical device. They deliver medical oxygen either through a flow-regulated barbed outlet or a fixed flow-sleeved outlet. Key features: Easy to use and ergonomic for a quick and easy set-up Eliminates the cost of additional equipment (separate regulators and flowmeters)
-
Page 4: Technical Specifications
Low pressure outlet: Connector according to local standard 3.6 to 5.5 bar - Flow at outlet ≥ 40L/min Storage & usage temperature: Not below 0°C or above 50°C Control & Maintenance: Ensured by Air Liquide Healthcare ARTG Reference: 133955 Cylinder Product Product... - Page 5 Inspection checks to be performed by the user before initial use If any deviation is observed do not use the cylinder and contact a. Check that the cylinder is clean and free your nearest Air Liquide from oil and grease. Healthcare office on 1300 360 202.
- Page 6 2. Operational information 2.1 Connecting to the barbed outlet a. Remove the orange cap by pulling down on the ring and connect the oxygen tubing to the barbed outlet (refer Fig 4 item #3 and Fig 5). FIG.4 item #3 b.
- Page 7 2.2 Connecting to the sleeved outlet: a. Remove the orange cap by pulling on the ring. b. First have the desired equipment ready for connection to the sleeved outlet (i.e. hose to ventilator or suction equipment). Connect the hose wheel to the sleeved outlet and ensure the fitting is sufficiently hand tightened (refer Fig.5) Medical oxygen is now available.
- Page 8 2.2 Connecting to the sleeved outlet: h. When attaching a suction unit to a 20L cylinder, the use of a small extension piece will be required (refer Fig.11). FIG.11...
-
Page 9: Troubleshooting Guide
Immediately contact customer Outlet nozzle may be No flow of gas service and quarantine the unit for blocked investigation by an Air Liquide Healthcare representative. View the top of the flow selector knob to ensure the flow settingis visible through Flow selector the viewing port. - Page 10 Air Liquide Healthcare representative. First check to make sure that the flow selector knob has not been left ON. Do not attempt to stop a leak.
- Page 11 Tel: 1300 36 02 02 | eFax: 1800 254 329 alhenquiries@airliquide.com au.healthcare.airliquide.com World leader in gases, technologies and services for Industry and Health, Air Liquide is present in 80 countries with approximately 65,000 employees and serves more than 3 million customers and patients.
