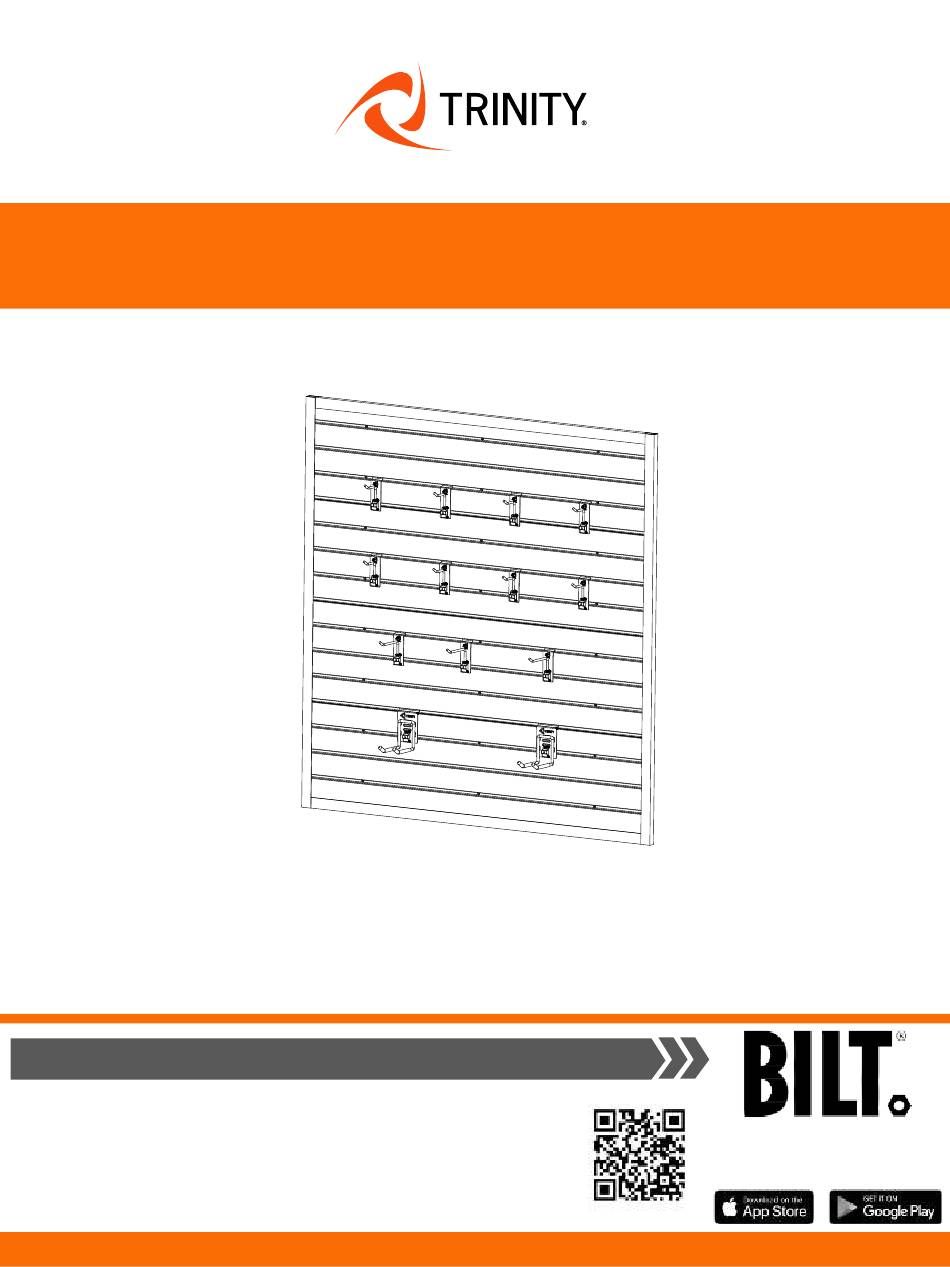

OWNER'S MANUAL
16 Sq Ft Modular Slatwall 13-Piece Accessory Starter Set
Model # TUP-0710
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
Intelligent Instructions
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGERL'APPLICATION GRATUITE| DESCARGUE LA APLICACIÓN GRATUITA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUP-0710 and is the answer not in the manual?

Questions and answers

Related Manuals for Trinity TUP-0710

Summary of Contents for Trinity TUP-0710

  • Page 1 OWNER’S MANUAL 16 Sq Ft Modular Slatwall 13-Piece Accessory Starter Set Model # TUP-0710 Important / Important / Importante FOR 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D...

  • Page 2: Parts List

    PARTS LIST Your TRINITY 16 Sq Ft Modular Slatwall 13-Piece Accessory Starter Set should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com.

  • Page 3: Before Installation

    Notes: • TRINITY slatwall panels are designed to install over studs and properly studded drywall. For other surfaces please consult a local professional. • To support claimed weight capacity: •...
  • Page 4 STEP 3 Install your bottom LONG EDGE TRIM (B) at desired starting height (wider side installs against wall), level and put (1) SCREW (H) into each stud. Front Side Wall Side © 2024 TRINITY - 800.985.5506...
  • Page 5 Push down on top panel to ensure it is properly seated. Confirm that panel is level and aligned with bottom panel. Screw panel in place into center of every wall stud as shown. Continue adding panels until you reach top of your desired height. © 2024 TRINITY - 800.985.5506...
  • Page 6 To finish top edge, place LONG EDGE TRIM (B) on top of slatwall by inserting edge of slatwall to open slot of LONG EDGE TRIM (B). Push down on LONG EDGE TRIM (B) to cap edge of top panel. © 2024 TRINITY - 800.985.5506...
  • Page 7 Repeat STEP 3, 4, 5 and 7 to install another column of panels. Wall Side STEP 9 Finish last side edge by inserting edge of slatwall to open slot of LONG EDGE TRIM (B) or SHORT EDGE TRIM (C). © 2024 TRINITY - 800.985.5506...

  • Page 8: Hook Installation

    E/F/G HOOK REMOVAL You can remove HOOK (E/F/G) from slatwall by first pressing down black locking tab on hook then pulling out bottom of hook before disengaging entire HOOK (E/F/G). Black Locking Tab © 2024 TRINITY - 800.985.5506...

  • Page 9: Service Parts List

    SERVICE PARTS LIST TUP-0710 – TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XWH-02-071-0001 Long edge trim XWH-02-072-0001 Seam joint trim XWH-20-013-4812 Slatwall Panel PGR-02-073-0003 4” Double hook ZSV-01-052-0450 Screw PGR-02-073-0001 2” Single hook...
  • Page 10 8. Do NOT allow children to hang or pull hooks that have been inserted onto the slatwall. Damage may occur causing injury. 9. Do NOT place any direct heat source on or near the slatwall. © 2024 TRINITY - 800.985.5506...

  • Page 11: Care And Maintenance

    Keep clean with water and mild detergent. Do not use scouring pad for cleaning. • The product is designed for indoor use. • Check regularly to ensure screws have not loosened during use of slatwall. • Check regularly to ensure hooks are secure before each use. © 2024 TRINITY - 800.985.5506...

  • Page 12: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY 16 Sq Ft Modular Slatwall 13-Piece Accessory Starter Set. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.

  • Page 13: Year Limited Warranty

    Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty.
  • Page 14 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 5:00 AM –...
