OWNER'S MANUAL

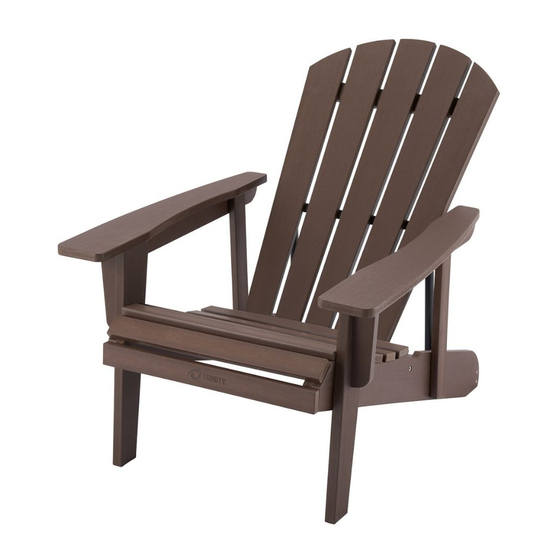

TRINITY ECOSTORAGE® RECLINING ADIRONDACK CHAIR
ESPRESSO BROWN / SLATE GRAY
Model # THBBR-3103 / THBGR-3103
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D RAPIDES ET FACILES
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA
Advertisement
Related Manuals for Trinity ECOSTORAGE THBBR-3103
Summary of Contents for Trinity ECOSTORAGE THBBR-3103
- Page 1 OWNER’S MANUAL TRINITY ECOSTORAGE® RECLINING ADIRONDACK CHAIR ESPRESSO BROWN / SLATE GRAY Model # THBBR-3103 / THBGR-3103 Important / Important / Importante FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D...
-
Page 2: Parts List
Your TRINITY EcoStorage® Adirondack Reclining Chair should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online via “Contact Us”... - Page 3 (C) and hand fasten to LEFT FRONT LEG (G). Insert SCREW (K) through LEFT ARMREST (C) and hand fasten to LEFT SUPPORT (G). Finally tighten both SCREWS (K) with HEX KEY (L). Completed STEP 1 assembly © 2020 TRINITY - 800.985.5506...
- Page 4 ARMREST (D) and hand fasten to RIGHT SUPPORT (H). Insert SCREW (K) through RIGHT ARMREST (D) and hand fasten to RIGHT FRONT LEG (F). Finally tighten both SCREWS (K) with HEX KEY (L). Seat Assembly after STEP 2 © 2020 TRINITY - 800.985.5506...
- Page 5 BACKREST (B) and WASHER (J). With WRENCH (M) J (2) I (2) L (1) K (2) M (1) holding NUT (I) in place, tighten SCREW (K) onto NUT (I) with HEX KEY (L). Repeat for right side. © 2020 TRINITY - 800.985.5506...
-
Page 6: Usage Instructions
USAGE INSTRUCTIONS ADJUST SEAT BACK RECLINE POSITIONS There are 3 reclining positions. Lift BACKREST (B) and move Back Support to position you desire. POSITION 2 POSITION 3 POSITION 1 Back Support © 2020 TRINITY - 800.985.5506... -
Page 7: Service Parts List
SERVICE PARTS LIST- THBBR-3103 ESPRESSO BROWN TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description PBK-25-005-0002 Back Support XXX-97-002-0006 Wrench XBK-23-004-2540 End Cap XXX-97-001-0001 Hex Key XBR-25-005-0001 Backrest XBR-25-004-0005 Right Front Leg XBK-01-026-0635 Screw XBR-25-004-0004... - Page 8 SERVICE PARTS LIST- THBGR-3103 SLATE GRAY TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description PBK-25-005-0002 Back Support XXX-97-002-0006 Wrench XBK-23-004-2540 End Cap XXX-97-001-0001 Hex Key XGR-25-005-0001 Backrest XGR-25-004-0005 Right Front Leg XBK-01-026-0635 Screw XGR-25-004-0004...
