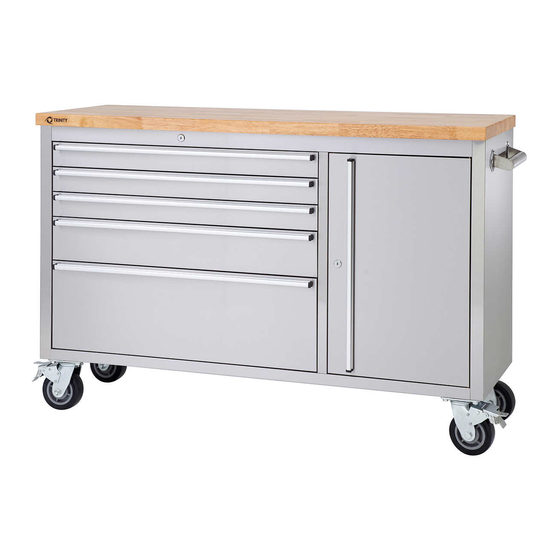

- Page 1 ® Everything in its place. OWNER’S MANUAL TRINITY 56” ROLLING WORKBENCH – STAINLESS STEEL Model # TLS-4804 (Stainless Body) TLS-4805 (Black Body)
-
Page 2: Parts List
PARTS LIST Your TRINITY 56in Stainless Steel Workbench should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online via our “Contact Us”... - Page 3 A (1) B (2) HANDLE BOLTS (C) through holes on SIDE HANDLE (B). Use a 10mm wrench to tighten HANDLE BOLTS (C) to WORKBENCH (A). Repeat these instructions to install the other SIDE HANDLE (B). © 2016 TRINITY - 800.985.5506...
- Page 4 2 sides. Tilt SHELF (I) diagonally to move it to the desired position. Once at the desired height, secure SHELF (I) by pushing down on all 4 corners until SHELF (I) engages fully with the tabs. © 2016 TRINITY - 800.985.5506...
- Page 5 ASSEMBLY INSTRUCTIONS STEP 5 Simply place LINERS (G) in each drawer and on each shelf. G (7) © 2016 TRINITY - 800.985.5506...
- Page 6 Drawer Slides into the corresponding slots on the Workbench Slides, making sure they are properly positioned. Once the brackets are inserted into the slots, completely close the drawer to set all slides in their proper positions. © 2016 TRINITY - 800.985.5506...
- Page 7 SERVICE PARTS LIST – TLS-4804 / TLS-4805 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description PBK-03-001-1617 Inner Shelf XBK-22-001-3316 Drawer Liner LNA-06-001-5619 Wood Top XBK-22-001-1617 Shelf Liner ZSV-01-001-0612 Handle Bolt ZSV-99-002-5020 Non-locking Caster XSV-05-001-0900...
- Page 8 8. Lock the drawers and door before moving the workbench. 9. Do NOT open more than one drawer at a time. Tipping can occur. 10. Do NOT step on open drawers. 11. Do NOT let children play near workbench. © 2016 TRINITY - 800.985.5506...
-
Page 9: Care And Maintenance
Wood top can be cleaned with damp cloth and wiped dry immediately with dry cloth. If needed, solvent-based wood furniture cleaner can be used. • Clean up any spills immediately to prevent stains from forming on the wood top. © 2016 TRINITY - 800.985.5506... - Page 10 PRODUCT REGISTRATION Thank you for purchasing a TRINITY 56in Stainless Steel Workbench. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to...
- Page 11 Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty.
- Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 8:00 AM –...
