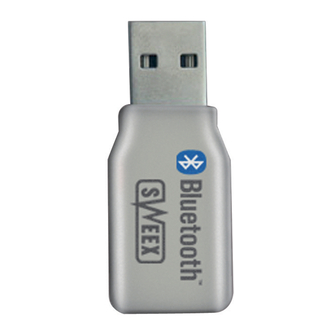

BT211 Sweex Bluetooth 2.0 Class 1 Adapter USB
Introduction
• Do not expose the Sweex Bluetooth 2.0 Class 1 Adapter USB to extreme temperatures. Do not place the device in direct sunlight or in the direct
vicinity of heating elements.
• Do not use the Sweex Bluetooth 2.0 Class 1 Adapter USB in extremely dusty or moist surroundings.
• Protect the device against powerful shocks or jolts – they may damage the internal electronics.
• Never attempt to open the device yourself – it will cause the warranty to lapse.
Drivers and software
The Sweex Bluetooth 2.0 Class 1 Adapter USB operates under Windows 2000, XP and Vista without having to install drivers or software. Windows
will automatically detect the device and install it.
The "XTND Connect Blue Manager" software that comes with this product offers extra functionality in addition to the basic options of Bluetooth.
Sweex offers no support for this software.
Insert the Sweex CD-ROM in your computer in order to install the software. In the start-up window, select "Install XTND Connect Blue Manager".
Installation
Connect the Sweex Bluetooth 2.0 Class 1 Adapter USB to a free USB port on your computer. Following installation, a blue Bluetooth icon will appear
in the bottom right-hand corner of your screen. If you right-click this icon, you will see a number of options for connections with other devices.
If the icon fails to appear, you can enable the icon to appear in the system field. You can do so in the configuration screen under the "Options" of
"Bluetooth Devices".
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SWEEX BT211
Summary of Contents for SWEEX BT211
- Page 1 If you right-click this icon, you will see a number of options for connections with other devices. If the icon fails to appear, you can enable the icon to appear in the system field. You can do so in the configuration screen under the “Options” of...
- Page 2 The following screen appears: Tick the option “My device is set up and ready to be found”. Ensure that the device to be connected meets the stated requirements. In the case of a mobile phone, ensure that Bluetooth is activated and that the telephone can be detected. The manual of the relevant device describes how to activate this.
- Page 3 Then click “next”. Windows now tries to connect the adapter to the telephone: During the connecting process the telephone will request confirmation. The password must be entered also. The correct procedure depends on the brand name and type of telephone. To this end, we refer you to the manual of the relevant telephone.
- Page 4 Select the device you want to send a file to. To this end, we have selected the mobile phone which was already connected to the adapter. If you choose another device, you can enter a password. We recommend using a password to increase security during file transfers.
- Page 5 Now select the file you want to send and click “next”. The file was sent successfully. Receiving a file Prior to being able to receive a file, you must ensure that the adapter can be detected. You can do so as follows: Select the option “Open Bluetooth Settings”.
- Page 6 English version Click on the second tab and the following screen appears: Here tick the option “Turn discovery on”. The adapter can now be detected by other Bluetooth devices. Here select the option “Receive a file”. The adapter is now waiting for a device to connect.
- Page 7 Warranty All Sweex products are warranted for three years. We do not grant support or warranties for any software and/or (rechargeable) batteries included. Settlement of guarantee only takes place via the dealer where you have purchased the product in question.
