SWEEX LC085 Installation Instructions

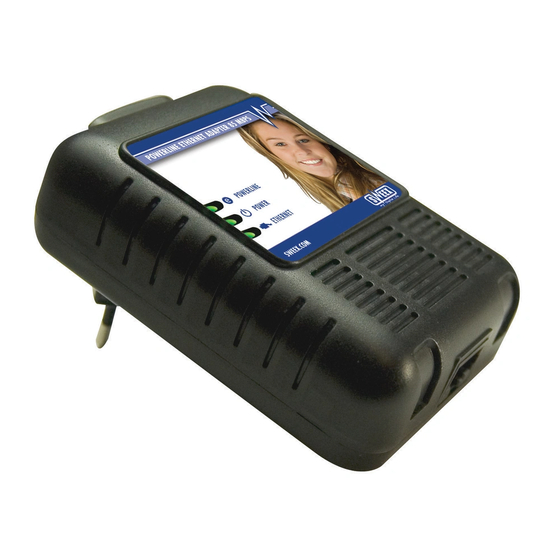

Powerline ethernet adapter 85 mbps

English version

Introduction

In order to fully enjoy the Sweex Powerline Ethernet Adapter 85 Mbps, it is important to observe a number of things:

• Do not expose the Sweex Powerline Ethernet Adapter 85 Mbps to extreme temperatures. Do not place the product in direct sunlight or in the

direct vicinity of heating elements.

• Do not use the Sweex Powerline Ethernet Adapter 85 Mbps in extremely dusty or moist surroundings.

• Protect the product against powerful shocks or jolts - they may damage the internal electronics.

• Never attempt to open the product yourself - it will cause the warranty to lapse.

Note!

Do not connect the Sweex Powerline Ethernet Adapter 85 Mbps to a UPS or a wall outlet with over-voltage protection and/or filter. This can

negatively affect the quality of the signal.

Take the following precautionary measures prior to installing the hardware:

• Ensure there is at least 1 free wall outlet available per adapter.

• Insert the adapter in the wall outlet. In the event of shortage of space near the wall outlet, the plug of the Sweex Powerline Ethernet Adapter

85 Mbps can be changed.

Press and hold the button under the ribbed section and slide the cover in the direction of the arrow. This will reveal a connection onto which a

power cable can be connected. This cable is not included.

• Insert the second and, if applicable, third (etc.) adapter in another wall outlet.

• Connect the adaptor with the network and/or the computer by means of the network cables. There are 3 connection options:

LC085 Sweex Powerline Ethernet Adapter 85 Mbps

Table of Contents

Do you have a question about the LC085 and is the answer not in the manual?

Page 1 • Ensure there is at least 1 free wall outlet available per adapter. • Insert the adapter in the wall outlet. In the event of shortage of space near the wall outlet, the plug of the Sweex Powerline Ethernet Adapter 85 Mbps can be changed.
Page 2 Software installation under Windows 98SE, 2000 and XP The Sweex Powerline Ethernet Adapter does not need any drivers. The utility which is installed provides additional functionality and security. If you do not need this, you need not install the software. You can use the Sweex Powerline Ethernet Adapter instantly, without installing the software.
Page 3 Protection It is not required to secure the Sweex Powerline Ethernet Adapter 85 Mbps in order to operate it. In the event that an individual has access to your wall outlet, this person could use your Internet connection via that wall outlet (should you not have secured it). This is rather unlikely to happen in...
Page 4: Led Indicators
Warranty All products under the Sweex brand are warranted for a period of three years. We do not grant support or warranties for any software and/or (rechargeable) batteries included. Settlement of guarantee only takes place via the dealer where you have purchased the product in question.
