ENglISH VErSIoN
Introduction
• D o not expose the Sweex Powerline Ethernet Adapter 200 Mbps to extreme temperatures. Do not place the product in direct
sun light or close to heating elements.
• Do not use the Sweex Powerline Ethernet Adapter 200 Mbps in extremely dusty or moist environments.
• Prevent hard shocks or impacts of the product, as this can cause damage to the internal electronics.
• Never try to open the product yourself, this voids the warranty.
Important!
Do not connect the Sweex Powerline Ethernet Adapter 200 Mbps to a UPS or a socket with surge protection and/or filter. This can
negatively influence the quality of the signal. Usage in secured plug sockets or extension leads is also not recommended.
Hardware Installation
Prior to installing the hardware, follow these precautionary instructions:
• Ensure that there is at least 1 free plug socket available for every adapter.
• Place the second and possibly third (etc.) adapter in a different plug socket.
• Connect the adapter with the network and/or the computer by means of the network cables. There are 3 connection possibilities:

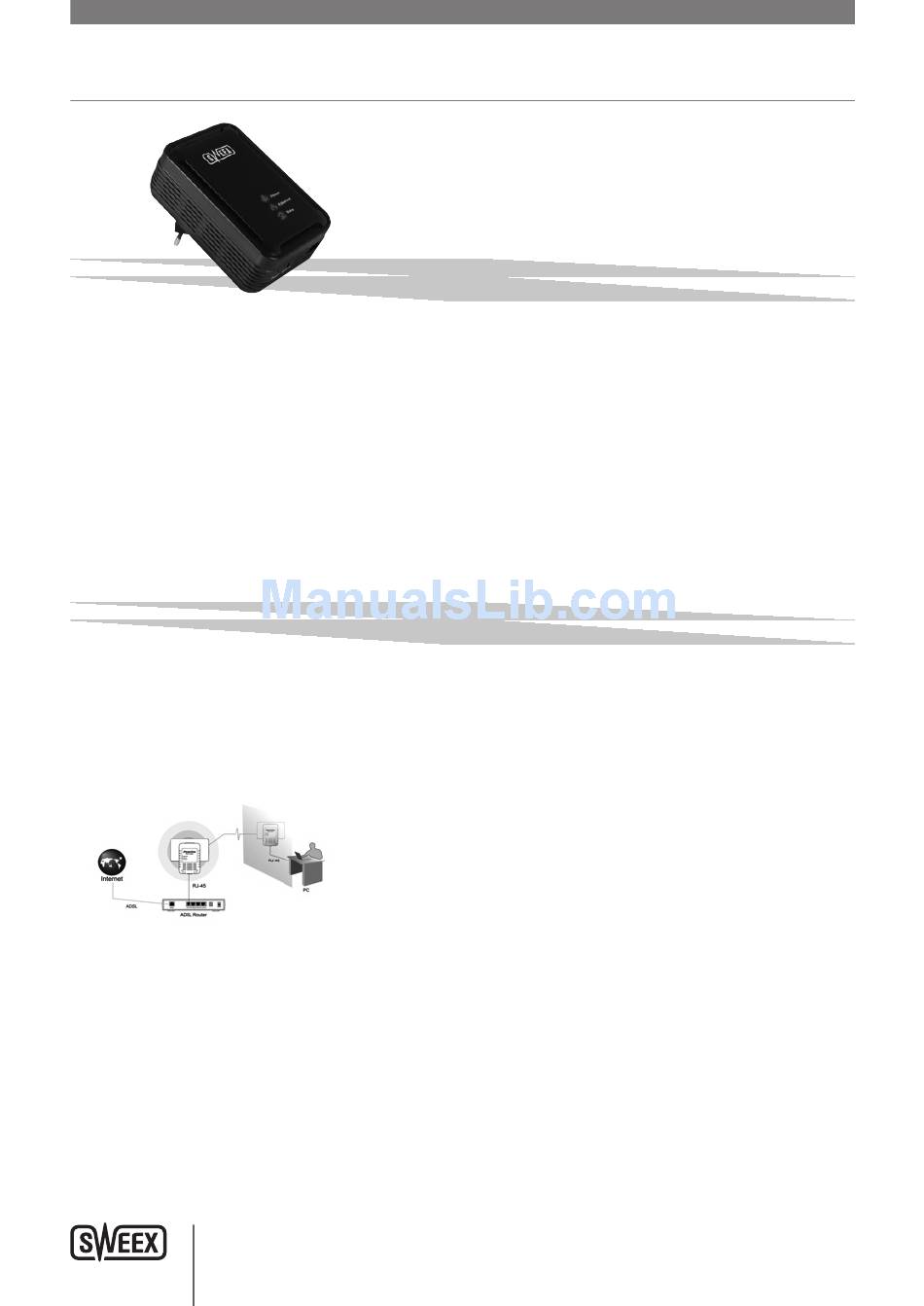

1: From router/switch to PC (see image underneath)
2
Sweex Powerline 200 Adapter
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SWEEX LC203
Summary of Contents for SWEEX LC203
-
Page 1: Hardware Installation
ENglISH VErSIoN Sweex Powerline 200 Adapter Introduction • D o not expose the Sweex Powerline Ethernet Adapter 200 Mbps to extreme temperatures. Do not place the product in direct sun light or close to heating elements. • Do not use the Sweex Powerline Ethernet Adapter 200 Mbps in extremely dusty or moist environments. • Prevent hard shocks or impacts of the product, as this can cause damage to the internal electronics. • Never try to open the product yourself, this voids the warranty. Important! Do not connect the Sweex Powerline Ethernet Adapter 200 Mbps to a UPS or a socket with surge protection and/or filter. This can negatively influence the quality of the signal. Usage in secured plug sockets or extension leads is also not recommended. Hardware Installation Prior to installing the hardware, follow these precautionary instructions: • Ensure that there is at least 1 free plug socket available for every adapter. • Place the second and possibly third (etc.) adapter in a different plug socket. • Connect the adapter with the network and/or the computer by means of the network cables. There are 3 connection possibilities: 1: From router/switch to PC (see image underneath) - Page 2 ENglISH VErSIoN 2: From PC to PC 3: From router/switch to router/switch • Check if the LEDs are lit as indicated in the topic “LED indications”. Software installation Windows 2000, XP and Vista No drivers are needed for the Sweex Powerline Ethernet Adapter. The utility that will be installed ensures extra functionality and security. If you do not need this you do not have to install the software. Without software you can immediately use the Sweex Powerline Ethernet Adapter. Before you start the installation we recommend you to ensure that your operating system is up-to-date. This is easily checked by selecting the “Extra” menu in Internet Explorer and then the option “Windows Update”. Place the Sweex CD-ROM in the CD-ROM player. The auto run menu will start automatically. In this menu choose the option “Drivers Windows 2000, XP and Vista” When this auto run menu does not appear you can start the software manually. To do this open “My Computer” and go to X:\ software\ (X is the letter of the CD-ROM drive). Here is the file ‘LC202_software’. Execute this file. Windows will install the software automatically. Software Power Adapter Utility Configuring the Sweex Powerline Ethernet Adapter 200 Mbps is done with the ‘PowerPacket Utility’. These can be found as follows: Go to START -> “All Programs” -> “Power Packet 5.0” -> “Power Packet 5.0” or when the classic view is being used: Go to START -> “Programs” -> “Power Packet 5.0” -> “Power Packet 5.0” The following screen appears:...
- Page 3 ENglISH VErSIoN The program will immediately search for the Powerline devices, which are connected with the powerline adapter of your computer via the power grid. The found devices will appear in the window under “Device Name”. Here you can see the password (Default setting empty), the quality of the connection, the effective data speed (“Rate (Mbps)”) and the MAC address of the adapter. When you want to use the security possibilities you have to enter the password of the adapter. This password (“PWR: xxxx-xxxx- xxxx-xxxx”) is unique for every adapter and is located on the sticker underneath the adapter under the MAC address (“MAC: xx:xx:xx:xx:xx:xx”). We advise you to write these details on a piece of paper before you start the installation, this way you can easily find the details. Select the device you want to configure and click “Enter Password”. The following screen appears: Enter the password that is on the adapter. Pay attention that the MAC address of the adapter is the same as the MAC address in the program, so that the right password is entered! Security It is not necessary to configure the security for the Sweex Powerline Ethernet Adapter 200 Mbps to work properly. If someone has access to your plug sockets, that person (when you did not setup security) could access internet via that plug socket. This is not practical and will hardly ever occur, because the Powerline is limited to your own house. Powerline does go over all groups within your house.
-
Page 4: The Reset Button
1. Press the “Security” button on adapter A for 10 seconds until the lights go out. 2. Press the “Security” button on adapter B for 10 seconds until the lights go out. 3. Press the ”Security” button on adapter A for 1 second 4. Press the ”Security” button on adapter B for 1 second 5. O n both adapters the lights will go out and turn back on. After a maximum of 1 minute the connection is established and secured. Scenario 2: An extra adapter (C) has to be added to the network of A and B. 1. Press the “Security” button on adapter C for 10 seconds until the lights go out. 2. Press the ”Security” button on adapter A for 1 second 3. Press the ”Security” button on adapter C for 1 second 4. On adapter C all lights will go out and turn back on. After a maximum of 1 minute the connection is established and secured. The reset button With the “reset” button you can restore the factory default settings. The adapter will be unsecured and can only communicate... -
Page 5: Led Indications
ENglISH VErSIoN LED indications The Sweex Powerline Ethernet Adapter 200 Mbps has 3 LEDs: lED Indicator Status Indication Data An other adapter is detected on the same network. No other adapter is detected in the same network. Blinking There is activity on the Powerline network. Power The adapter is turned on. Ethernet The network port is correctly connected and ready to send/receive data. The network port is not connected correctly. Blinking The network port sends/receives data. - Page 6 In this way Sweex distinguishes itself in the market and can we convince you as a buyer to continue purchasing products of the Sweex brand. We wish you a lot of pleasure with your purchase.
- Page 7 • within the EU. S hould you wish to invoke this warranty within the first 2 years after the purchase then you can directly apply to the • point of sale where you purchased the product for the conditions and procedures.
- Page 8 ENglISH VErSIoN...
