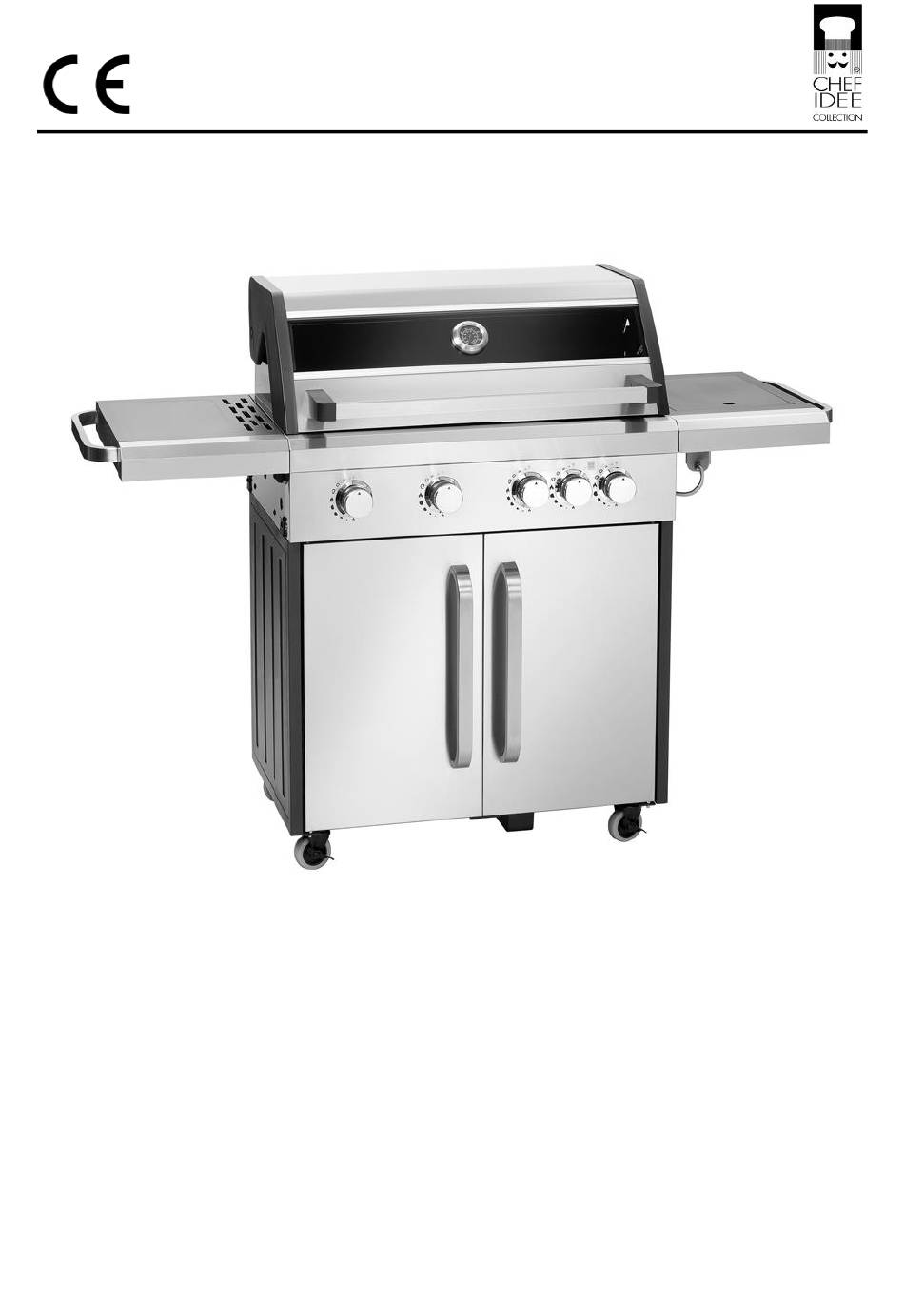

  • Page 1 0359CS01943 2006533C Original-Gebrauchsanleitung V2/0719...

  • Page 2: Table Of Contents

    5.2 Operation ......................43 5.2.1 Features and important tips ..............43 5.2.2 Operation of the device ................44 6. Cleaning and maintenance ................... 49 7. Possible Malfunctions ................... 51 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...

  • Page 3: Safety

    Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Safety Instructions

    HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.
  • Page 5  Never leave the device unattended when in use.  Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard!  The device must be operated in correct and safe technical condition only. CAUTION! In case of any anomalies during the operation set all gas knobs in “O”...
  • Page 6 DANGER with gas supply! Follow the safety instructions below to avoid the hazard:  The device may be supplied only with liquid propane. Never try to reconfigure the device for another type of gas nor use the natural gas to supply the device. This may be extremely dangerous! ...
  • Page 7  During the operation of the device, never dismantle gas regulators or any other parts of the device through which the gas flows.  Never move the device during operation. HOT SURFACE! Risk of burns! Follow the safety instructions below to avoid the hazard. ...

  • Page 8: Proper Use

     Never clean the appliance with use of flammable liquids. Vapours may cause fire or explosion.  Never use the device without a fat collection tray.  Lower cupboard is not a storage or a shelf for e.g. dishes, kitchen utensils, flammable objects etc. It is designed only for placing the gas bottle during the operation of the device.

  • Page 9: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 10: Declaration Of Conformity

    2.3 Declaration of conformity The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity. 3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt.

  • Page 11: Storage

    3.3 Storage Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings. Packages should be stored under consideration of the following: do not store outdoors, keep it dry and dust-free, do not expose it to aggressive media, do not expose it to direct sunlight, avoid mechanical shocks and vibration, in case of longer storage (>...

  • Page 12: Technical Data

    4. Technical data 4.1 Technical specification Description BBQ Grill with 4 burners 2006533C Code- No.: CNS 18/10, steel, painted Material: Grill grid: cast iron coated in enamel  4 main burners: output 4.3 kW each, separately controllable  Side burner hob: output 3.5 kW ...

  • Page 13: Overview Of Parts

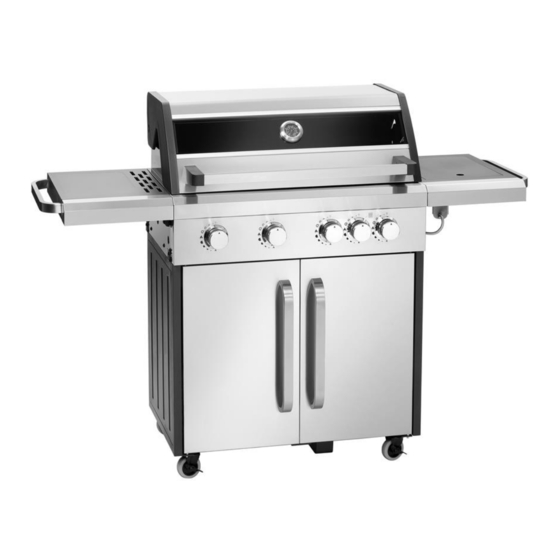

    4.2 Overview of parts Lid handle Connection of side burner Lid with glass window Control panel Thermometer Fat collection tray (2x) Grill surface Cupboard door handle (2x) Storage grill Lower cupboard Right side shelf + side burner Place for gas bottle Left side shelf Castors (4x) - 38 -...

  • Page 14: Installation And Operation

    5. Installation and operation 5.1 Installation CAUTION! All installation, connection, and maintenance works must be realized by the qualified or authorized personnel only, fulfilling the following requirements: authorization from our company; authorization from the local gas supplier. Moreover the following regulations must be followed: DVGW TRGI (technical regulations for the gas installations);...

  • Page 15: Installation And Setting

    5.1.1 Installation and setting  Unpack the appliance and accessories and remove all packaging material according to the regulations valid in the country of installation.  Check the delivery for completeness based on the enclosed Installation Instruction.  Assemble the device according to the guidelines of this Installation Instruction. ...
  • Page 16  To supply the device use only adapted gas bottles (11 kg or 5 kg).  Use only gas bottles of the following dimensions (fig. on the right): 1. Maximum diameter: Ø 300 mm , alternatively Ø 229 mm 2. Maximum height: 600 mm, alternatively 505 mm ...
  • Page 17  Make sure that the gas bottle does not move during the operation of the device and that the access to the gas bottle’s valve is not blocked.  Turn all gas control knobs to “O“ position and close the gas bottle valve. ...

  • Page 18: Operation

     Replacement of burner nozzles must be performed for all burners.  After the replacement place appropriate sticker on the rating plate.  The warning instructions on the device should be replaced with the laguege used in the installation place. 5.2 Operation 5.2.1 Features and important tips This BBQ Grill is safe and user-friendly.

  • Page 19: Operation Of The Device

    5.2.2 Operation of the device Before the first use  Clean the appliance and its equipment before use. Follow the instructions in section “Cleaning and maintenance”.  Slide the fat collection trays (small and big one) on the rear wall of the device into the designated openings.
  • Page 20 Grill grid Grill grid of the device consists of 4 parts: 2 pcs W 320 x D 206 x H 35 mm 450 mm Ø 305 mm 1 pc W 150 x D 206 x H 35 mm 450 mm Storage grill ...
  • Page 21 Ignition of the main burner WARNING! Risk of burns! Do not lean over the device during flame ignition! Rising flame may lead to burns. 1. Open the lid before igniting burners. 2. Connect the gas bottle with the grill according to the operating manual of the pressure regulator.
  • Page 22 Ignition of the side burner 1. If necessary, you may ignite the side burner. First, open the cover of the right shelf. 2. Make sure that the gas control knob of the side burner is in “O“ position. 3. To ignite the side burner, press the relevant gas control knob and turn it counter- clockwise to the big flame position.
  • Page 23 WARNING! Risk of burns! When grilling meat with high fat content (e.g. sausages, beef and pork meat), hot fat may splash out! Keep your distance and use protective gloves or grill cutlery with long handles. WARNING! Risk of burns! When opening the lid after grilling a hot steam escapes. Hot steam may lead to burns / scalding of shoulders, hands or face.

  • Page 24: Cleaning And Maintenance

    6. Cleaning and maintenance WARNING! Before cleaning disconnect the device from the gas supply by closing the gas bottle valve and turning the gas control knobs to “O” position. Leave the device to cool off. The device is not suited for direct washing via water jets. Protect the device from the water penetration.
  • Page 25 o If the internal side of the lid seems to look as if the paint was peeling off, it is fat which was deposited there and now is peeling off. Thoroughly clean the surface with a very hot solution of water and dishwashing liquid. Rinse with fresh water and then leave the surfaces to dry thoroughly.

  • Page 26: Possible Malfunctions

    Maintenance CAUTION! Any maintenance and repair work may be performed only by a certified installer of gas installations. We recommend annual maintenance of the device by an installer of gas installations. o Gas hose / gas supply must be checked every month and after each replacement of the gas bottle.
  • Page 27  type of malfunction;  code number and serial number (see identification plate on device underside);  date of purchase. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120 33154 Salzkotten Service-Hotline: +49 5258 971-197 Germany www.bartscher.com...
