Rear Panel - Reloop RT 3 USB Manual

CONTROLS
1
3
4
5
7

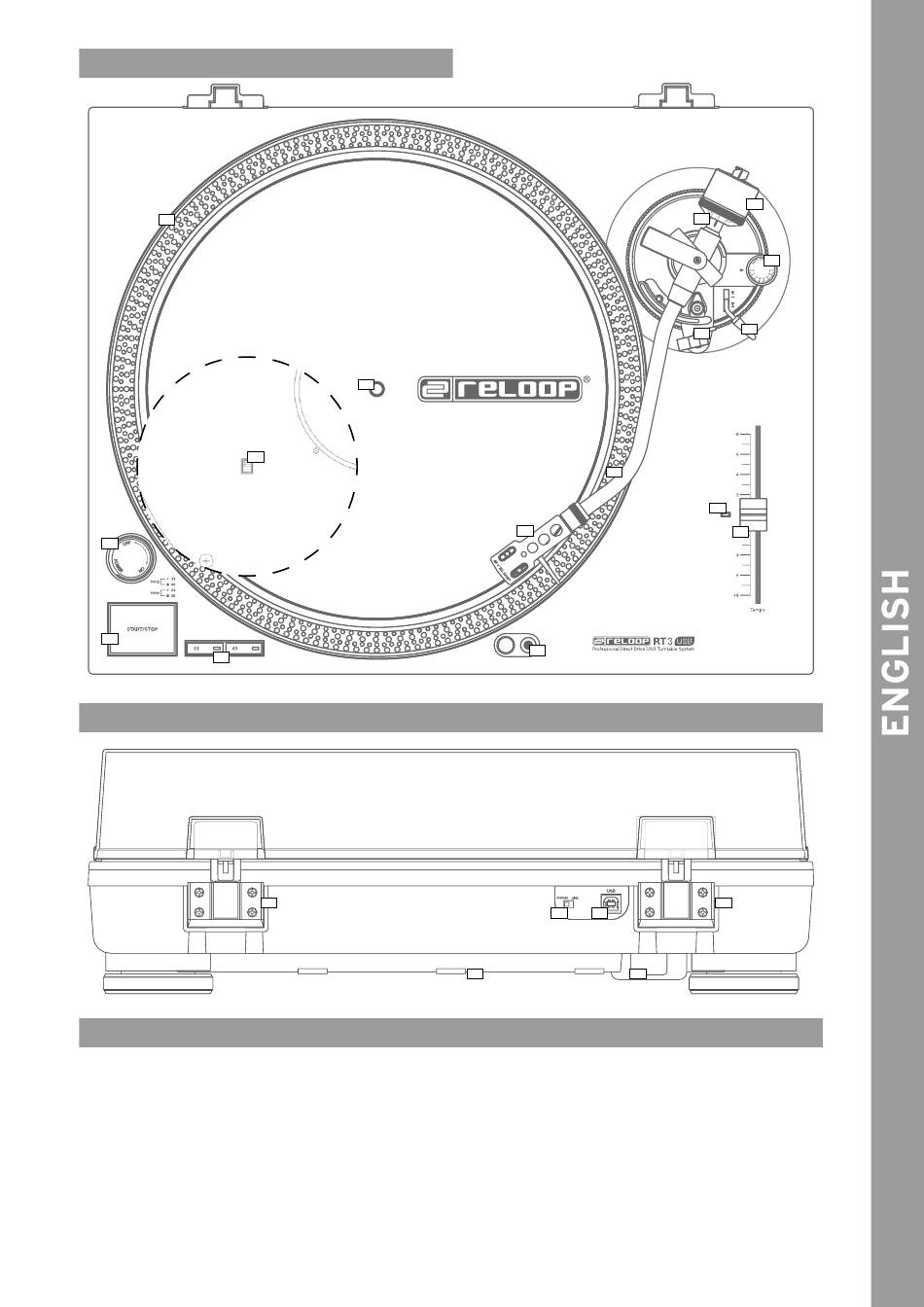

REAR PANEL

DESIGNATION
1. Turntable
2. Hub
3. Voltage Selector
4. ON/OFF Switch Turntable Illumination
5. START/STOP Button
6. Switch for Stylus Illumination
7. 33/45 Selector
8. Headshell with Installed Cartridge (SME)
9. Pitch Fader
10. Quarz Lock LED
11. Tone Arm (SME)
2
21
11
8
6
18 19
17
12. Tone Arm Rest
13. Tone Arm Lift
14. Anti-Skating Wheel
15. Balancing Weight Scale
16. Balancing Weight
17. Audio Output Cable (RCA, no grounding needed)
18. Phono Out/Line Out Select Switch
19. USB Port
20. Power Connection
21. Dust Cover Mounting
16
15
14
13
12
10
9
21
20
7
