Rear Panel - Reloop RP2000USB Instruction Manual

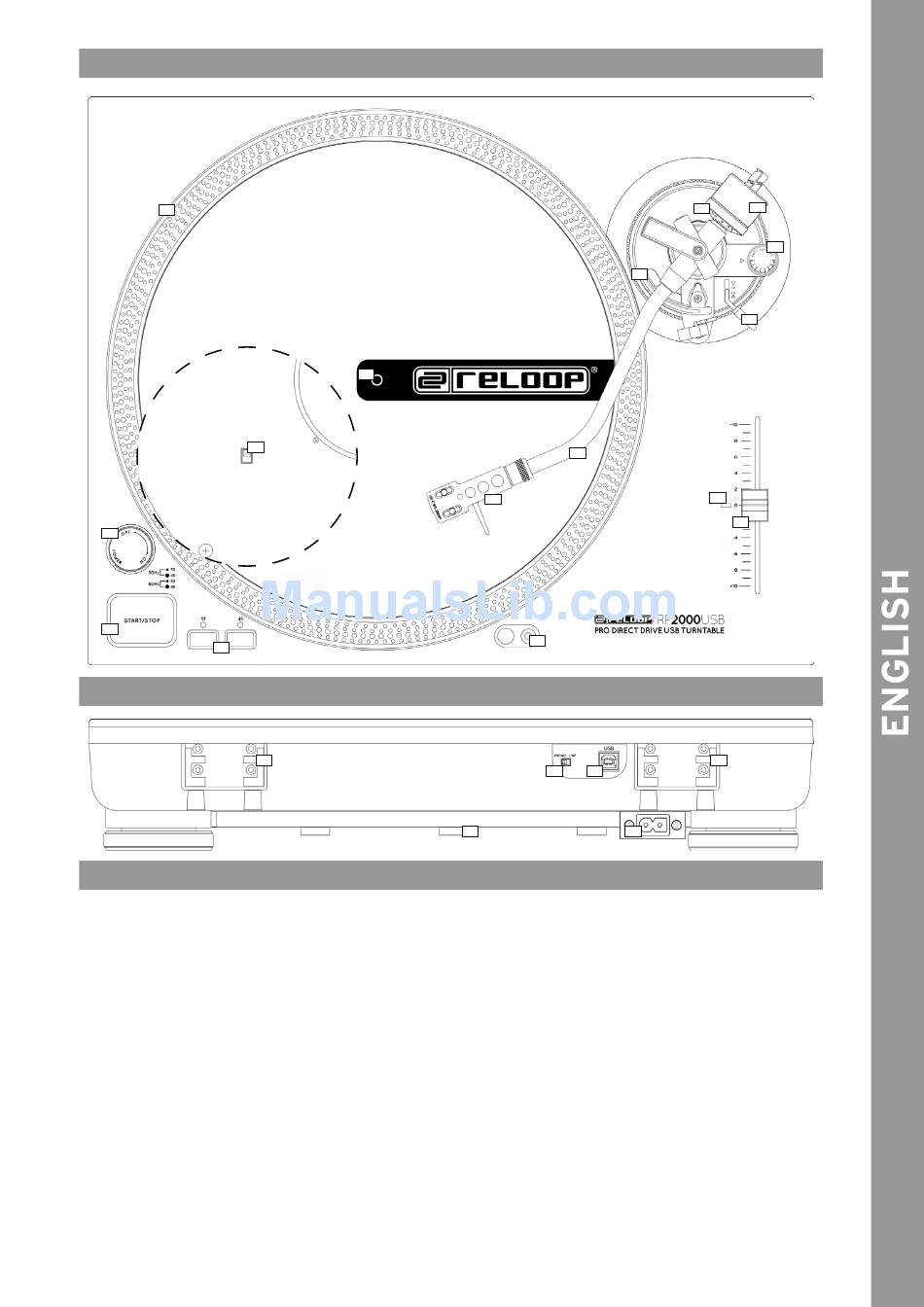

CONTROLS
1
3
4
5
7

REAR PANEL

17
DESIGNATION
1. Turntable
2. Hub
3. Voltage Selector
4. ON/OFF Switch Turntable Illumination
5. START/STOP Button
6. Switch for Stylus Illumination
7. 33/45 Selector
8. Headshell with Pick-Up System
9. Pitch Fader
10. Quarz Lock LED
11. Pick-Up Arm
12. Pick-Up Rest
13. Pick-Up Lift
14. Anti-Skating Wheel
15. Balancing Weight Scale
16. Balancing Weight
17. Dust Guard Hinges
18. Audio Output (RCA)
19. Phono Out/Line Out Select Switch
20. USB Port
21. Mains Connection
