Ethnicraft SLICE 51942 Assembly Instruction

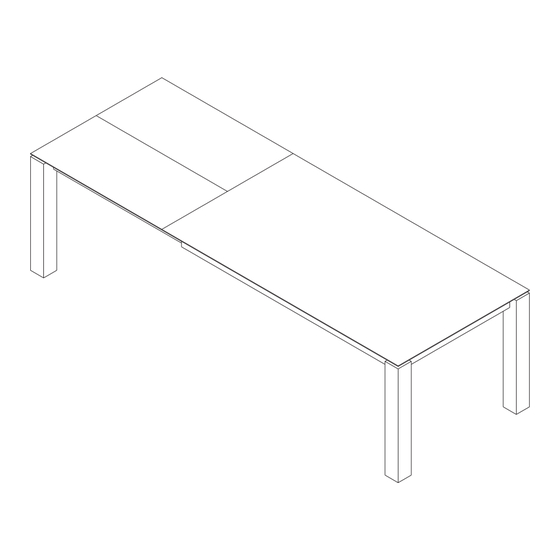

SLICE EXTENDABLE DINING TABLE
ASSEMBLY INSTRUCTION FOR DINING TABLE INSTALLATION
HARDWARES
(8X) (8X)
HEXACAP SCREW RING
Ø 8 x 40mm
IN YOUR PACKAGE :
ASSEMBLY INSTRUCTION
HARDWARE ( AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. TOP PANEL 1pc
2. LEGS 4pcs
RECOMMENDATION :
In order to avoid colour differences between
the fixed table top and the extensions due to
UV light, we suggest to put your dining table in
extended version during the first month.
SYMBOLS
DIRECTION NUMBER OF
PERSONS NEEDED
+
USE WRENCH
TO TIGHTEN USE SCREW DRIVER
2
NOTICE
X
USE HAND
WHEN LIFTING THE TABLE : WHEN LIFTING THE TABLE :
- LIFT ONLY ON THE APRON - LIFT ONLY ON THE APRON
- MAKE SURE TABLE IS IN UNEXTENDED POSITION - MAKE SURE TABLE IS IN UNEXTENDED POSITION
TOOLS
WRENCH
(Not included in package)
Position of
wooden pieces
2
1
2
N
C TIO
ST RU
LY IN
MB
A SE S
1/3
SCREWDRIVER
(Not included in package)
2
X
X2
