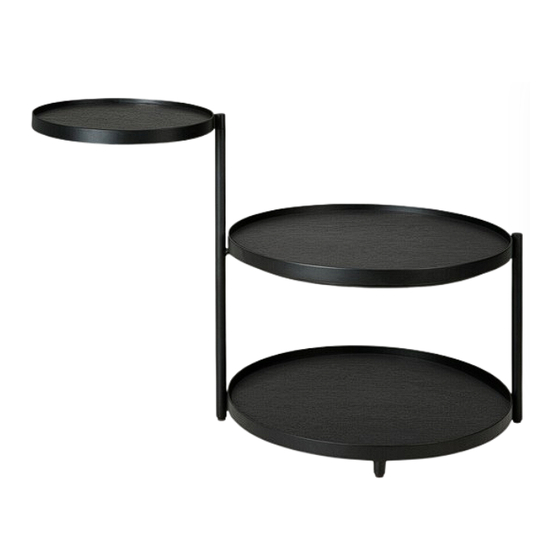

SWIVEL TRAY SIDE TABLE - VARNISHED TEAK - BLACK

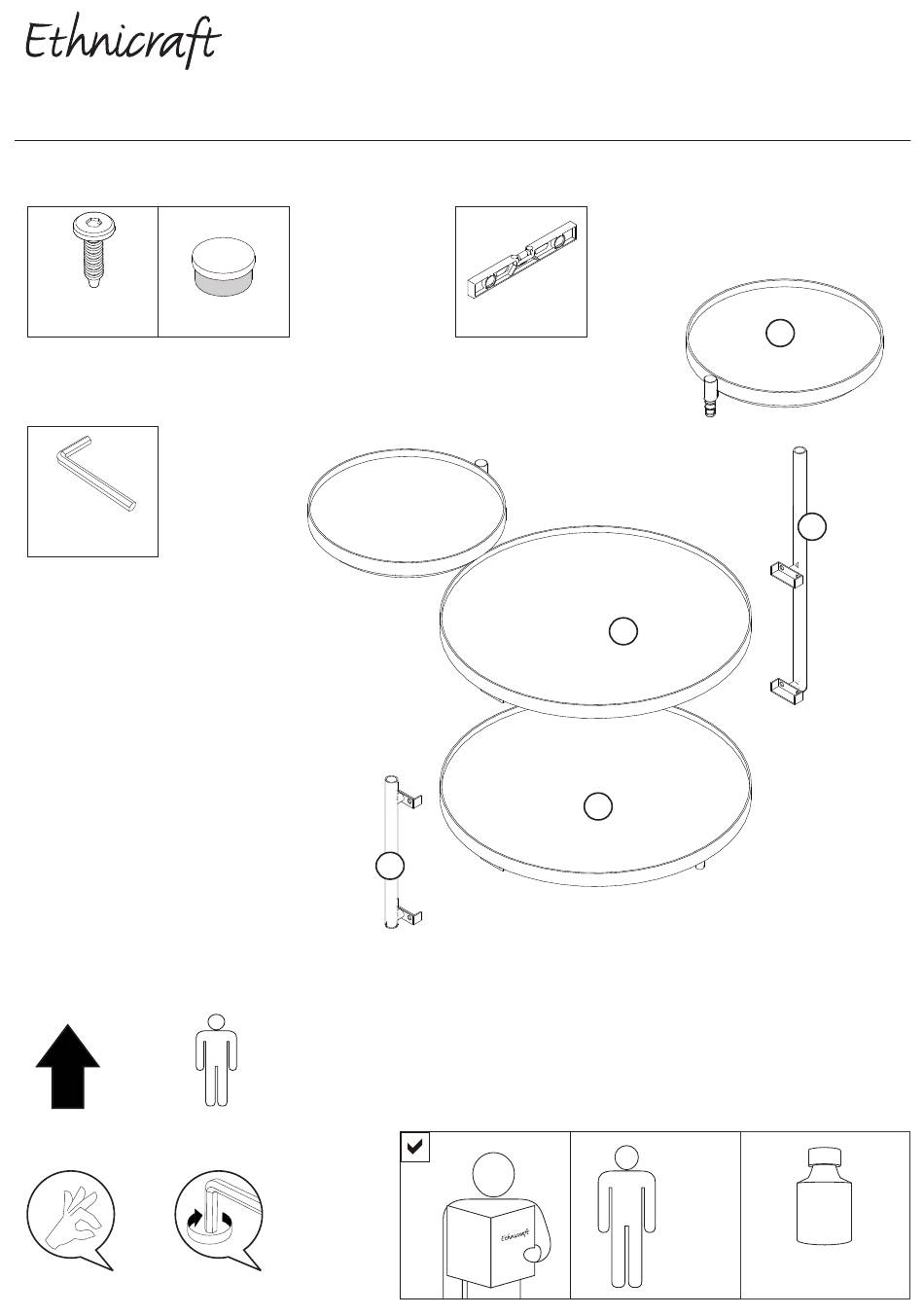

ASSEMBLY INSTRUCTIONS
HARDWARE ENCLOSED
JCBC SCREW
M6x15mm
(8pcs)
TOOL ENCLOSED
ALLEN KEY
IN YOUR PACKAGE
ASSEMBLY INSTRUCTIONS
HARDWARE (AS LISTED ABOVE)
PARTS TO BE INSTALLED
1. BOTTOM PLATTER 1pc
2. MIDDLE PLATTER 1pc
3. SHORT BAR 1pc
4. LONG BAR 1pc
5. TOP PLATTER 1pc
SYMBOLS
DIRECTION
NUMBER OF
PERSON NEEDED
USE HAND
USE ALLEN KEY
TO TIGHTEN
GREASE
TOOL REQUIRED
LEVEL
3
NOTICE
2
1
X1
MAXIMUM LOAD
OF TOP PLATTER
1 / 4
5
4
5
Kg /
11Lb
Advertisement
Table of Contents
Related Manuals for Ethnicraft SWIVEL TRAY SIDE TABLE
Summary of Contents for Ethnicraft SWIVEL TRAY SIDE TABLE
- Page 1 1 / 4 SWIVEL TRAY SIDE TABLE - VARNISHED TEAK - BLACK ASSEMBLY INSTRUCTIONS HARDWARE ENCLOSED TOOL REQUIRED JCBC SCREW M6x15mm LEVEL GREASE (8pcs) TOOL ENCLOSED ALLEN KEY IN YOUR PACKAGE ASSEMBLY INSTRUCTIONS HARDWARE (AS LISTED ABOVE) PARTS TO BE INSTALLED 1.
- Page 2 2 / 4 SWIVEL TRAY SIDE TABLE - VARNISHED TEAK - BLACK ASSEMBLY INSTRUCTIONS INSTALLING SHORT & LONG BARS TO BOTTOM PLATTER - USE JCBC SCREW M6x15mm (X4) LEGS FACING OUTWARD - DO NOT FULLY TIGHTEN WORK ON A SOFT SURFACE SUCH AS CARPET OR THICK DROPCLOTH TO AVOID DAMAGING THE PRODUCT DURING ASSEMBLY.
- Page 3 3 / 4 SWIVEL TRAY SIDE TABLE - VARNISHED TEAK - BLACK ASSEMBLY INSTRUCTIONS INSTALLING MIDDLE PLATTER ¸ - USE JCBC SCREW M6x15mm (X4) - DO NOT FULLY TIGHTEN ADJUST MIDDLE PLATTER FLATNESS LEVEL TIGHTEN FULLY ONCE THE MIDDLE PLATTER IS FLAT...
- Page 4 4 / 4 SWIVEL TRAY SIDE TABLE - VARNISHED TEAK - BLACK ASSEMBLY INSTRUCTIONS INSTALLING TOP PLATTER ¸ - APPLY SMALL AMOUNT OF GREASE TO THE ROD OF THE TOP PLATTER - REAPPLY GREASE WHENEVER MOVEMENT OF THE TOP PLATTER...
