Ethnicraft Spindle Bed Assembly Instructions

TEAK SPINDLE BED - QUEEN SIZE - WITH SLATS
ASSEMBLY INSTRUCTIONS FOR BED INSTALLATION

HARDWARE ENCLOSED

HALF MOON BOLT
WASHER M8x100 mm
(4pcs) (4pcs)
JCBC SCREW
L BRACKET
M6x6mm
(8pcs)
(8pcs)
SPRING WASHER WASHER
M6 M6x18
(2pcs) (2pcs)

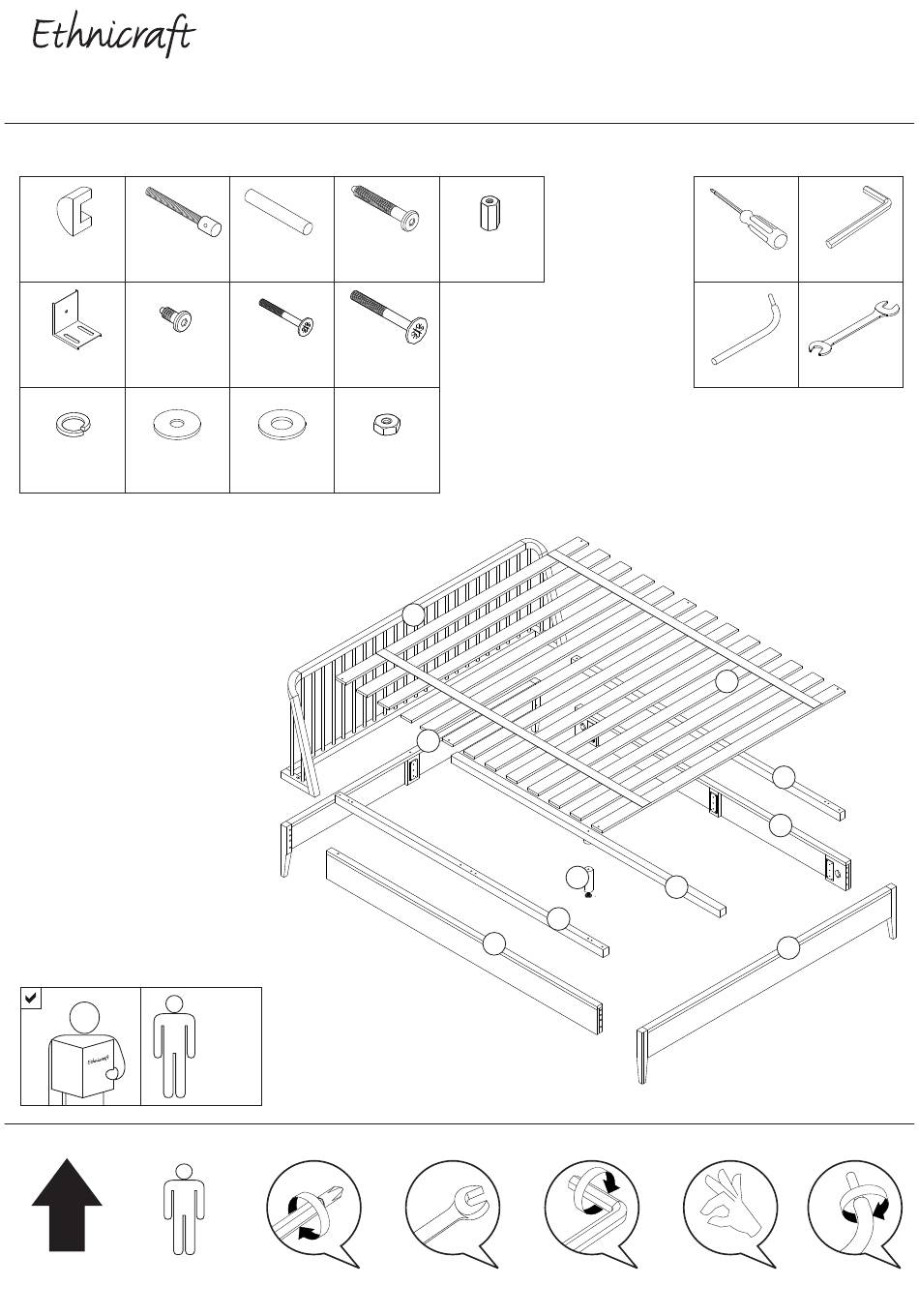

IN YOUR PACKAGE :
ASSEMBLY INSTRUCTIONS
HARDWARE (AS LISTED ABOVE)

PARTS TO BE INSTALLED :

1. HEADBOARD 1pc
2. BED HEAD 1pc
3. FOOTBOARD 1pc
4. SIDERAILS 2pcs
5. CENTER SUPPORT 1pc
6. CENTER LEG 1pc
7. SLATS SUPPORTS 2pcs
8. SLATS 1set
NOTICE
X3

SYMBOLS

DIRECTION NUMBER OF
PERSONS NEEDED
JCBC SCREW
DOWEL
M6x70 mm
Ø12x50 mm
(3pcs)
(8pcs)
JF SCREW JF SCREW
M6x50mm M6x80
(5pcs) (18pcs)
WASHER NUT
M6 M6
(22pcs) (22pcs)
2
1
USE SCREWDRIVER USE WRENCH
TO TIGHTEN TO TIGHTEN
LONG NUT
M6
(2pcs)
6
7
(L)
4
USE L KEY
TO TIGHTEN

TOOLS

SCREWDRIVER L KEY
(Not included in package) ( Included in package )
BOLT KEY WRENCH
( Included in package ) (Included in package)
8
7
(R)
4
5
3
USE HAND USE HALFMOON KEY
TO TIGHTEN
1 / 5
