Jimmy H8 FLEX Cleaning And Maintenance

JIMMY H8 FLEX / H10 PRO Cleaning & Replacing Parts

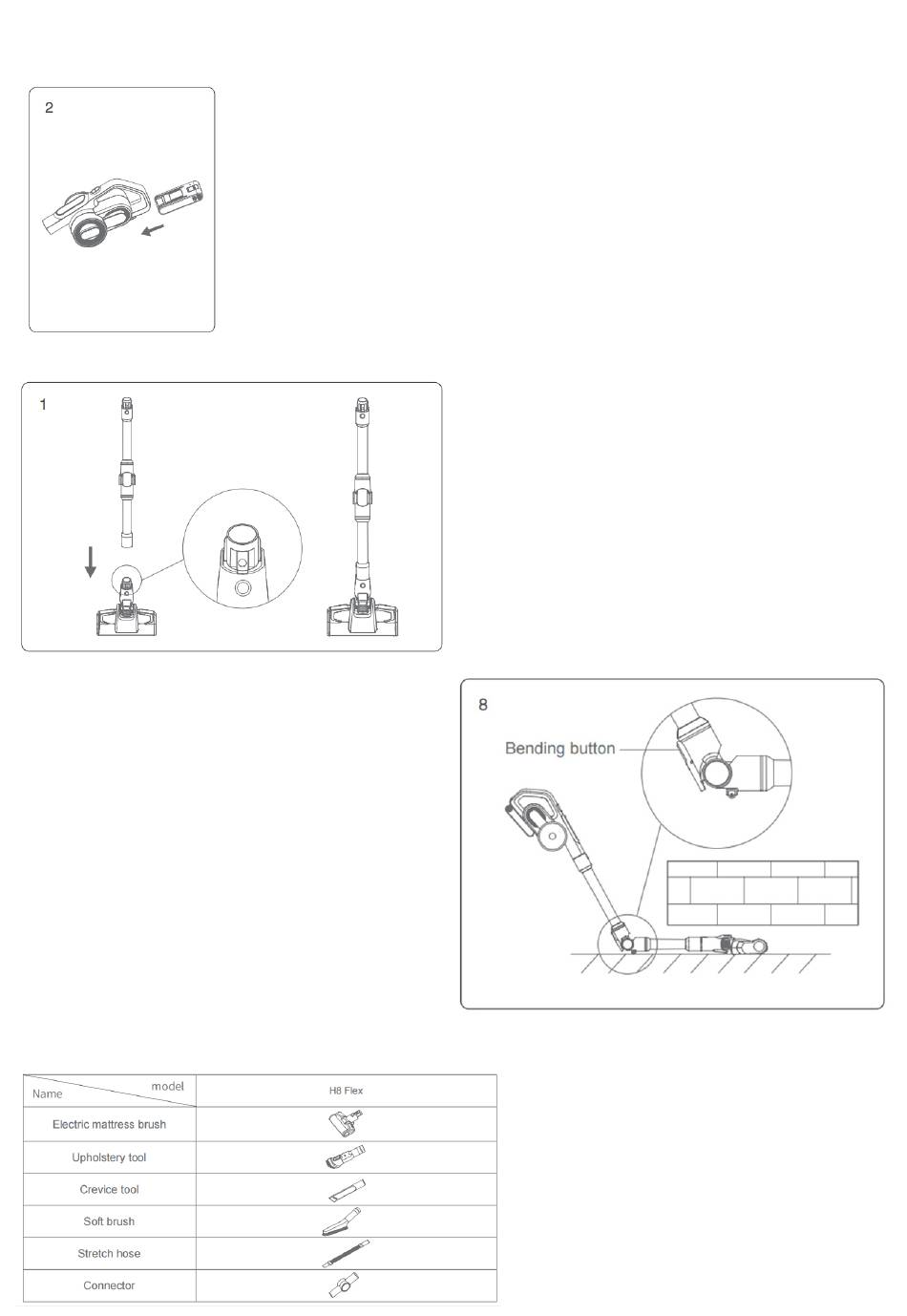

Use of flexible metal tube
The flexible metal tube has two modes: vertical
and bending. The vertical mode is equivalent
to the normal metal tube. The bending mode
can be used for cleaning under the table
bottom, bed bottom, etc.
When the bending mode is needed, press the
bending button as shown in the g picture, and
the metal tube can achieve 0-90° bending
angle.
Assemble the battery pack
Hold the hand-held vacuum cleaner in one hand, hold the battery pack in the
other hand, aim at the guiding groove on the body, slide in the battery pack
according to the arrow direction shown in the picture. Pull the battery pack
after installation to make sure it does not get loose.
Attention: when the vacuum cleaner is long idled, please remove the battery,
pack the product and store it in a cool and dry place, avoid direct sunlight or
humid environment.
Assemble electric floor head with
metal tube
Hold the floor head with left hand, use right hand
to insert the metal tube vertically into floor head,
align with the conductive needle, press the tube
until a "click" sound is heard.
Attention: Keep the handle and floor head in the
same direction, conductive needle shall align with
the socket.
Assembly of Accessories
For the convenience of use, this product is
specially equipped with some accessories
for the hand-held part of the vacuum
cleaner.
When you use the handheld vacuum
cleaner alone, you can directly connect
the accessories according to your needs
or connect the accessories through the
stretch hose.
