TRASSIR TR-D3121IR2W Quick Start Manual

TRASSIR TR-D3121IR2W Quick Start Manual

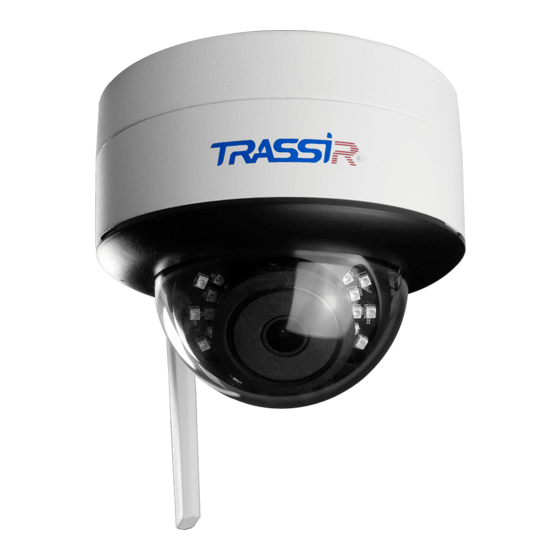

2mp dome wireless ip camera

Advertisement

Quick Links

Specification
Model
TR-D3121IR2W
Image sensor
1/2.7" CMOS 2MP
Resolution
FullHD(1920x1080)
Frame rate
FullHD@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Mechanical ICR
Day/Night mode
Sensitivity
0.005Lux (F1.8)
IR range
up to 25 m
Lens (mm)
Field of view (horiz./vert.)
100˚±5˚ / 54˚±5˚
Axes setting
Pan: 0˚-340˚
Tilt: 0˚-70˚
Rotation: 0˚
WDR
Real WDR (120dB)
Digital Noise Reduction
Video compression
Н.265+ / Н.265 / H.264+ / H.264
Bitrate
up to 8Mbps
Local storage
MicroSD up to 128GB
Built-in microphone
Audio
Corridor mode
Wi-Fi
IVS
Human detection
Line crossing
Intrusion detection
Power
Power consumption
Casing material
Dimensions (mm)
Ø116.1 x 96.5
Net/Gross weight (g)
460 / 600
Ingress protection
IP66, IK10
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8
3D DNR
Yes
2.4 Ghz
12V DC
3.8 W
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D3121IR2W
2MP Dome Wireless IP camera
2МP
IK10
-40°
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR-D3121IR2W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TRASSIR TR-D3121IR2W

  • Page 1 Net/Gross weight (g) 460 / 600 Ingress protection IP66, IK10 Working temperature -40°C … +60°C Data ___________________________ Stamp ___________________________ IK10 Here is the confirmation form for warranty assurance -40° Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
  • Page 2 Please read the User Manual before using the camera. 2. Create your user account at cloud.trassir.com. other device on the network should not match. 3. Download TRASSIR app for your smartphone from Google Play or AppStore. The IP camera has the following default settings: 4.
