TRASSIR TR-D3221WDIR3 Manual

Specification
Model TR-D3221WDIR3
Image sensor 1/2.8" CMOS STARVIS 2МP
Resolution FullHD(1920x1080)
Frame rate 50Hz: FullHD@25fps
60Hz: FullHD@30fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.005Lux (F1.8)
IR range up to 30 m
Lens (mm)
Field of view (horiz./vert.) 2.8mm: 101˚ / 55˚
3.6mm: 85˚ / 46˚
Axes setting Pan: 0˚-360˚
Tilt: 0˚-80˚
Rotation: 0˚-360˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio Вuilt-in microphone
1 in / 1 out
Alarm In/Out
Corridor mode
IVS
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 4.6W
PoE: 5.5W
Case material
Dimensions (mm) Ø116.10 x 96.51
Weight Net/Gross (g) 450 / 580
Protection IP66, IK10
Power surge TVS 4000V
suppressor
-40°C ... +60°C
Working temperature
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
1 / 1
Yes
Yes
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

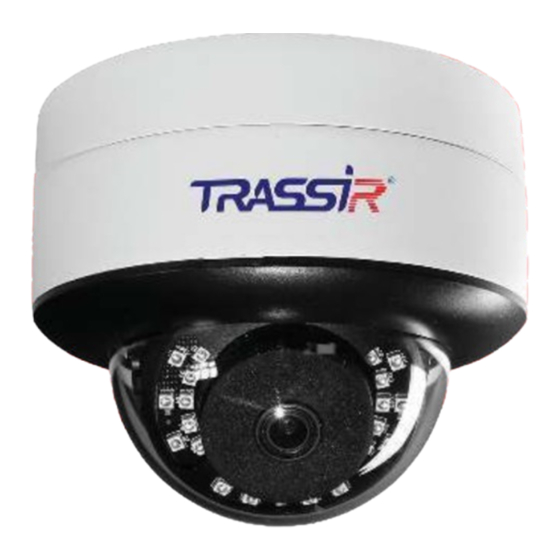

TR-D3221WDIR3
Vandal-proof IR Network Dome Camera
IK10
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
