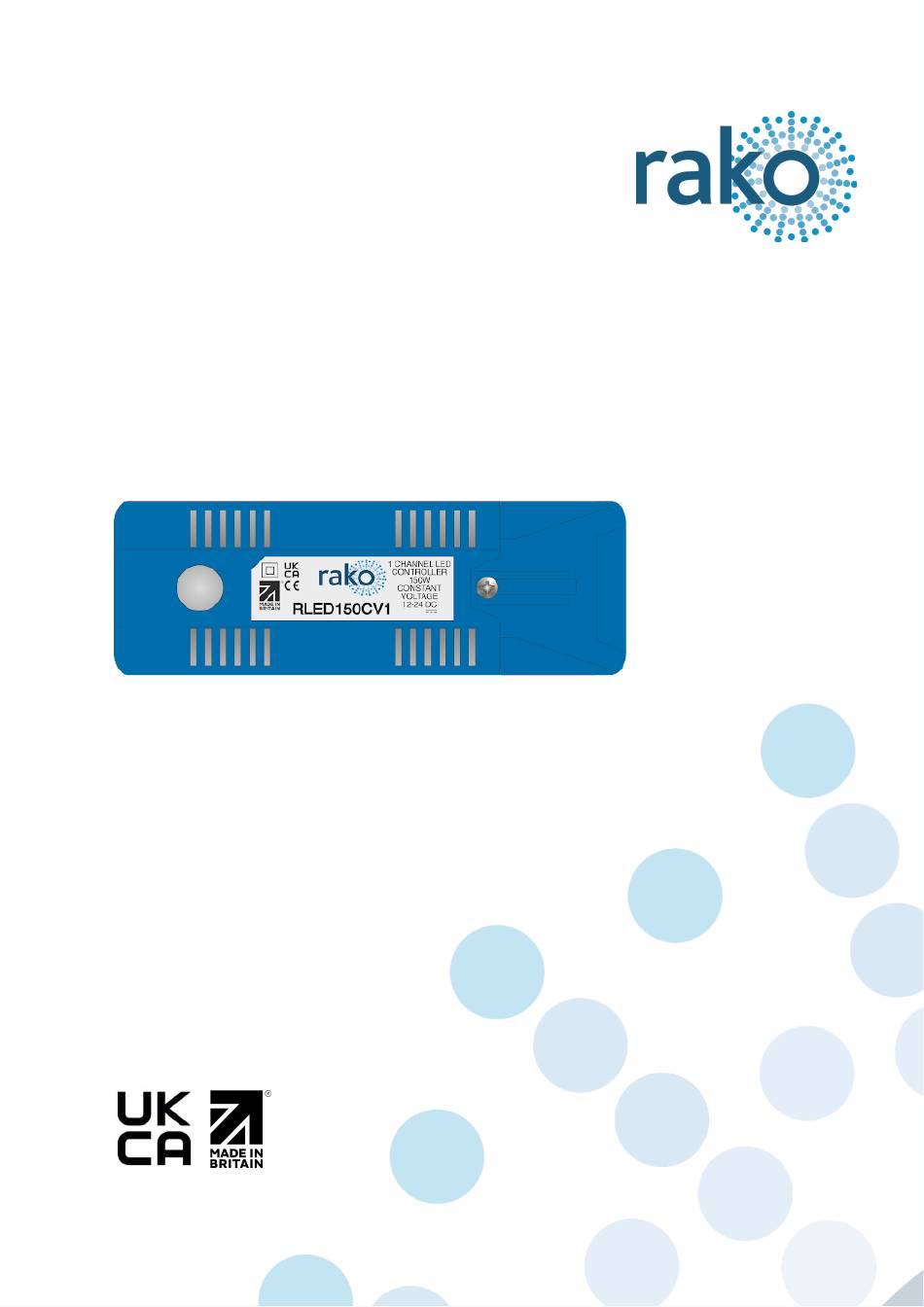

- Page 1 Instruction Manual RLED150CV1 1 Channel Constant Voltage Dimmer 2024 Version 2.0.0...
-
Page 2: Table Of Contents
The RLED150 can be programmed from an RCM keypad, or via Rasoft Pro using a programming tool (RAMPI or HUB). Ceiling installation or surface mount installation is available for the RLED150CV1, For surface mount installation, a bracket is provided. *requires a WK-HUB in range of the RLED150CV1... -
Page 3: Installation
Installation should only be carried out by a competent electrician. Do not connect directly to a 230V supply. ● RLED150CV1 modules should be mounted in areas which are adequately ventilated, dry, and outside of any enclosed metal casings that may interfere with the Wireless signal. -
Page 4: Initial Checks
The clear button can be used as a manual on/off switch. The internal LED behind the clear button will flicker when the module receives any Rako Wireless message and is a useful diagnostic indicator. This function becomes inactive after 20 minutes to avoid a nuisance light spill but can be re-activated by pressing the clear button. -
Page 5: Appendix 1: Led Diagnostics
6 Appendix 1: LED Diagnostics Wireless Range LED Pulses Description Good Wireless reception When the unit is receiving successfully, there will be four rapid pulses on the LED when any Wireless message is sent. Bad Wireless reception When the unit is out of range, there will be intermittent pulses on the LED when any Wireless...
