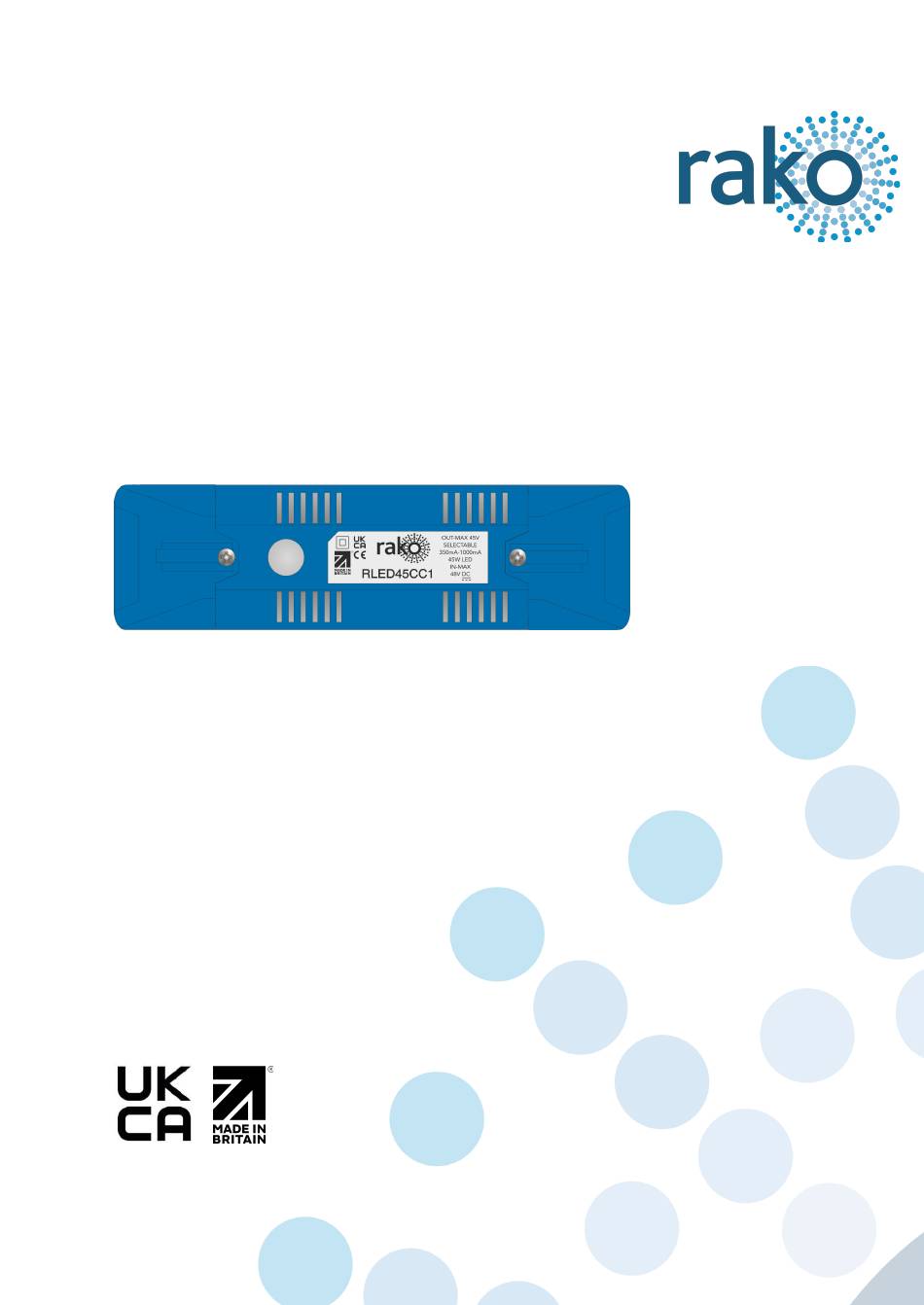

- Page 1 Instruction Manual RLED45CC1 Single Channel Constant Current Dimmer 2024 Version 2.0.0 RLED45CC1 Manual Version 2.0.0...
- Page 2 Appendix 1: Example wiring diagram Appendix 2: LED Diagnostics 1 What is the RLED45CC1? ● The RLED45CC1 is a Constant Current LED dimmer designed for controlling a single Constant Current load. ● Offering various output options, the RLED45CC1 supports 350mA, 500mA, 600mA, 700mA and 1000mA loads.
- Page 3 DO NOT CONNECT DIRECTLY TO THE MAINS SUPPLY. ● All LED fittings should be wired in series. ● RLED45CC1 modules should be mounted in areas that are adequately ventilated, dry, and outside of any enclosed metal casings that may interfere with the Wireless signal.
- Page 4 5 Programming the RLED45CC1 Once the RLED45CC1 has powered up and has been tested working with the setup button, the device is ready to be programmed. For instructions on how to program the RLED45CC1, see the Wireless Module Setup Guide.
- Page 5 When the unit is out of range, there will be intermittent pulses on the LED when any wireless message is sent. It is recommended to install a wireless repeater (WRB-100) if you are experiencing intermittent wireless range. RLED45CC1 Manual Version 2.0.0...
