Please read instructions carefully
Remove all wrapping materials, staples and packing straps from the carton. Refer to Parts List and Hardware List and ensure they are complete
before you start assembling. Place all wooden parts on a clean, flat and soft surface (e.g carpet or rug) to prevent parts from being scratched.
CAUTIONS: 1) DO NOT FULLY TIGHTEN BOLTS AND NUTS UNTIL ALL PARTS HAVE BEEN ASSEMBLED.
2) DO NOT OVER-TIGHTEN BOLTS AND NUTS .
3) KEEP ALL HARDWARE PARTS OUT OF REACH OF CHILDREN.
Carton
Designation
LEG FRAME-
LEG FRAME-
SUPPORT RAIL
BACKREST
1
ASSEMBLY INSTRUCTIONS

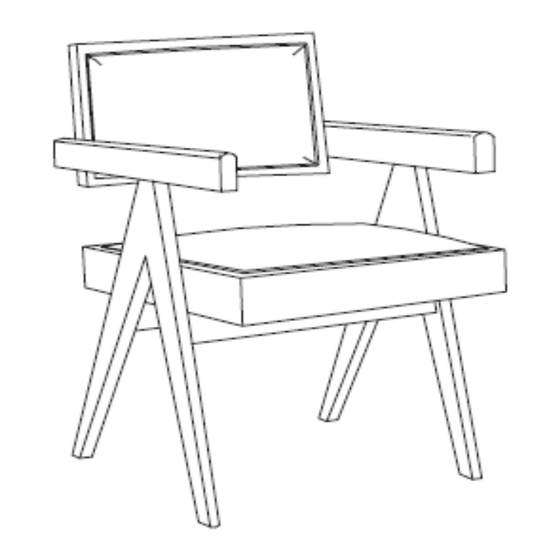

MODEL : 3269-02 RAQUEL DINING CHAIR
RIGHT
LEFT
SEAT
Part List
P1 x 2pc
P2 x 2pc
P3 x 4pc
P4 x 2pc
P5 x 2pc
COMPLETE ASSEMBLY
Hardware List
H1 x 16pc
M6x35mm JCBC SCREW
H2 x 8pc
M6x50mm JCBC SCREW
H3 x 24pc
Spring Washer
H4 x 8pc
Flat Washer(Big)
H5 x 8pc
Flat Washer(Small)
H6 x 16pc
Wood Dowel M10x30mm
H7 x 16pc
Wood Dowel M8x30mm
H8 x 8pc
Wood Button
H9 x 1pc
Allen Key
Page 1 of 4
