Assembly Instructions

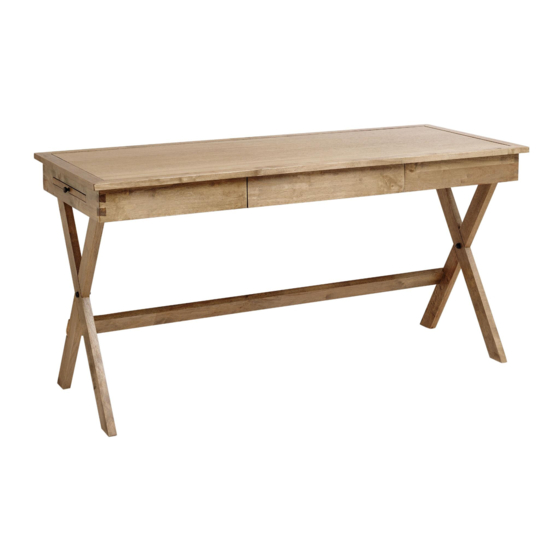

Campaign Desk
SKU 437522
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY
2023.08.09
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 437522 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for World Market 437522

  • Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
  • Page 2: Component List

    Component List Q.TY LABEL PICTURE DESCRIPTION Top Frame FRONT FRONT Bottom Brace PAGE 2...
  • Page 3: Hardware List

    Hardware List Q.TY LABEL PICTURE DESCRIPTION Allen Bolt M6 x 40 Bolt M10 x 40 Lock Washer Ø6 x Ø10.5 x T2 mm Flat Washer Ø6 x Ø16 x T1 mm Flat Washer Ø10 x Ø22 x T2 mm Nut M10 x 16 mm Anti Tip-kit Tool List LABEL...
  • Page 4: Assembly Preparation

    Assemble on a clean non-marring surface (such as the product's packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362.
  • Page 5: Assembly Steps

    Assembly Steps Step 1 FRONT Place Top Frame (A) on non-marring surface. Pull Drawer out and press on the plastic drawer stop to completely remove Drawer. Step 2 (H-2) Bolt x 2 (H-5) Flat Washer x 2 (H-6) Nut x 2 (T-2) Wrench Insert Bolt (H-2) into the pre-drilled hole in the Leg (B).
  • Page 6 Step 3 (H-1) Allen Bolt x 8 (H-3) Lock Washer x 8 (H-4) Flat Washer x 8 (T-1) Allen key Using a second person to assist you, carefully place the Top Frame (A) upside down onto a padded, non-marring surface. Position Leg (B) onto Top Frame (A) and loosely secure with Allen Bolts (H-1), Lock Washers (H-3) and Flat Washer (H-4) using the provided Allen Key (T-1), stacking the hardware in the order as shown.
  • Page 7 Step 5 FRONT Using a second person to assist you, carefully turn the assembled unit upright and insert Drawer into the Top Frame (A). Step 6 NOTE: Levelers can be used for adjustment if needed. FRONT Assembly is now complete and the product is ready for use. Adjustable levelers are located on the bottom of each leg and may be adjusted by turning outwards, counter-clockwise to help account for uneven surfaces.
  • Page 8 Anti-Tip Measures WARNING Furniture tip overs can result in death or serious injuries. To reduce the likelihood of tip over, this product should be used with the enclosed Anti-Tip Kit. This Anti-Tip Kit is only a deterrent. It is not a substitute for proper adult supervision. Manufacturer and retailer assume no liability for improper installation or excess loads placed on screws, brackets, or straps.
  • Page 9: Care And Maintenance

    • Place heaviest items in the lowest drawers. Not intended for clothing storage use. All products sold at World Market are not for commercial use and are intended for residential use only. Care & Maintenance DO NOT put hot items directly on furniture surface.
  • Page 10 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par�al credit, in the sole discre�on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
