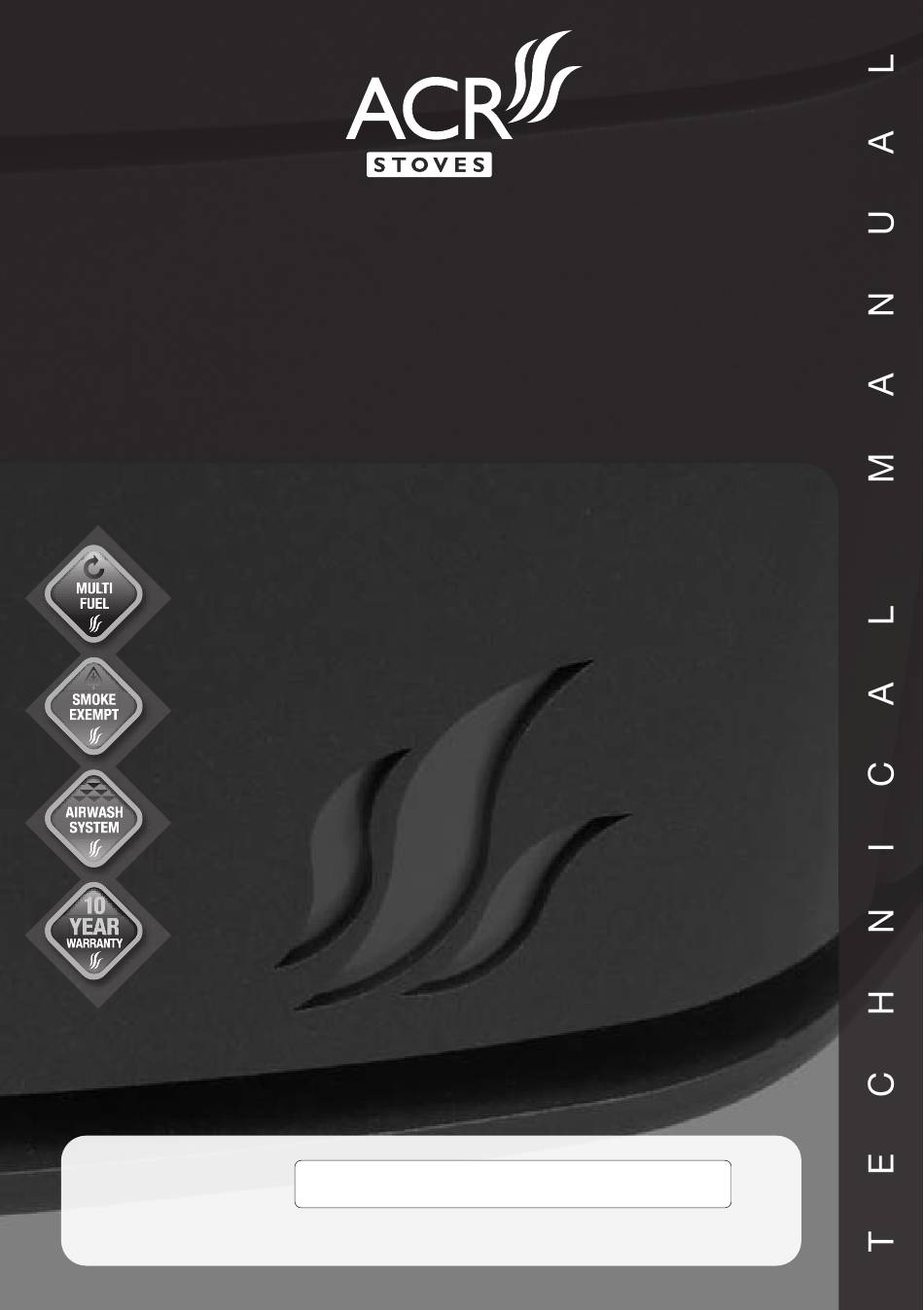

- Page 1 Multifuel Stove • Model Neo 1 / Neo 3 To be retained by the user for future reference Thank you for purchasing an ACR Heat Products stove MULTI FUEL SMOKE EXEMPT AIRWASH SYSTEM YEAR YEAR WARRANTY Serial Number: Document NEO • Version 3 Date 08/07/15...
- Page 2 Important! The Clean Air Act 1993 and Smoke Control Areas Under the Clean Air Act local authorities that appliances used to burn solid fuel may declare the whole or part of the in those areas (other than "authorised" To ensure that you gain the most from your purchase, please fuels) have been exempted by an Order district of the authority to be a smoke take a few minutes to read through this manual before lighting...
- Page 3 Neo Specifications Neo 1C / 3C Fuel Neo 1W / 3W Fuel Wood with Solid Fuel Option Wood with Solid Fuel Option Nominal Output Nominal Output 5 kw 5 kw Net Efficiency Net Efficiency 81.8% 81.8% Gross Efficiency Gross Efficiency 74.4% 74.4% Max Hearth Temp...
- Page 4 Neo Specifications Installation Instructions Location of the unit of the flue pipe (e.g. 125mm diameter Neo 1P-1C/ Neo 1P-1C/ Neo1W/ Neo1W/ Neo1F/ Neo1F/ Neo 3P-3C Neo 3P-3C Neo 3W Neo 3W Neo 3F Neo 3F pipe = 375mm minimum clearance) from Wood Smokeless Wood...
- Page 5 Installation Instructions Installing the Neo 1W/3W Flue Requirements flue system without removal of the To install the Neo wall hung version firstly check the suitability of the appliance The chimney must comply with current wall where the appliance is to be mounted, paying particular attention to Building Regulations.
- Page 6 • The minimum distance above the Operating your stove finished hearth level is 300mm • Secure to the wall using a suitable heavy duty wall fixing which is Please note that during the first firing, Recommended Fuels applicable to the wall type and is also we recommend a small fire is lit and heat resistant Wood: hardwood such as ash, oak and...
- Page 7 Operating your stove Operating your stove Instructions for use with • Care should be taken to ensure that Re-fueling Fuel overloading the logs are not placed higher than Never overload the stove - it will work When refueling the stove always refuel wood the log guard allows.
- Page 8 Maintenance We recommend that the appliance is serviced annually by a competent engineer to ensure it’s continued safe operation. The chimney should be swept at least This will overheat the grate and cause once a year together with the flue pipe premature wear and distortion.
- Page 9 Parts Information Neo 1C Parts Information Neo 3C Diagram No. Part No. Description Quantity Required Diagram No. Part No. Description Quantity Required N4140002 Vermiculite side bricks N41040001 Vermiculite right side brick N41040003 Vermiculite rear brick N41040002 Vermiculite left side brick N41040004 Vermiculite baffle N41040003...
- Page 10 Parts Information Neo 1P Parts Information Neo 3P 15 28 21 16 29 Diagram No. Part No. Description Quantity Required Diagram No. Part No. Description Quantity Required N4140002 Vermiculite side bricks N41040001 Vermiculite right side brick N41040003 Vermiculite rear brick N41040002 Vermiculite left side brick N41040004...
- Page 11 Parts Information Neo 1W / 1F Parts Information Neo 3W / 3F 30 18 13 12 Diagram No. Part No. Description Quantity Required Diagram No. Part No. Description Quantity Required N4140002 Vermiculite side bricks N41040001 Vermiculite right side brick N41040003 Vermiculite rear brick N41040002 Vermiculite left side brick...
- Page 12 Commissioning Check List Warranty Claim Form Please tick boxes when each procedure is completed Customer Name: Ensure the serial number has been recorded on the front of this manual for any Customer Address: future use Ensure the door seals are in good condition and that the glass is secured correctly in the door (do not over tighten the glass as this will prohibit its expansion and could cause the glass to crack) Postcode...
- Page 13 ACR Heat Products Limited, Unit 1, Weston Works, Weston Lane, Tyseley Birmingham B11 3RP, England. • Tel: 0121 706 8266 • Fax: 0121 706 9182 • E-mail: enquiries@acrheatproducts.co.uk • www.acrheatproducts.co.uk...
Need help?
Do you have a question about the Neo 1 and is the answer not in the manual?
Questions and answers
HOW TO REMOVE BAFFLE PLATE ON A NEO 1
To remove the baffle plate on an ACR Stoves Neo 1, follow these steps:
1. Fully unpack the appliance.
2. Remove the top casting plate.
3. Carefully tilt the mounting bracket away from the appliance at the top and remove it from the bottom.
4. Locate and remove the two bolts securing the inner blanking plate.
5. With access inside the stove, the vermiculite baffle (part no. N41040004) can be removed.
Always support components when removing to avoid damage.
