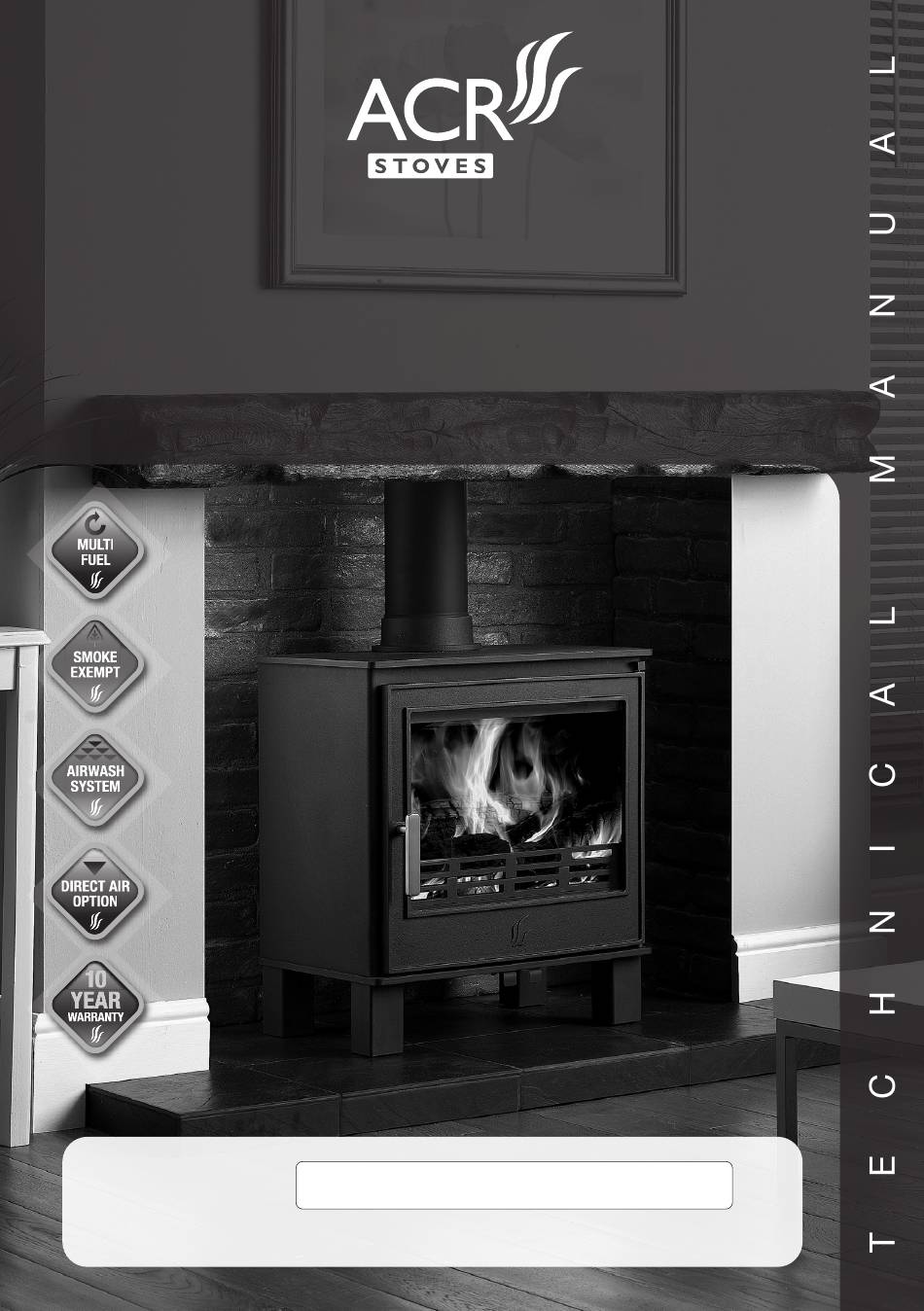

- Page 1 Buxton II Multifuel Stove Model • BUX2MF To be retained by the user for future reference Thank you for purchasing an ACR Heat Products stove MULTI FUEL SMOKE EXEMPT AIRWASH SYSTEM DIRECT AIR OPTION YEAR YEAR WARRANTY Serial Number: BUX2MF 0101 • Version 1 Date 27/06/17...
- Page 2 IMPORTANT INFORMATION To ensure that you gain the most from your purchase, please take a few minutes to read through this manual before lighting the appliance for the first time. Since April 2002 only registered competent installers can install solid fuel appliances. Installations carried out by non-registered installers must be inspected by local authority building control.
- Page 3 Buxton II Specifications Nominal heat output 5 kW - Wood 5 kW - Maxibrite Chimney draft required 12Pa Min. Start up Height 596 mm Width 520 mm Depth 363 mm Weight 95 kg Air Requirement N/A *** Flue Mass Gas Flow 4.4 g/s - Wood...
-
Page 4: The Clean Air Act 1993 And Smoke Control Areas
Welsh Ministers. from a furnace or from any fixed boiler if • Buxton II located in a designated smoke control (BUX2MF) has been area. It is also an offence to acquire an... -
Page 5: Installation Instructions
Installation Instructions Location of the unit Hearth Requirements The appliance must stand on a level Clearances to non- fireproof hearth with a minimum combustible materials thickness of 12mm. The hearth temperature created by this stove is There is a recommended minimum below 100˚C. -
Page 6: Assembly Of The Unit
Assembly of the unit This appliance is equipped with a pre-fitted manufacturers smoke exempt stop. Under no circumstances should it be tampered with or removed unless expressly authorised by a competent person and the appliance is not installed in a smoke exempt area. If the appliance is to be installed in a non smoke exempt area you can remove the restricting screw on the secondary air control (on right hand side under the ash lip) to allow full movement of the secondary air slider. -
Page 7: Operating Your Stove
Operating your stove Please note that during the first firing, Prohibited Fuels we recommend a small fire is lit and that you slowly increase the Green wood: i.e wood which is less than 2 years old with a temperature to enable the various moisture content of above 20% parts to expand normally. - Page 8 Operating your stove down and pull outwards to increase the burn rate. • Care should be taken to ensure that the logs are not placed higher than the log guard allows. Instructions for use with smokeless fuel • Pull the secondary air slider under the •...
- Page 9 Operating your stove Re-fueling Fuel overloading Never overload the stove - it will work When refueling the stove always refuel very well with two medium sized logs. onto a bed of hot embers, fully open The amount of fuel specified in this the secondary and primary air controls manual should not be exceeded, until the new fuel is well alight, before...
-
Page 10: Troubleshooting
Troubleshooting Problem Probable Cause Action Recommend Fire difficult to • Green wood / wet wood Use hardwood logs with a maximum start / goes out moisture content of 20% • Logs are too large Use kindling and small logs to start the fire and once established use split logs •... -
Page 11: Commissioning Check List
To remove the internal vermiculite baffle: second side brick in the same manner, Firstly remove the front fuel retaining the vermiculite lower baffle can now be bars. Remove the fuel retaining bar removed by lowering the front edge and bracket bolts and brackets. Remove the rotating the baffle and removing through grate. -
Page 12: Parts Information
Parts Information Not shown on diagram Not shown on diagram... - Page 13 Diagram No. Description Part No. Quantity Required door handle 9900-1142 door retaining bracket 5411-128 door handle locking rod 5035-405A locking rod grub screw GRUBSCREW cast iron door 4490-1913 door locking plate 5011-406A Glass clip 6612-219 glass gasket 1982-004 door gasket 1982-012 glass 5540-280...
-
Page 14: Warranty Information
Warranty Information With the aim of constantly consumable items such as glass, improving our products, all door seals, vermiculite panels, baffle plates and ashpan runners. modifications considered This 10 year warranty is only necessary may be made without applicable when the stove is notice. -
Page 15: Warranty Claim Form
Warranty Claim Form In the unlikely event of a warranty claim, please complete the below claim form and return it to your supplying dealer: Customer Name: Customer Address: Postcode: Daytime Tel: Mobile Tel: Model Name: Model Number: Serial Number: Date of purchase: Date of installation: Installer’s Name and address: Installer’s Registration Number:... - Page 16 ACR Heat Products Limited, Unit 1, Weston Works, Weston Lane, Tyseley Birmingham B11 3RP, England. • Tel: 0121 706 8266 • Fax: 0121 706 9182 • E-mail: enquiries@acrheatproducts.co.uk • www.acrheatproducts.co.uk...
