Summary of Contents for ACR STOVES Solis SOLMF

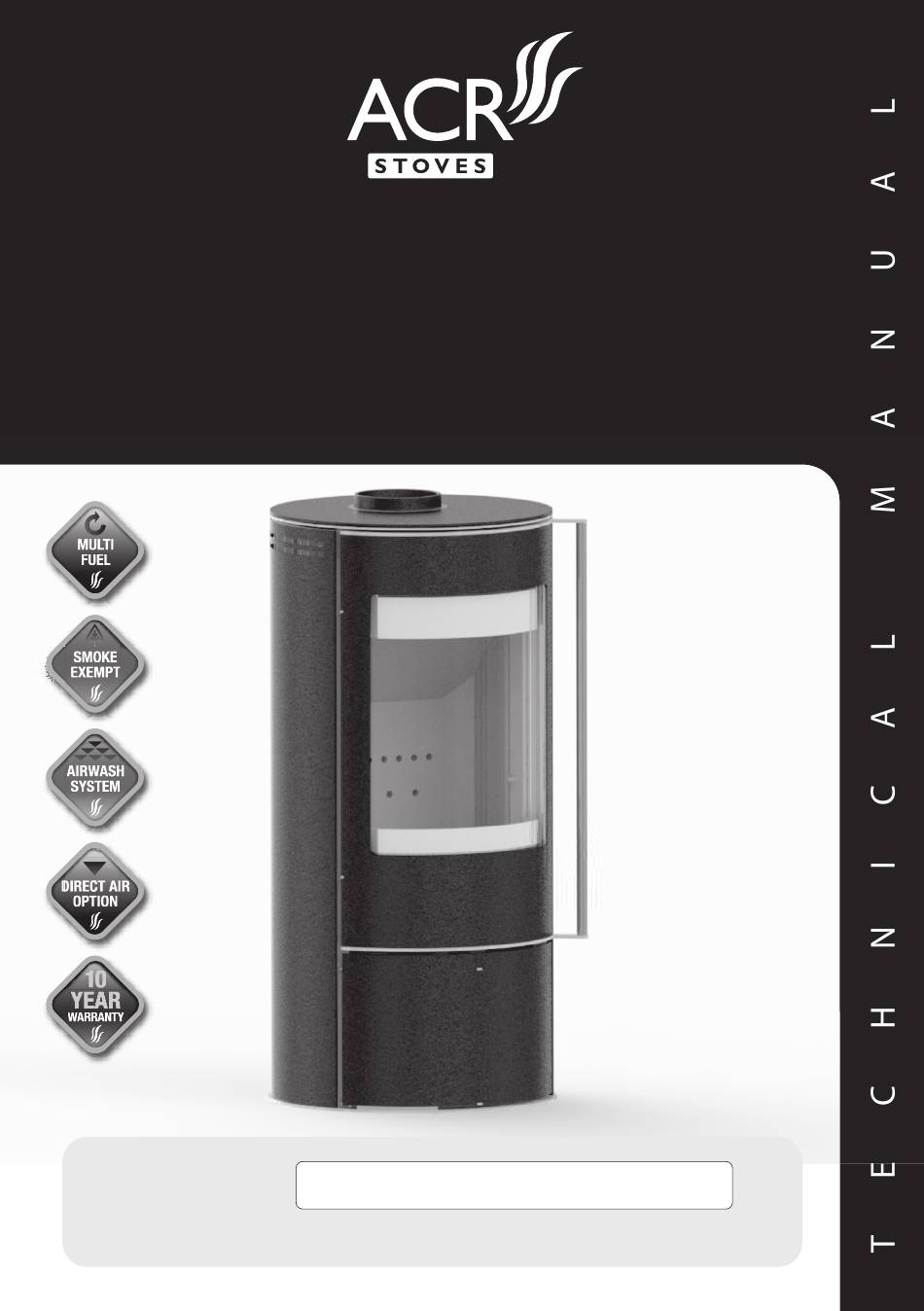

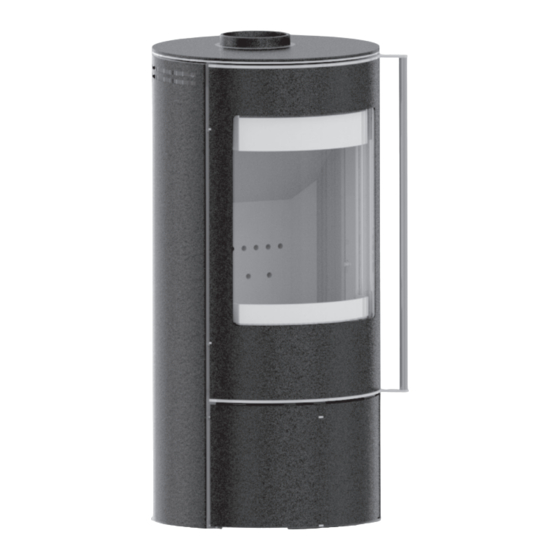

- Page 1 Solis Multifuel Stove • Model SOLMF To be retained by the user for future reference Thank you for purchasing an ACR Heat Products stove MULTI FUEL SMOKE EXEMPT AIRWASH SYSTEM DIRECT AIR OPTION YEAR YEAR WARRANTY Serial Number: Document Solis • Version 2 Date 1/06/18...
- Page 2 IMPORTANT INFORMATION To ensure that you gain the most from your purchase, please take a few minutes to read through this manual before lighting the appliance for the first time. Since April 2002 only registered competent installers can install solid fuel appliances. Installations carried out by non-registered installers must be inspected by local authority building control.
- Page 3 Solis Specifications Nominal heat output 5 kW - Wood 5 kW - Maxibrite Chimney draft required 12Pa Height 1004 mm Width 480 mm Depth 480 mm Weight 110 kg Air Requirement N/A *** Flue Mass Gas Flow 5.7 g/s - Wood 3.1 g/s - Maxibrite CO @ 13% O 0.09 Wood vol %...
-
Page 4: The Clean Air Act 1993 And Smoke Control Areas
The Clean Air Act 1993 and Smoke Control Areas Under the Clean Air Act local authorities and Rural Affairs under Section 16 of may declare the whole or part of the the Environmental Better regulation Act (Northern Ireland) 2016. district of the authority to be a smoke control area. -
Page 5: Installation Instructions
Installation Instructions Location of the unit Hearth Requirements The appliance must stand on a level Clearances to non-combustible fireproof hearth with a minimum thickness materials of 12mm. The hearth temperature • Solis created by this stove is below 100˚C. The hearth must protrude at least 225mm in There is a recommended minimum clearance of 150mm at each side of the... - Page 6 This appliance is equipped with a pre- tted manufacturers smoke exempt stop. Under no circumstances should it be tampered with or removed unless expressly authorised by a competent person and the appliance is not installed in a smoke exempt area. If the appliance is to be installed in a non smoke exempt area you can remove the restricting screw on the secondary air slider to allow full movement.
-
Page 7: Operating Your Stove
Operating your stove Instructions for use with • Care should be taken to ensure that the logs are not placed higher than wood the log guard allows. Instructions for use with smokeless fuel • Fully pull outwards both air controls Primary Secondary air control... -
Page 8: Daily Maintenance
Operating your stove Re-fueling Fuel overloading Never overload the stove - it will work When refueling the stove always refuel very well with two medium sized logs. onto a bed of hot embers, once the The amount of fuel specified in this new fuel charge has been introduced, manual should not be exceeded, open the secondary air control fully until... -
Page 9: Commissioning Check List
Commissioning Check List Please tick boxes when each procedure is completed Ensure the serial number has been recorded on the front of this manual for any future use Ensure the door seals are in good condition and that the glass is secured correctly in the door (do not over tighten the glass as this will prohibit its expansion and could cause the glass to crack) Ensure that all internal components are fitted correctly (these may have shifted in... -
Page 10: Parts Information
Parts Information... - Page 11 Diagram No. Description Part No. Quantity Required Front door glass 5540-371 Steel door complete 4411-1820 Left hand vermiculite side brick 6081-995 Left rear vermiculite side brick 6081-599 Airwash deflector 3811-994 lower vermiculite baffle 6081-1057 Flue collar gasket 1982-019 Flue collar 3490-002 Lower steel top plate 3311-1069...
-
Page 12: Troubleshooting
Troubleshooting Problem Probable Cause Action Recommend Fire difficult to • Green wood / wet wood Use hardwood logs with a maximum start / goes out moisture content of 20% • Logs are too large Use kindling and small logs to start the fire and once established use split logs •... - Page 13 Notes...
- Page 14 Warranty Information With the aim of constantly consumable items such as glass, door seals, vermiculite panels, improving our products, all modi cations considered ba e plates and ashpan runners. This 10 year warranty is only necessary may be made without applicable when the stove is notice.
-
Page 15: Warranty Claim Form
Warranty Claim Form In the unlikely event of a warranty claim, please complete the below claim form and return it to your supplying dealer: Customer Name: Customer Address: Postcode: Daytime Tel: Mobile Tel: Model Name: Model Number: Serial Number: Date of purchase: Date of installation: Installer’s Name and address: Installer’s Registration Number:... - Page 16 ACR Heat Products Limited, Unit 1, Weston Works, Weston Lane, Tyseley Birmingham B11 3RP, England. • Tel: 0121 706 8266 • Fax: 0121 706 9182 • E-mail: enquiries@acrheatproducts.co.uk • www.acrheatproducts.co.uk...
