Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 1
Thank you for purchasing an ACR Heat Products stove
MULTI
FUEL
DEFRA
EXEMPT
AIRWASH
SYSTEM
10
10
YEAR
YEAR
WARRANTY
Serial Number:
Document T400ECO 0101 • Version 1 Date 02/03/20

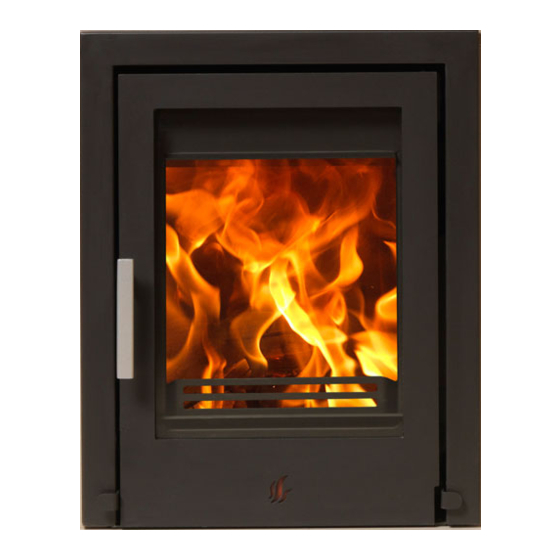

Tenbury
Multifuel Stove • Model T400ECO
To be retained by the user for future reference
Advertisement
Table of Contents
Related Manuals for ACR STOVES Tenbury T400ECO
Summary of Contents for ACR STOVES Tenbury T400ECO
- Page 1 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 1 Tenbury Multifuel Stove • Model T400ECO To be retained by the user for future reference Thank you for purchasing an ACR Heat Products stove MULTI FUEL DEFRA EXEMPT AIRWASH SYSTEM YEAR YEAR WARRANTY...
- Page 2 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 2 Important! To ensure that you gain the most from your purchase, please take a few minutes to read through this manual before lighting the appliance for the first time. Before installation, please ensure that the correct model has been supplied. Please make a note of the serial number of your appliance in the space provided on the front cover of this manual as this will be requested if you require technical assistance in the future.
- Page 3 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 3 Tenbury Specifications Nominal heat output 5 kW - Wood 5 kW - Maxibrite Chimney draft required 12Pa (on start up after initial 3 minutes) Height 550 mm (Internal Box) 588 mm (External Trim) Width 396 mm (Internal Box) 470 mm (External Trim) Depth...
- Page 4 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 4 Technical Data & Declaration of Performance...
- Page 5 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 5 The Clean Air Act 1993 and Smoke Control Areas Under the Clean Air Act local authorities the Department of Agriculture, Environment and Rural Affairs under may declare the whole or part of the Section 16 of the Environmental Better district of the authority to be a smoke regulation Act (Northern Ireland) 2016.
-
Page 6: Installation Instructions
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 6 Installation Instructions Important information Metal Parts This appliance may contain sharp metal Before installation and/or use of this edges, take care when installing or appliance please read these instructions servicing this appliance to avoid carefully to ensure that all requirements personal injury. - Page 7 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 7 Minimum Builders 384mm Opening For ease of installation the builders opening may be made slightly larger than the appliance dimensions, please 560mm see diagram opposite. The construction of fireplace recess should be of a suitable non-combustible material such as brick or concrete blockwork, and have a minimum...
- Page 8 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 8 Installation into a wooden decorative fireplace If the appliance is to be fitted in 400mm conjunction with a combustible fire surround the minimum clearances must be maintained, please see diagram opposite (100mm to the sides if 100mm 100mm...
-
Page 9: Operating Your Stove
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 9 Installation of the unit Remove the 4 x 10mm bolts located above the baffle. The appliance is supplied pre-assembled Remove the 2 x 10mm bolts located on with the flue spigot in the top exit position the left and right half way up between and the Smoke Exempt stop in place. - Page 10 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 10 closed completely, dial 999 for assistance. Recovered wood: i.e pallets, railway If the appliance has overheated, the sleepers etc. These will have been appliance and flue will need to be chemically treated and will pollute the inspected for any damage before it can be atmosphere and possibly overheat the...
- Page 11 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 11 primary air slider to the right hand side of should not be exceeded, overloading can the door by fully pushing the levers cause excess smoke. inwards. Glass • Lay firelighters or rolled up newspapers on the grate and add a small amount of Never operate the appliance if the glass kindling wood to the top.
- Page 12 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 12 Maintenance We recommend that the appliance is serviced annually by a competent engineer to ensure it’s continued safe operation. • The internal vermiculite panels of the Daily Maintenance appliance should be checked regularly •...
- Page 13 Sometimes minor hairline cracks can occur. All ACR stoves have a steel or to begin with and then gradually cast iron structure behind the panels working up to a larger fire. When adding...
-
Page 14: Commissioning Check List
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 14 Commissioning Check List Please tick boxes when each procedure is completed Ensure that the serial number has been recorded on the front of the manual for future use Visual Inspection of appliance and flue ensure that all internal components are fitted correctly (these may have shifted in transit) Ensure the door seals are in good condition and that... -
Page 15: Parts Information
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 15 Parts Information Diagram No. Part No. Description TB-03-10-00 Handle TB-03-00-00A Steel door TB-07-00-00 Three sided trim TB-07-00-04A Fourth/Bottom side trim S-4-310x400 Glass panel TB-04-00-00 Fuel retainer TB-05-00-00 Ashpan TB-200 Cast Iron solid fuel grate TB-02-80-00A Steel wood grate top TB-100A... -
Page 16: Troubleshooting
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 16 Troubleshooting Problem Reason Action Rapid creosote build-up in Wet wood Use dry seasoned wood (≤ 20% moisture content). the chimney or flue system (≥ 20% moisture) Operate at a high temperature for short periods each time the appliance is used to avoid large build-ups of tars and creosotes Tar coming from flue joints... - Page 17 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 17 Problem Reason Action Difficulty starting the fire Low flue draught Consult your installer and keeping it burning well Wet wood Use dry seasoned wood (≤ 20% moisture content) (≥ 20% moisture) Poor burning control High flue draught Consult your installer...
-
Page 18: Warranty Claim Form
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 18 Warranty Claim Form In the unlikely event of a warranty claim, please complete the below claim form and return it to your supplying dealer: Customer Name: Customer Address: Postcode: Daytime Tel: Mobile Tel: Model Name: Model Number:... -
Page 19: Warranty Information
Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 19 Warranty Information With the aim of constantly door seals, vermiculite panels, improving our products, all baffle plates and ashpan runners. modifications considered This 10 year warranty is only necessary may be made without applicable when the stove is notice. - Page 20 Tenbury T400 install manual NEW 2020-0320-7 16/03/2020 14:05 Page 20 ACR Heat Products Limited, Unit 1, Weston Works, Weston Lane, Tyseley Birmingham B11 3RP, England. • Tel: 0121 706 8266 • E-mail: enquiries@acrheatproducts.co.uk • www.acrheatproducts.co.uk...
Need help?
Do you have a question about the Tenbury T400ECO and is the answer not in the manual?
Questions and answers
Can the flue be connected on the ACR tenbury t 400 without dismantling my fireplace or chimney breast
Yes, the flue can be connected to the ACR Tenbury T400ECO without dismantling the fireplace or chimney breast, as the flue system must allow cleaning of the entire length without removal of the appliance.
