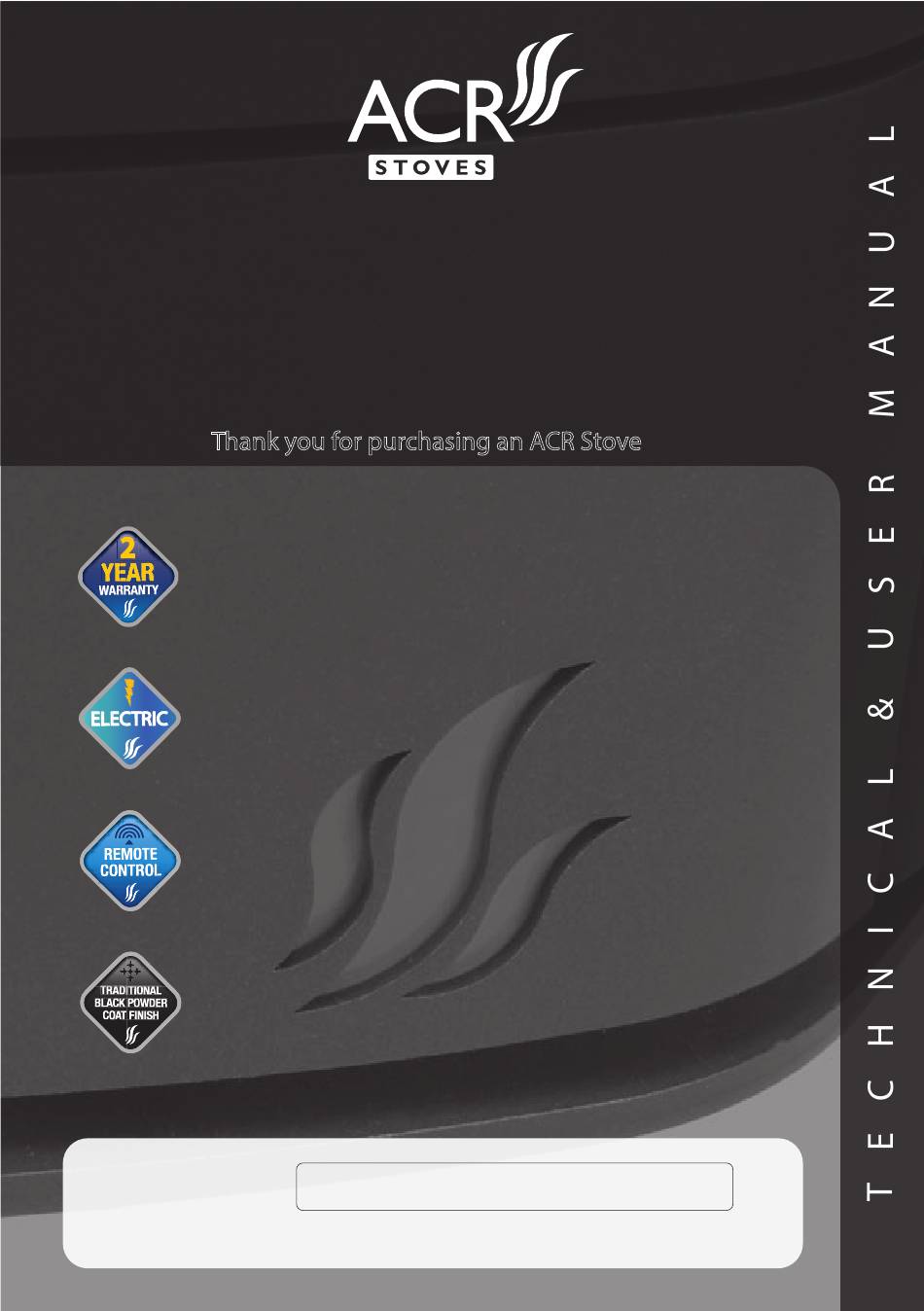

- Page 1 Malvern Electric E-MAL1 Astwood Electric E-AW1 NEO Electric E-NEO To be retained by the user for future reference Thank you for purchasing an ACR Stove Serial Number: Document ACR ELEC- Version 1 Date 05/04/18...
- Page 2 Important! To ensure that you gain the most from your purchase, please take a few minutes to read through this manual before using the appliance for the rst time. Packing Check List: 1 x Electric Stove 1 x Pack of Logs 1 x Remote Control Handset 1 x Pack of Embers/Ice 2 x AAA Batteries...
- Page 3 Operating Instructions The Clean Air Act 1993 and Smoke Control Areas that appliances used to burn solid fuel Under the Clean Air Act local authorities It is important these instructions are read carefully before in those areas (other than "authorised" may declare the whole or part of the making any attempt to use the appliance and that they fuels) have been exempted by an Order...
- Page 4 Operating Instructions It is important these instructions are read carefully before making any attempt to use the appliance and that they are retained for future use. • When the stove is not in use it should be switched o at the mains supply. Never leave the appliance unattended when it is in use.
-
Page 5: Installation Instructions
Installation Instructions This stove must be installed by a competent person. Location • The stove must have a minimum clearance of 50mm to combustible material on all sides of the appliance. • The stove should be installed onto a non-combustible hearth base which is required to be capable of withstanding temperatures of up to 90 degrees. - Page 6 Installation Instructions This stove must be installed by a competent person. • The stove must not be modi ed from the manufacturer’s speci cation in any way and the appliance must only be used for the purpose recommended by the manufacturer. •...
- Page 7 Suggested Log Layout - Malvern 1. Place the 4 large logs in the base of the stove as per picture 1. 2. Place the medium logs at the side of the rebed as per picture 2. 3. Add the crystals to the base of the rebed in between the logs then lay...
- Page 8 Suggested Log Layout - Astwood 1. Place the 5 large logs in the base of the stove as per picture 1. 2. Place the 2 large curved logs on top of the rebed as per picture 2. 3. Add the crystals to the base of the rebed in between the logs then lay...
- Page 9 Suggested Log Layout - Neo 1. Place the 6 large logs in the base of the stove as per picture 1. 2. Place the remaining large logs on the rebed as per picture 2. 3. Add the crystals to the base of the rebed in between the logs then lay the smaller logs on...
- Page 10 Dimensions Malvern 465mm 331mm Astwood 543mm 334mm...
- Page 11 Dimensions 490mm 390mm Height Width Depth Malvern 549mm 465mm 331mm 602mm 543mm 334mm Astwood 786mm 490mm 390mm Thermal Safety Cutout A thermal cut out device is tted to this appliance which will switch o the heater if overheating occurs. If this should happen check the air inlets/outlets for obstructions and clear if required.
-
Page 12: Manual Controls
Manual Controls ON/OFF switch on base of stove at the right hand side Standby ON/OFF STANDBY Flame Setting High Flame Medium Flame FLAME Low Flame Smoulder Heater High HEATER Blue Flame ON/OFF BLUE Operating Instructions • Plug the stove into the power •... -
Page 13: Remote Controls
Remote Controls To insert the batteries (2xAAA) slide the With the smart remote sliding door door completely down, insert the closed the basic remote function batteries and slide the door back up controls the re in the same way as into the original position. - Page 14 Controls THERMOSTAT UP/DOWN temperature. For manual control, make sure you have set your room temperature. SYNC Starts to synchronize the time TIMER Start timer set CHECK Check setting timer and time zone ADAPTIVE Switch adaptive function on/o SELECT Select and con rm hour/minute/day setting during sync and timer CANCEL Cancel sync or timer setting...
-
Page 15: Control Details
Control Details Details • User should synchronize the time • Then select the day(s) to use the zone rst, otherwise the timer will setting 1, 2 or 3. not function. • A maximum of three periods each • Next set the timer periods. Can day can be selected. - Page 16 Set up To set up to 3 programmable timer settings Press the TIMER button. To set the rst time period press the SELECT button to enter the TIMER 1 setting. The hour cursor will be blinking, use the time arrow to nd the time required and press SELECT button to con rm. Repeat this for the minutes setting and followed by the required days setting.
- Page 17 Set up An example of how to program the timer function is shown below First time setting Day 1 Press TIME Button Press SELECT button ON Hour will blink. Use the Up/Down Arrows to choose the required hour then press the SELECT button. Minute will blink. Use the Up/Down arrows to choose the required minutes then press the SELECT button.
-
Page 18: Technical Speci Cation
Set up An example of how to program the timer function is shown below Third time setting Day 1 Press the TIME button several times, to time 3 on the display. Press SELECT button Hour will blink. Use the Up/Down Arrows to choose the required hour then press the SELECT button Minute will blink. -
Page 19: Maintenance Instructions
Maintenance Instructions Cleaning the stove Switch o the power to the stove and remove plug from socket. Allow the appliance to cool before cleaning. Use a soft, damp (not wet) cloth. Household glass cleaner can be used on the glass door and the inner glass fascia. - Page 20 ACR Heat Products Limited, Unit 1, Weston Works, Weston Lane, Tyseley, Birmingham, B11 3RP, England Tel: 0121 706 8266 Fax: 0121 706 9182 Email: enquiries@acrheatproducts.co.uk www.acrheatproducts.co.uk...
