curt 13264 Manual

13264
5/1/2020
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH:
WARNING: *** DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY. ***
FOR MORE INFORMATION LOG ONTO WWW.CURTMFG.COM & FOR HELPFUL TOWING TIPS LOG ONTO WWW.HITCHINFO.COM
Parts List
ITEM QTY PART NUMBER
1 2 1_2 x 30 FISHWIRE 1/2" x 30" FISHWIRE
2 4 10-10277 HHCS,M12x1.25,40CL10.9,YZ
3 4 30-00149 WASHER,S-CON,1/2,YZ
4 2 20-00062 NUT, SER-FLANGE,1/2-13 UNC,GRD8,YZ
5 2 10-10272
BOLT,CAR,1/2-13 UNC,1-3/4,GRD8,YZ
6 2 CM-SP19 .250 x 1.25 x 3.00" SQUARE HOLE SPACER
TOOLS REQUIRED
RATCHET
TORQUE WRENCH
19mm SOCKET
3/4" SOCKET
10" SOCKET EXTENSION
3. ROTATE BOLT AND SPACER
THROUGH MOUNTING HOLE
BUMPER BEAM
HITCH WEIGHT: 34 LBS.
INSTALL TIME
20
PROFESSIONAL: MINUTES
NOVICE (DIY): 40 MINUTES
INSTALL NOTES:
-NO DRILLING REQUIRED
-FISHWIRE HARDWARE
-CLEAN WELDNUTS
INSTALLATION STEPS
1. Fishwire (2) 1/2" carriage bolts and (2) CM-SP19 spacers through ends of bumper beam and out mounting
holes as shown. (See BUMPER BEAM FISHWIRE DIAGRAM)
2. Raise hitch into position between bumper mount plates and align slots in hitch with existing vehicle weldnuts in the
frame rails.
Install (4) M12-1.25 hex bolts and (4) 1/2" conical toothed washers into existing weldnuts, as shown.
3. Install (2) 1/2"-13 hex flange nuts on to carriage bolts.
4. Torque M12 fasteners to 86 lb-ft and 1/2" fasteners to 110 lb-ft.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
Scan
for more
information
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
TOYOTA TACOMA
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT 1-877-287-8634
DESCRIPTION
DRIVER SIDE
FRAME RAIL
BUMPER MOUNT PLATE
(BOTH SIDES)
5
6
MOUNTING HOLE
1

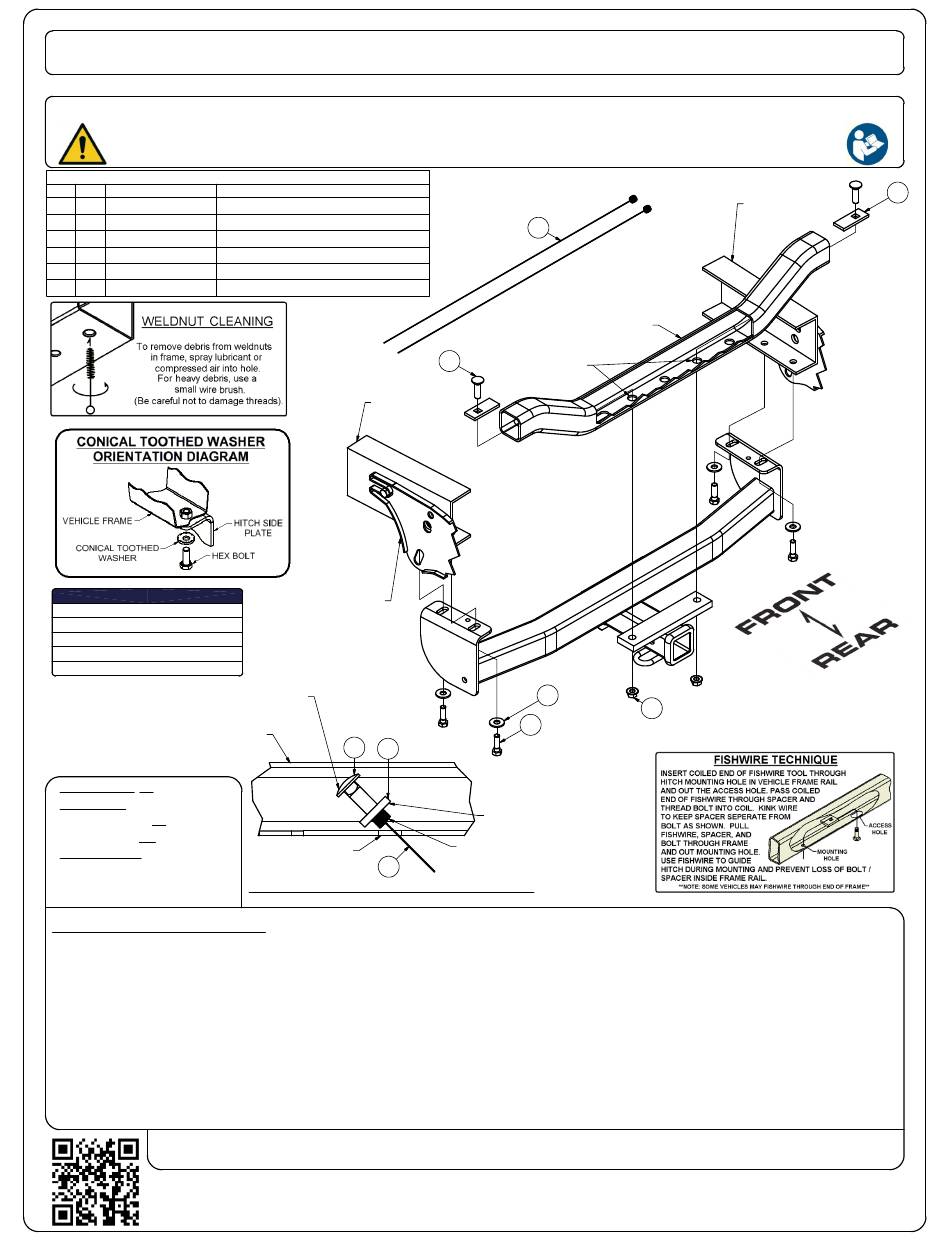

BUMPER BEAM FISHWIRE DIAGRAM
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser.
If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid,
with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT Manufacturing LLC.'s liability is limited to
repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
6000 LBS. TRAILER WEIGHT &
LBS. TRAILER WEIGHT &
8000
1
BUMPER BEAM
5
EXISTING HOLES
3
2
1. PUSH SPACER UP
2. PULL BOLT PARTIALLY
THROUGH SPACER
900 LBS. TONGUE WEIGHT.
LBS. TONGUE WEIGHT
900
PASSENGER SIDE
FRAME RAIL
4
6
